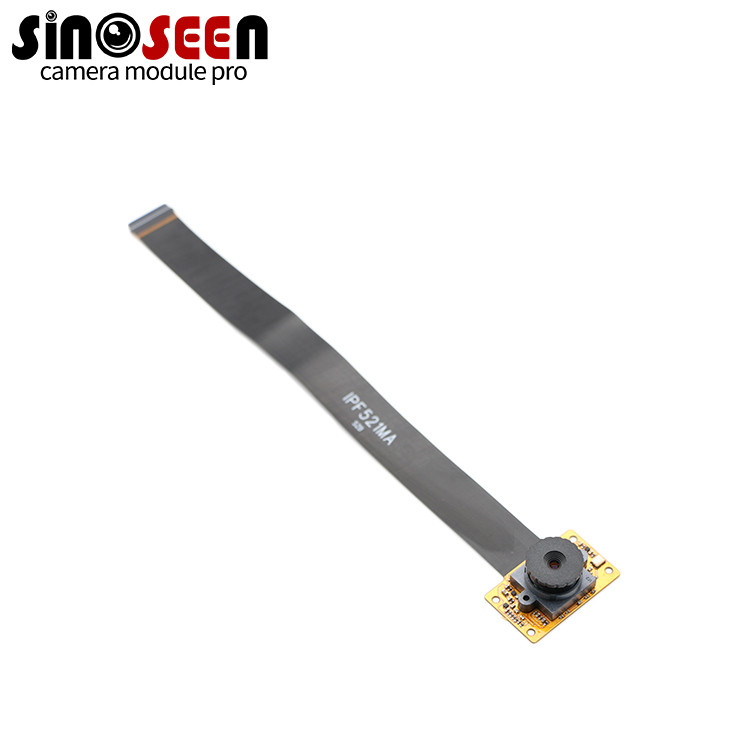

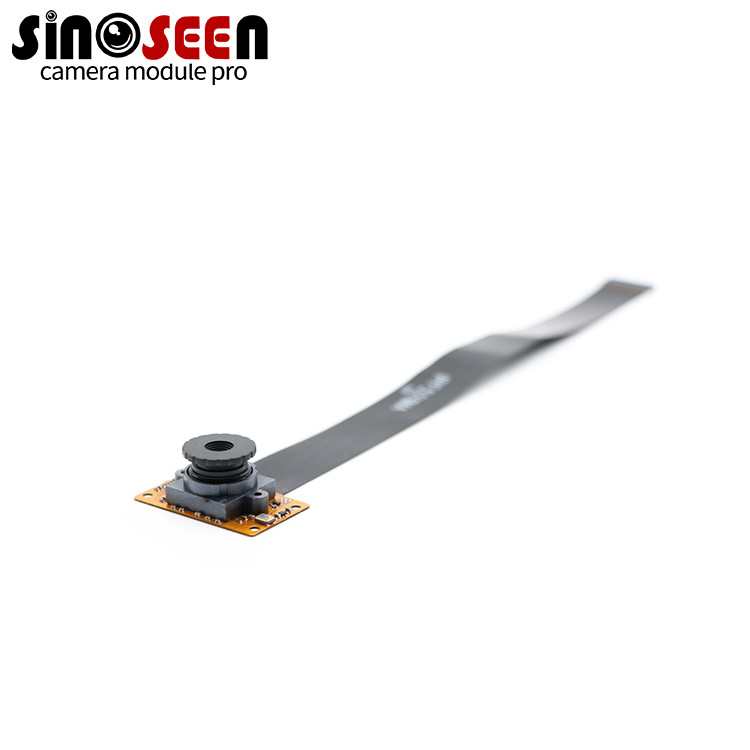

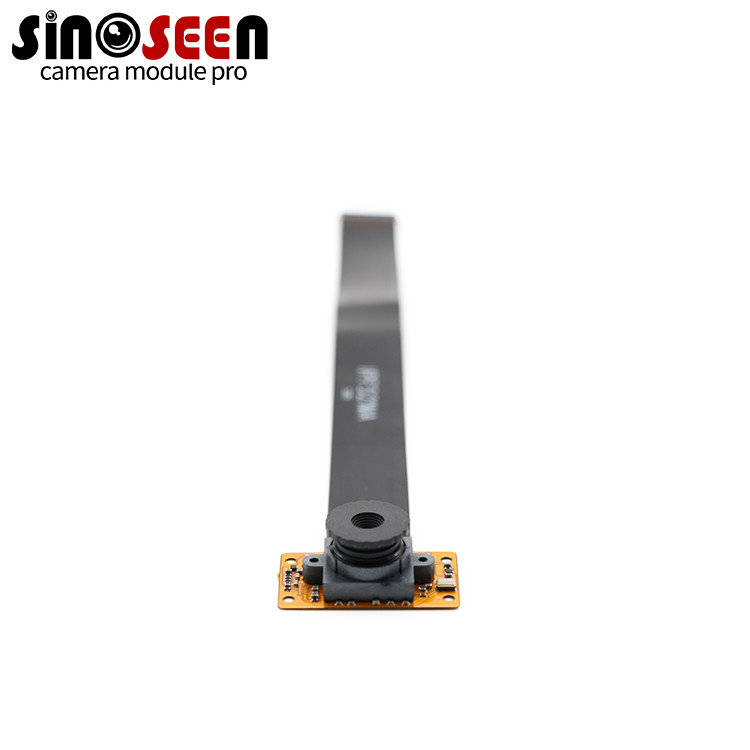

AR0521 Sensor 5MP MIPI Camera Module With 2592x1944 Resolution For Detailed Imaging
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS51734-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 5mp Camera Module | Sensor: | 1/5 Inch |
|---|---|---|---|
| Resolution: | 5MP 2592(H) X 1944(V) | Dimensions: | (customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | Mipi Camera Module | Feature: | High-definition |
| High Light: | 5MP MIPI Camera Module,AR0521 Sensor MIPI Camera Module,2592x1944 5MP Camera Module |
||
Product Description
AR0521 Sensor 5MP MIPI Camera Module With 2592x1944 Resolution For Detailed Imaging
5MP mipi interface camera module
The AR0521 sensor on this module is a 5-megapixel (5MP) image sensor with high dynamic range (HDR) capabilities. The resolution is 2592x1944 pixels, providing detailed, clear images. The HDR feature enables the sensor to capture a wider range of light intensities, improving image quality and enhancing detail in both bright and dark areas. The camera module's 2592x1944 resolution captures high-resolution images with excellent clarity. It is suitable for applications requiring detailed imaging such as industrial inspection, machine vision, robotics and surveillance.
| Model No |
SNS51734-V1.0 |
| Sensor | 1/5’’ inch |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.2µm x 1.2µm |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 72 dB @ 8x gain |
| Sensitivity | 690mV / lux-sec |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
| Lens | TTL: 23.89MM |
| Lens Size: 1/3 inch | |
| DFOV: 80° | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | mipi |
| Power consumption | DC 5V, 200mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
