2MP MIPI Camera Module With Full HD 1080P Video Recording At 30 Frames Per Second
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | WD-CK-37P-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Camera Module | Sensor: | 1/3" |
|---|---|---|---|
| Resolution: | H1928*V1088 | Dimensions: | (customizable) |
| Lens FOV: | 180°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Variable Speed Shutter |
| Highlight: | 2MP MIPI Camera Module,Full HD 1080P MIPI Camera Module,180 degree 2MP Camera Module |
||
Product Description
2MP MIPI Camera Module With Full HD 1080P Video Recording At 30 Frames Per Second
Product Overview

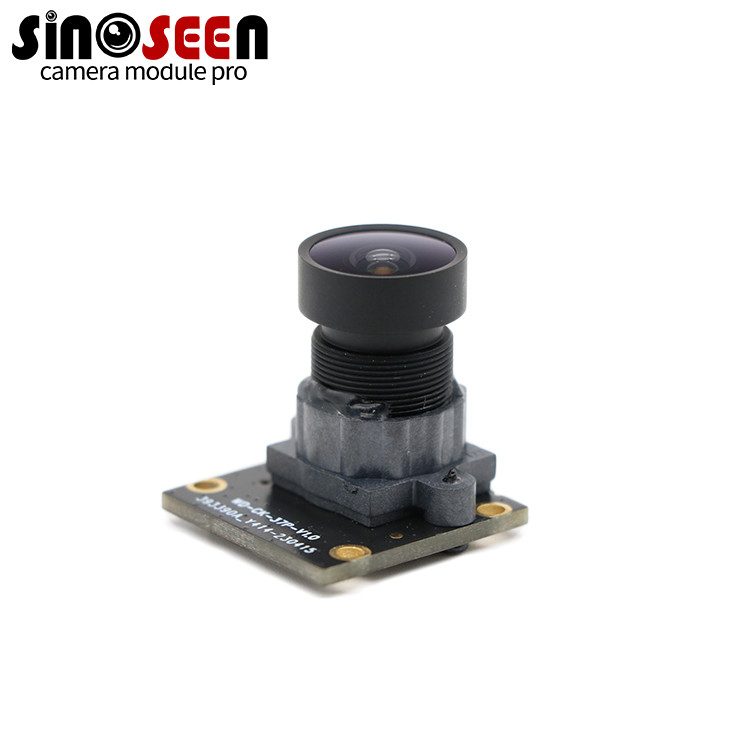

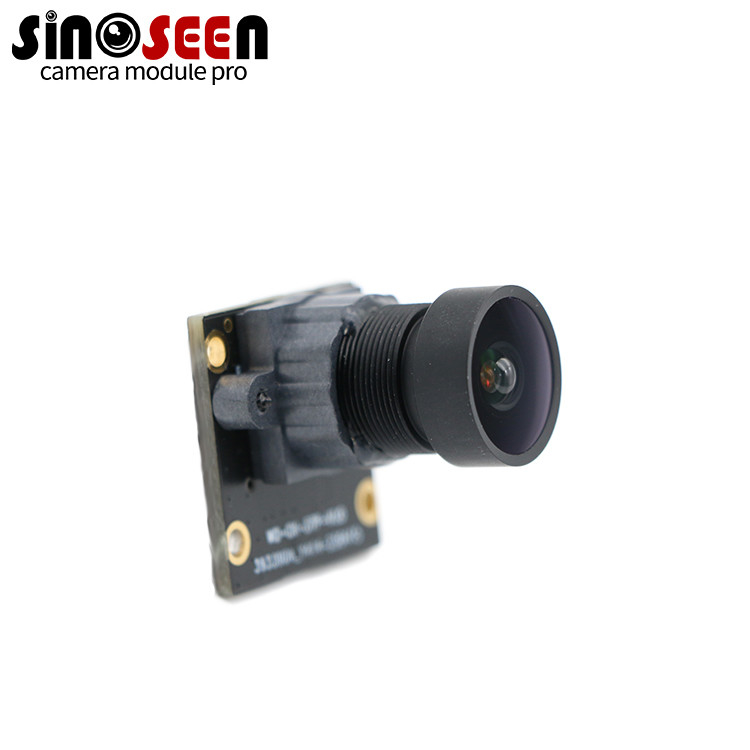

This 2MP CMOS 1080P MIPI camera module features an OV2311 sensor, delivering Full HD 1080p video recording at 30 frames per second for smooth, detailed video capture. The module utilizes the MIPI CSI-2 interface for compatibility with various single-board computers (SBCs) and embedded systems, and includes an M12 lens mount for flexible lens options.
Key Features
- Full HD 1080p resolution at 30fps
- MIPI CSI-2 interface for broad compatibility
- M12 lens mount for lens flexibility
- Built-in microphone for audio capture
- Support for multiple operating systems
- Compact and efficient design
Technical Specifications
| Specification | Details |
|---|---|
| Sensor | 1/3" |
| Effective Pixels | H1928*V1088 |
| Pixel Size | 2.7μm x 2.7μm |
| Compression Format | MJPG / YUY2 |
| Shutter Type | Electronic rolling shutter |
| Focus Type | Fixed focus |
| Interface Type | MIPI |
| Adjustable Parameters | Brightness, Contrast, Color saturation, Hue, Definition, Gamma, White balance, Exposure |
| Lens | Focal length: 3.6mm, FOV:D180° H180°V180°F/N(2.0), Thread Size: M12*P0.5 |
| Audio | Built-in microphone |
| Power Supply | USB BUS POWER (DC 5V, 200mA) |
| Operating Temperature | 0～60℃ |
| Storage Temperature | -20～80℃ |
| Supported OS | Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+ |
Shenzhen Sinoseen Technology Co.,Ltd
As one of China's top 10 camera module manufacturers, we specialize in customizing USB, MIPI, and DVP camera modules to meet specific requirements.
Available USB Camera Solutions
0.3MP Solutions
- Low cost: BF3703, BF2103, GC0329, GC0309, GC0307, GC032A, OV7675
- Big size: GC0308(1/6.5"), GC0328(1/6.5"), GC0403(1/3"-0.4MP), BF3A03(1/6.5")
- Global shutter: OV7251 (1/7.5",B/W)
- High frame rate: 200FPS SC031GS(1/6",B/W)
- Big size with high frame rate: OV7725(1/4",60FPS), OV7740(1/5",60FPS)
1MP Solutions
- Low cost: GC1024, GC1034, GC1064(H264), H42, H62, SP1405, OV9712, OV9732, NT99141, SC1245, OV9760
- Small size for endoscope: OV9734, GC1009, HM1091
- Global shutter: OV9281(1/4",B/W), OV9782(1/4",color), AR0144(1/4",color), AR0135(1/3",color)
- Big size (30FPS): AR0130(1/3",B/W), OV10635(1/2.7",color,WDR,960P), H65(1/3",color,960P)
2MP Solutions
- Normal(10FPS): GC2145(1/5"), BF2206(1/5"), GC2335, OV2643, HM2056, BF3925, OV2755(1/5" HD)
- 1080P low cost: F23, F37, F35, SP2305, GC2053, GC2023, AR0330(300W), SC2232H, C2390, IMX322, C2395, SC2315, AR0237
- 1080P small size (30FPS): OV2732(1/4"), OV2740(1/4"), OV2722(1/6"), SC2145(1/4"), HM2160(1/6")
- 1080P@60FPS: OV2710, HM2131, IMX307, C2395, SC2315, F35, SC2310
- 1080P-HDR (30FPS): OV2735, OV2718, PS5268, IMX307
- 1080P-WDR (30FPS): AR0230, AR0331(300W)
- 1080P-Starvis (30FPS): IMX291, IMX307, IMX323, IM290
- 1080P big size: IMX385
- 1080P global shutter: OG02B10(color), OG02B1B(B/W)
Higher Resolution Solutions
- 5MP: Various options including OV5648, GC5025, OV5640, OV5693 (up to 30FPS)
- 8MP: IMX219(1/4"), S5K3H7, IMX179, C8390
- 13MP-16MP: IMX214(13M), IMX258(13M), IMMX298(16M)
- USB3.0 Solutions: IMX335, OV5648, IMX179, IMX307, PS5268
- H264 Solutions: Various models including GC1064, OV2710, AR0130, IMX291, IMX322
