2MP OV2312 MIPI Camera Module 1600x1300 60fps Global Shutter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | CK-21854-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Camera Module | Sensor: | 1/5' OV2312 |
|---|---|---|---|
| Resolution: | 2MP 1600*1300 | Dimensions: | Customizable |
| Frame Rate: | 60FPS | Lens FOV: | 68°(optional) |
| Interface: | MIPI | Feature: | Globar Shutter |
| Highlight: | MIPI RGB-IR Camera Module,Automobile Industry Camera Module,Global Shutter Camera Module |
||
Product Description
2MP OV2312 MIPI Camera Module 1600x1300 60fps Global Shutter
Product Overview
The 2MP 1600×1300 MIPI camera module features the OV2312 RGB-IR Global Shutter CMOS sensor, delivering high-performance imaging at 60fps for automotive applications.
Key Features
- MIPI interface for easy integration with compatible processors
- Compact design for space-constrained applications
- Global shutter technology for distortion-free imaging
- High-speed performance at 60 FPS
- Versatile for mobile devices, embedded systems, and industrial applications
Technical Specifications
| Module | CK-21854-V1.0 |
|---|---|
| Sensor | OV2312 CMOS |
| Pixel | 2MP |
| Effective Pixels | 1600×1300 |
| Pixel Size | 3μm×3μm |
| Image Area | 4857.7μm×3955.9μm |
| Frame Rate | 30fps |
| Shutter Type | Global shutter |
| Focus Type | Fixed focus |
| S/N Ratio | 37.4 dB |
| Dynamic Range | 68 dB |
| Power Supply | Analog: 2.8V, Core: 1.2V, I/O: 1.8V |
| Output Interface | 2-lane MIPI serial output and DVP parallel output |
| Output Formats | 10-bit RGB-IR RAW |
| Lens Size | 1/2.9' |
| Storage Temperature | -20°C to 70°C |
| Operating Temperature | 0°C to 60°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+ |
Basic Attributes
| Type | Camera Module |
|---|---|
| Sensor | 1/5' OV2312 |
| Resolution | 2MP 1600×1300 |
| Dimensions | Customizable |
| Frame Rate | 60FPS |
| Lens FOV | 68° (optional) |
| Interface | MIPI |
| Feature | Global shutter |

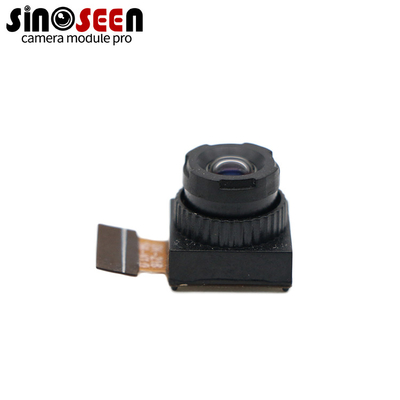

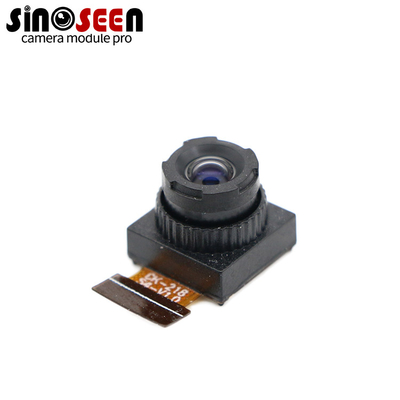

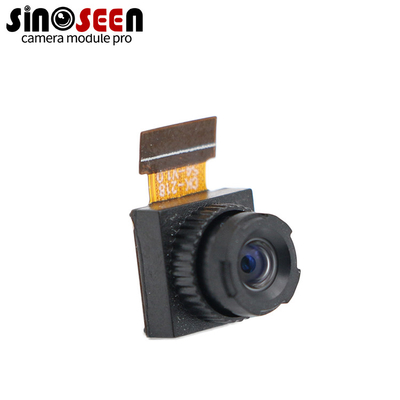

Product Images
