8MP 4K MIPI with IMX415 3840*2160 CMOS sensor camera module for Automotive Electronics Industrial Visi
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | CK-81858-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Camera Module | Sensor: | IMX415 1/2.8 Inch |
|---|---|---|---|
| Resolution: | 8MP 3840*2160 | Dimensions: | Customizable |
| Frame Rate: | 30FPS | Lens FOV: | 128°(optional) |
| Interface: | MIPI | Feature: | 4K UHD |
Product Description

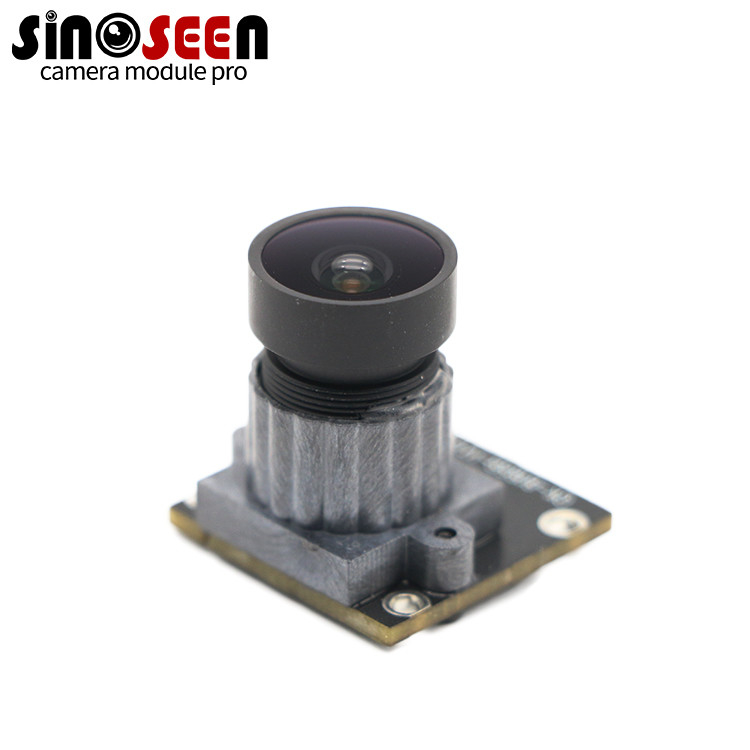

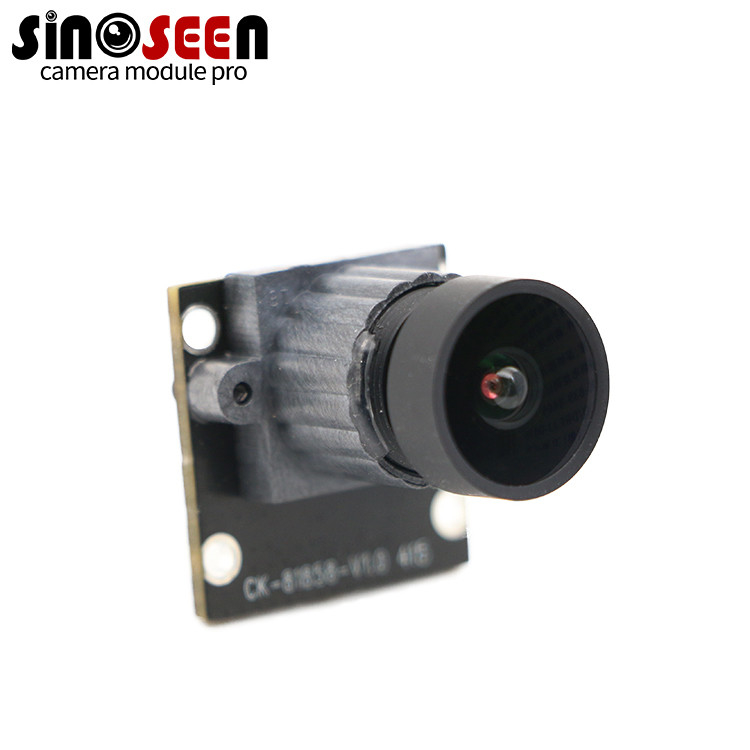

8MP 3840*2160 4K MIPI interface with IMX415 CMOS sensor compact camera module for Automotive Electronics Industrial Vision
8MP 3840*2160 MIPI camera module
The IMX415 is a high-performance CMOS image sensor from Sony. It is capable of capturing 8-megapixel images and 4K/UHD video at up to 30 frames per second (FPS).
With a resolution of 3840 x 2160 pixels, this camera module can provide 4K/UHD video quality, which is becoming increasingly popular in a wide range of applications, such as video conferencing, security systems, and multimedia devices.
The MIPI interface allows for easy integration of this camera module with compatible host processors, making it suitable for use in mobile devices, embedded systems, and other applications where a compact, high-resolution camera solution is required.
The compact design of this module is an important feature, as it enables seamless integration into space-constrained devices and systems, making it a versatile choice for various applications.
Overall, this 8MP camera module with the IMX415 CMOS sensor, 4K/UHD resolution, and MIPI interface can be a great option for projects or applications that require a compact, high-resolution imaging solution, such as in the areas of mobile devices, security systems, robotics, and advanced imaging applications.
Specification
| Module | CK-81858-V1.0 |
| Sensor | IMX415 CMOS |
| Pixel | 8MP |
| Most effective pixels | 3840*2160 |
| Pixel Size | 1.45um*1.45um |
| Frame rate | 30fps |
| Focus type | Fixed focus |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
