5MP 2592*1944 90fps Fixed focus with OV5648 CMOS sensor MIPI interface camera module for Smartphones and tablets
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS51867-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | MIPI Camera Module | Sensor: | OV5648 1/4 Inch |
---|---|---|---|
Resolution: | 5MP 2592*1944 | Dimensions: | Customizable |
Frame Rate: | 90FPS | Lens FOV: | 125°(optional) |
Interface: | MIPI | Feature: | Low Crosstalk And Low Noise |
Product Description

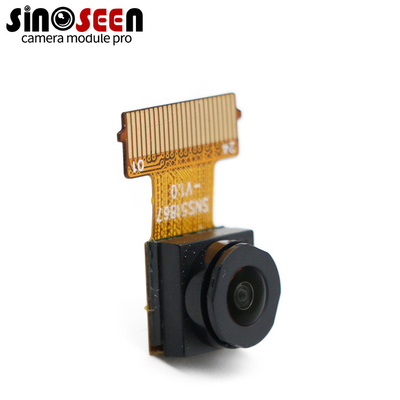

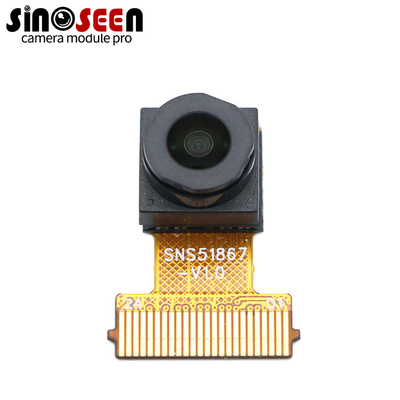

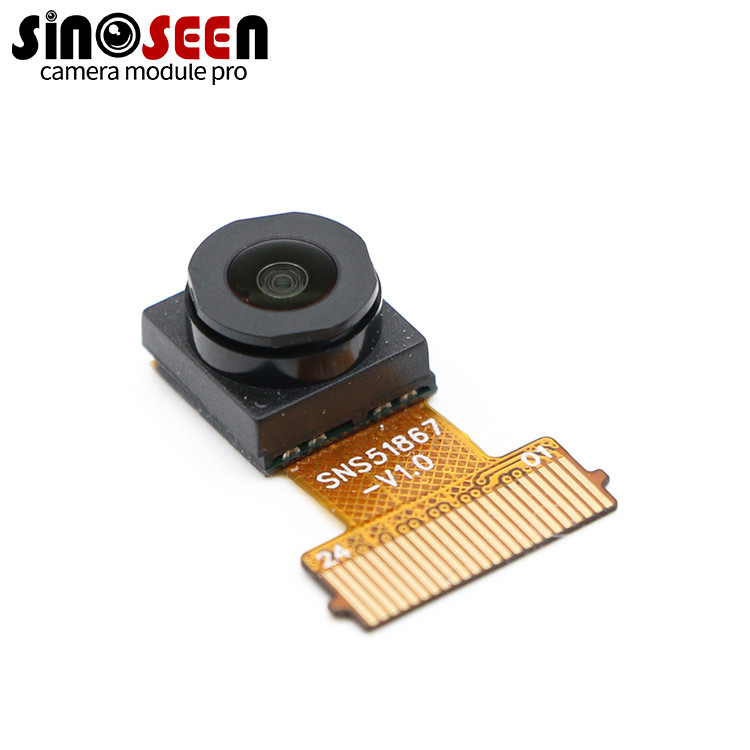

5MP 2592*1944 90fps Fixed focus with OV5648 CMOS sensor MIPI interface camera module for Smartphones and tablets
5MP 2592*1944 90fps Fixed focus camera module
This is a high-performance camera module designed for smartphones and tablets. It provides excellent image quality and advanced features for a wide range of applications.
The camera module has a resolution of 5MP, which provides clear and detailed images with a resolution of 2592*1944 pixels. It supports a high frame rate of 90fps for smooth video recording and playback. The camera module is equipped with a fixed-focus lens to ensure that the captured images are clear and in focus. The camera module uses Omnivision's OV5648 CMOS sensor. The sensor uses OmniBSI+ technology and has high performance such as high sensitivity, low crosstalk and low noise. The camera module uses the MIPI interface, which is a high-speed data transmission interface widely adopted in mobile devices. This ensures fast and efficient communication between the camera module and the smartphone or tablet.
The camera module enables high-quality photography, allowing users to capture stunning images with smartphones and tablets. With its high frame rate and excellent image quality, the camera module is ideal for recording HD videos on mobile devices. The camera module can be used in video conferencing applications to provide clear and smooth video streaming during online meetings and video calls.
Specification
Module |
SNS51867-V1.0 |
Sensor | OV5648 CMOS |
Pixel | 5MP |
Most effective pixels | 2592*1944 |
Pixel Size | 1.4um*1.4um |
Frame rate | 90fps |
Focus type | Fixed focus |
Output interface | 2-lane MIPI |
Output formats | 8/10-bit RGB RAW |
Shutter Type | Rolling shutter |
Max image transfer rate |
QSXGA:15fps 1080p:30fps 960p:45fps 720p:60fps VGA:90fps |
Max S/N ratio | 34dB |
Dynamic | TBD |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
