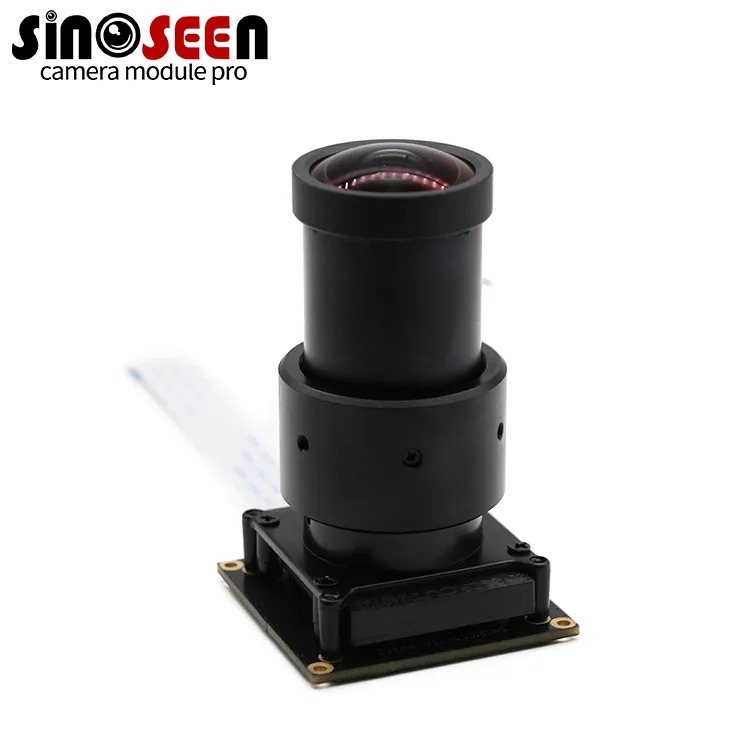

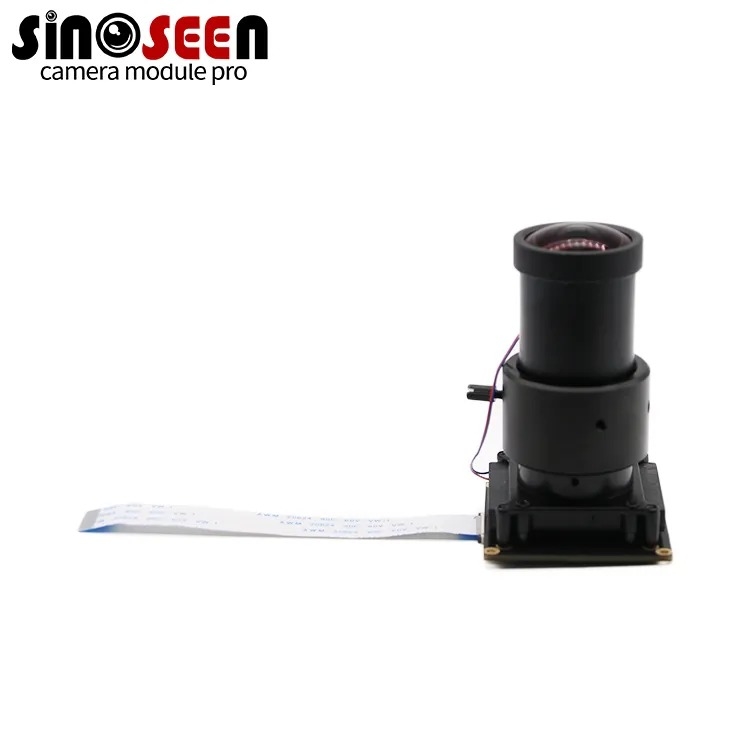

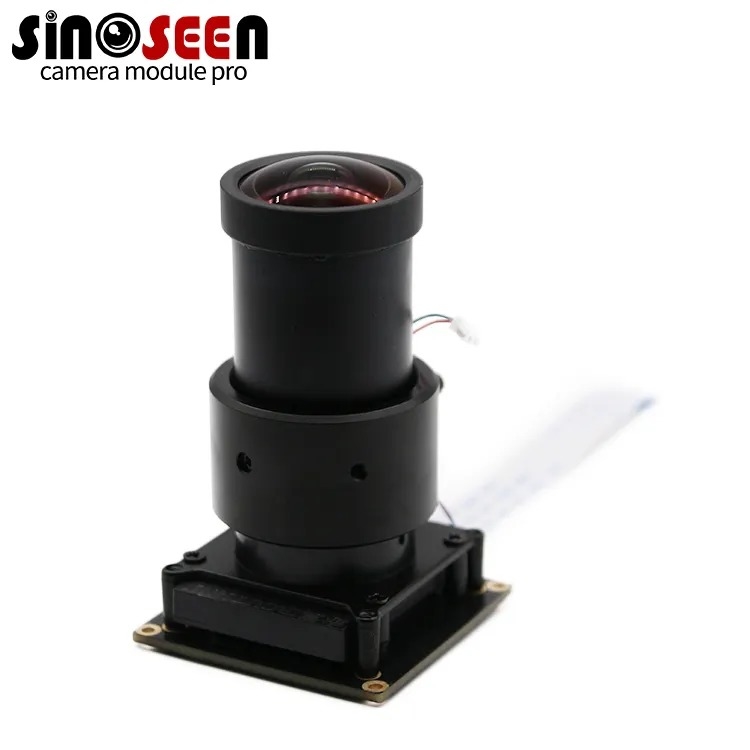

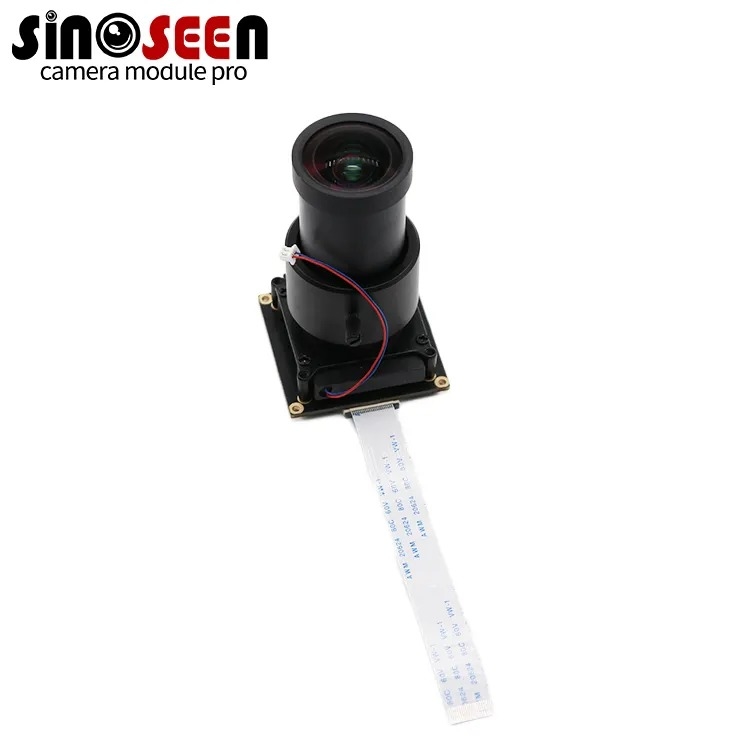

8MP Sony IMX567/568 MIPI Camera Module with Global Shutter
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | XLS-IMX567/568-8MP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | Snoy IMX567/568 CMOS |
|---|---|---|---|
| Resolution: | 8MP 2840(H)x2840(V) | Dimension: | (customizable) |
| Lens FOV: | 70°(optional) | Focus Type: | Fixed Focus |
| Highlight: | High Speed Cmos camera module,IMX567 Cmos camera module,Global Shutter Cmos camera module |
||
Product Description
8MP Starvis Sony IMX567/568 CMOS Camera Module with MIPI Global Shutter
Professional-Grade Imaging for High-Speed Applications
Sinoseen's advanced 8MP global shutter MIPI camera module (model: XLS-IMX567/568-8mp) integrates the Sony Starvis IMX567/568 CMOS sensor, delivering exceptional image capture capabilities for demanding industrial applications. The module features a unique 1:1 aspect ratio output, providing high-resolution 2840x2840 images without cropping while supporting frame rates up to 214 fps for smooth performance in high-speed scenarios.
Key Advantages
- Global Shutter Technology: Eliminates motion distortion and blur for crisp imaging of fast-moving objects
- High-Speed Performance: Up to 214 fps frame rate for smooth capture of rapid processes
- 1:1 Aspect Ratio: Full 2840x2840 resolution without image cropping
- Industrial-Grade Reliability: Operates in temperatures from -30°C to +75°C
- Flexible Integration: MIPI interface with customizable FPC length and multi-platform support
Technical Specifications
| Feature | XLS-IMX567-8MP | XLS-IMX568-8MP |
|---|---|---|
| CMOS Sensor | 1/1.8" Sony IMX567, Mono/color, 5.1 Mpixel | 1/1.8" Sony IMX568, Mono/color, 5.1 Mpixel |
| Active pixels | 2472(H)*2064(V) | 2472(H)*2064(V) |
| Pixel size | 2.74(H)*2.74(V)μm | 2.74(H)*2.74(V)μm |
| Shutter type | Global Shutter | |
| ADC Resolution | 8 Bit / 10 Bit / 12 Bit | |
| Max fps (full res, 4 lanes) | 97.0 fps at 8 Bit / 79.4 fps at 10 Bit / 67.2 fps at 12 Bit | |
| Power consumption | 210mA(@3.3V) max. when active | 180mA(@3.3V) max. when active |
| Operating temperature | -30 to +75°C, non-condensing | |
Industrial Applications
This camera module is ideal for machine vision applications requiring precision and speed, including dimensional measurements, product inspection, defect detection, 3D reconstruction, and AI visual data acquisition. Its distortion-free imaging provides reliable data for quality control and automated processes in manufacturing environments.
Supports debugging with NXP and NVIDIA platforms. Compatible with Windows, Android, and Linux operating systems. Contact our engineering team for integration support and custom solutions.
