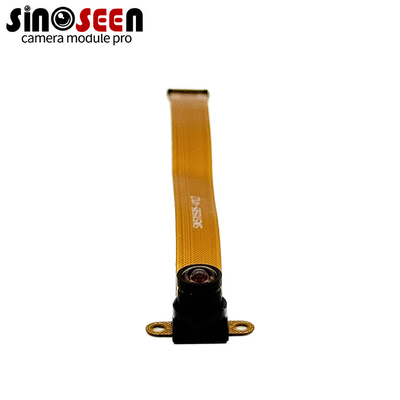

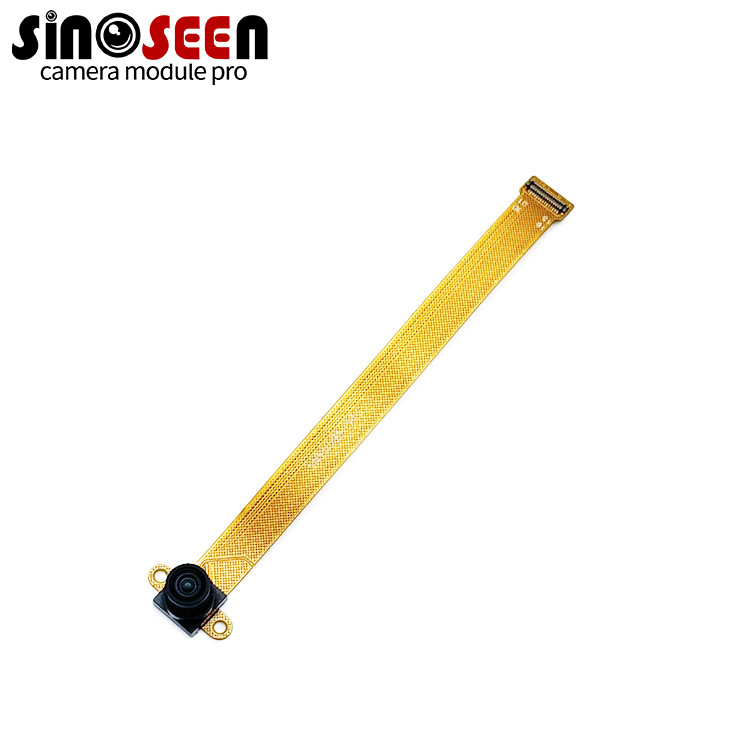

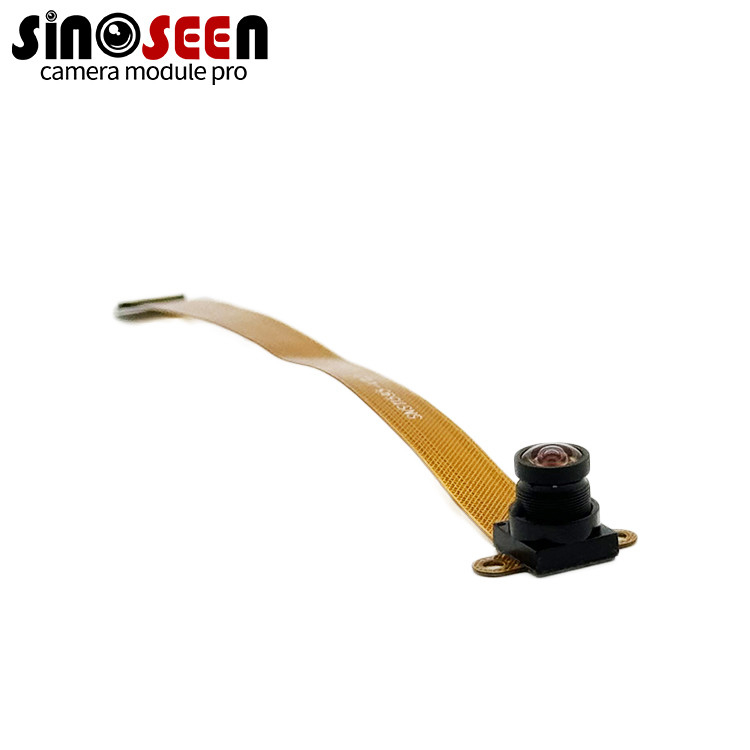

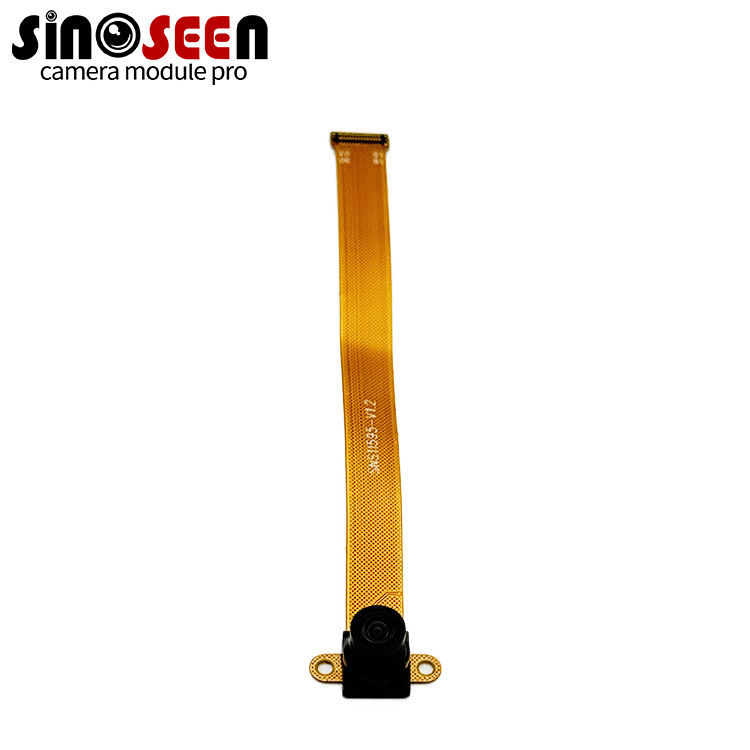

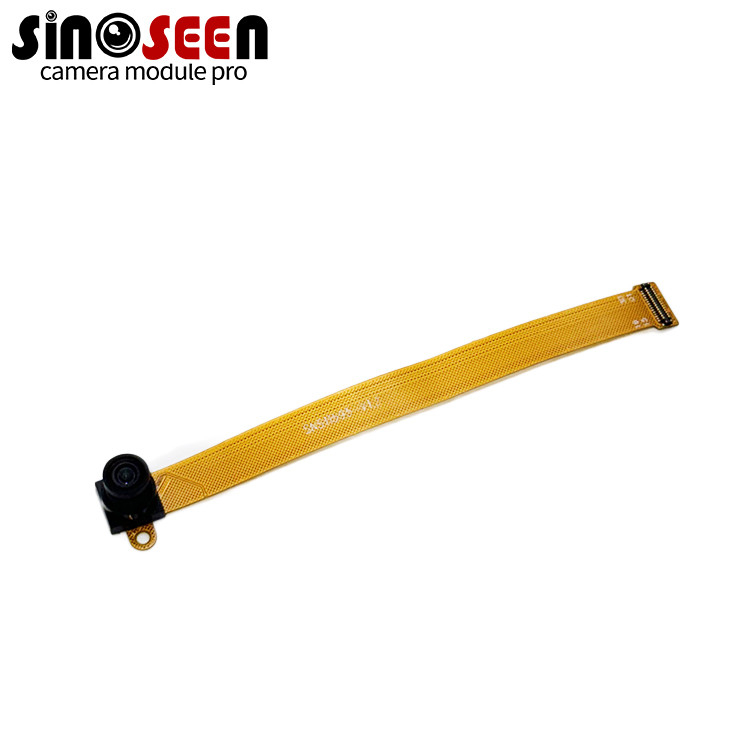

Capture Details in Low-Light Environments with the Sinoseen OV9281 Global Shutter Camera Module for Raspberry Pi
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS11595-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Dimensions: | 38mm X 38mm X 20mm | Lens Mount: | CS/M12 |
|---|---|---|---|
| Resolution: | 5MP | Distortion: | ＜1.5% |
| Application: | Outdoor, Indoor | Tv Distortion: | ＜-20% |
| Focal Length: | 2.3mm | Optical Format: | 1/2.9 |
| Free Drive: | UVC | Pixel: | 1MP Color Global Exposure Camera Module |
| Imaging Distance: | 1CM~∞ | Sensor Type: | CMOS |
| Sensor Size: | 1/2.9 | Module Size: | 38mm×38mm（±1mm) |
| Weight: | 20g | ||
Product Description
| Attribute | Value |
|---|---|
| Dimensions | 38mm x 38mm x 20mm |
| Lens Mount | CS/M12 |
| Resolution | 5MP |
| Distortion | ＜1.5% |
| Application | Outdoor, Indoor |
| Tv Distortion | ＜-20% |
| Focal Length | 2.3mm |
| Optical Format | 1/2.9 |
| Free Drive | UVC |
| Pixel | 1MP Color Global Exposure Camera Module |
| Imaging Distance | 1CM~∞ |
| Sensor Type | CMOS |
| Sensor Size | 1/2.9 |
| Module Size | 38mm×38mm（±1mm) |
| Weight | 20g |
Transform your Raspberry Pi projects with the Sinoseen OV9281 Camera Module, combining speed, precision, and versatility. Featuring OmniVision's advanced OV9281 high-speed Global Shutter image sensor, this module delivers 1280 x 800 resolution at 120 frames per second, eliminating the jelly effect and temporal synchronization issues common in traditional cameras during high-speed motion capture.
With exceptional Near-Infrared (NIR) quantum efficiency and monochrome imaging capabilities, this camera excels in low-light or no-light environments, making it ideal for night surveillance and robotic navigation in challenging conditions.
- Class V2 form factor ensures full compatibility with all Raspberry Pi models
- Optimized for latest Pi software with plug-and-play functionality
- Low-latency visual data ideal for AR/VR applications and drone autonomous collision avoidance
- Perfect solution for machine vision, industrial inspection, and robotics
- Compact and lightweight design (20g) for space-constrained applications
Unlock the full potential of your Raspberry Pi with the Sinoseen OV9281, enabling you to develop cutting-edge visual solutions and explore the frontiers of technology innovation.
