Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS51867-V1.0

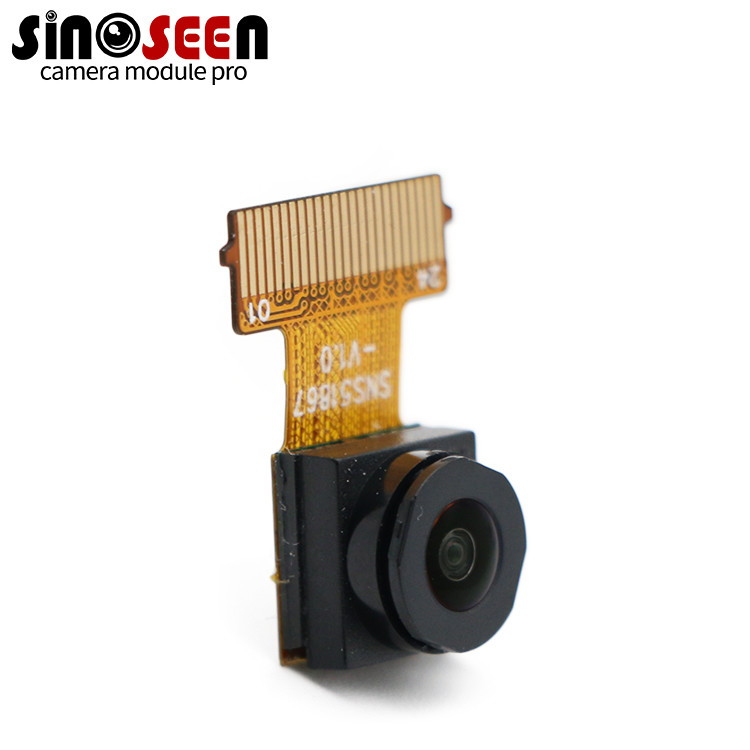

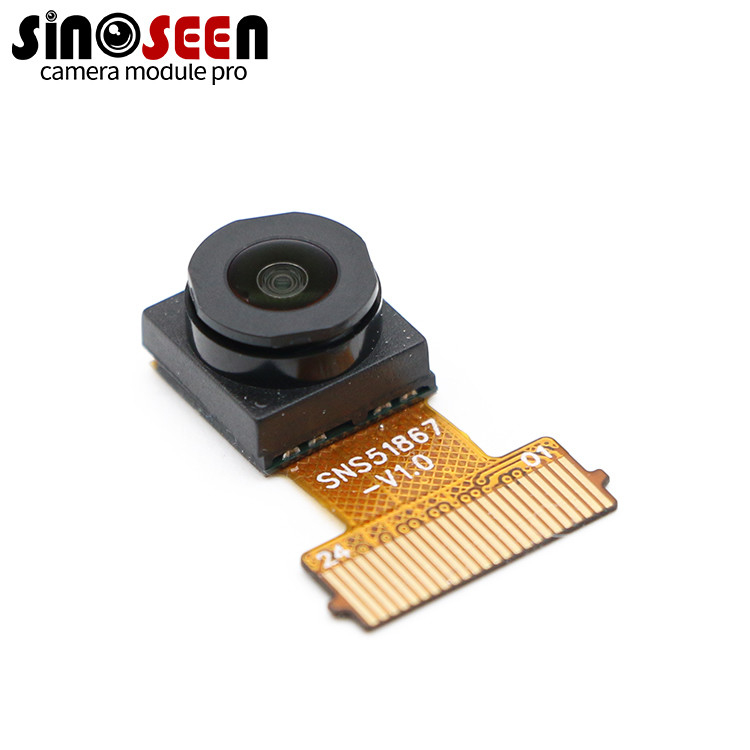

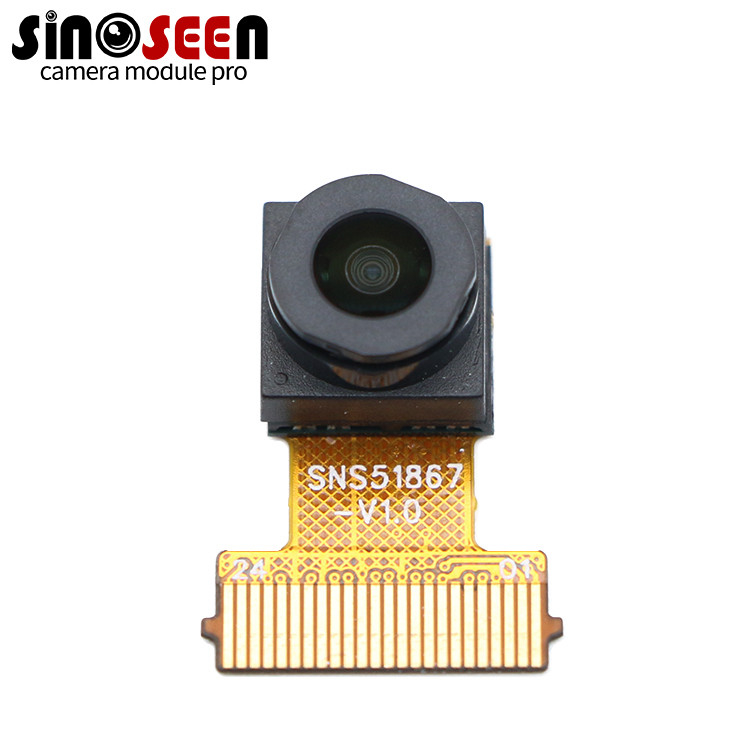

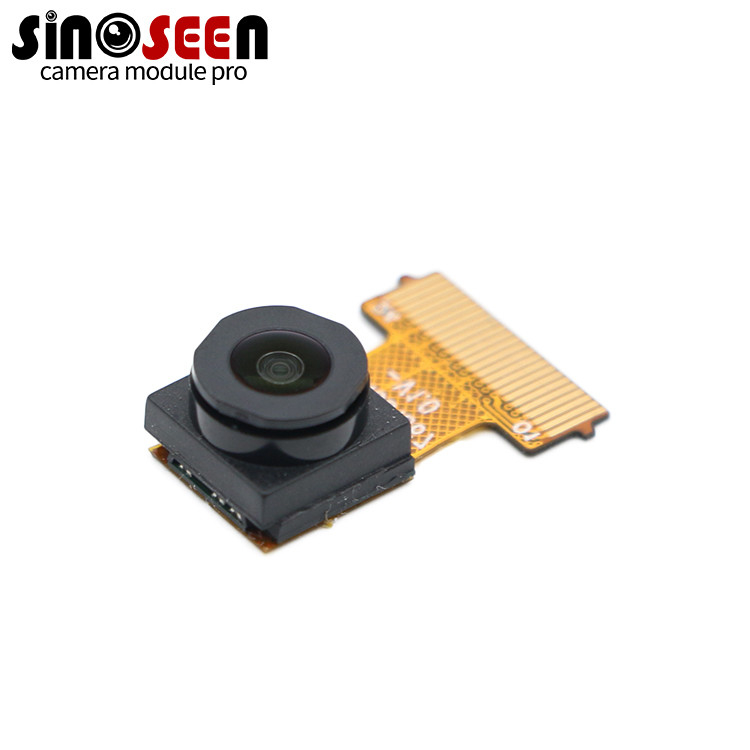

The Sinoseen SNS51867-V1.0 Camera Module delivers exceptional image quality and high-speed performance for smartphones and tablets. Featuring an OmniVision OV5648 CMOS sensor with OmniBSI+ technology, this module provides superior sensitivity and low-light performance while minimizing crosstalk and noise.
| Module | SNS51867-V1.0 |
|---|---|
| Sensor | OV5648 CMOS |
| Resolution | 5MP (2592×1944) |
| Pixel Size | 1.4μm×1.4μm |
| Frame Rate | Up to 90fps (VGA) |
| Focus Type | Fixed focus |
| Interface | 2-lane MIPI |
| Output Formats | 8/10-bit RGB RAW |
| Shutter Type | Rolling shutter |
| Operating Temperature | 0°C to 60°C |
| Supported OS | Windows, Linux, MacOS, Android 4.0+ |
This camera module delivers exceptional performance with maximum frame rates of 15fps at QSXGA, 30fps at 1080p, 45fps at 960p, 60fps at 720p, and 90fps at VGA resolution. The maximum signal-to-noise ratio reaches 34dB for clear, high-quality imaging.
Ideal for smartphones, tablets, and other mobile devices requiring high-quality imaging capabilities. Perfect for HD photography, smooth video recording, and clear video conferencing applications.
