Name: OV5648 MIPI Camera Module 5MP 90FPS for HD Video
Brand: Shenzhen Sinoseen Technology Co., Ltd
SKU: SNS51867-V1.0
Availability: InStock

Home > products > MIPI Camera Module >

OV5648 MIPI Camera Module 5MP 90FPS for HD Video

OV5648 MIPI camera module 5MP

MIPI camera module 90FPS HD video

5MP camera module with warranty

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS51867-V1.0

Request A Quote

Product Details

Type:

MIPI Camera Module

Sensor:

OV5648 1/4 Inch

Resolution:

5MP 2592*1944

Dimensions:

Customizable

Frame Rate:

90FPS

Lens FOV:

125°(optional)

Interface:

MIPI

Feature:

Low Crosstalk And Low Noise

Highlight:

OV5648 MIPI camera module 5MP

MIPI camera module 90FPS HD video

5MP camera module with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

Tray+Anti-static bag in carton box

Delivery Time

2-3weeks

Payment Terms

T/T

Supply Ability

500000 pieces/month

IMX307 1080P MIPI Camera Module 60FPS for Smart Home and Drone

Get Best Price

VB1940 MIPI Camera Module 5.1MP Global Shutter for Automotive

Get Best Price

AR2020 20MP MIPI Camera Module for Industrial Machine Vision

Get Best Price

S5K3P3SX 16MP MIPI Camera Module for Smart Home and Drones

Get Best Price

+8618075543558

sales@sinoseen.com

Contact Now

Product Description

Sinoseen OV5648 CMOS Sensor MIPI Camera Module

HD Video and High Frame Rate Performance for Mobile Devices

Experience professional-grade imaging with the Sinoseen SNS51867-V1.0 Camera Module, featuring the OmniVision OV5648 CMOS sensor. This advanced module delivers 5MP HD images (2592x1944 resolution) at an ultra-high frame rate of 90 frames per second, eliminating choppy footage and lost details when capturing fast-moving objects.

Key Features

OmniVision OV5648 CMOS sensor with 1/4" optical format
5MP resolution (2592*1944 pixels) with 1.4μm pixel size
Ultra-high frame rate up to 90FPS
MIPI interface for high-speed, stable data transmission
OmniBSI+ technology for high sensitivity and low noise
Fixed focus design for simplified operation
Excellent performance in low-light environments
Customizable dimensions to fit various device requirements

Technical Specifications

Module	SNS51867-V1.0
Sensor	OV5648 CMOS
Pixel	5MP
Effective Pixels	2592*1944
Pixel Size	1.4μm*1.4μm
Frame Rate	90fps
Focus Type	Fixed focus
Output Interface	2-lane MIPI
Output Formats	8/10-bit RGB RAW
Shutter Type	Rolling shutter
Max Image Transfer Rate	QSXGA:15fps, 1080p:30fps, 960p:45fps, 720p:60fps, VGA:90fps
Max S/N Ratio	34dB
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Supported OS	Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+

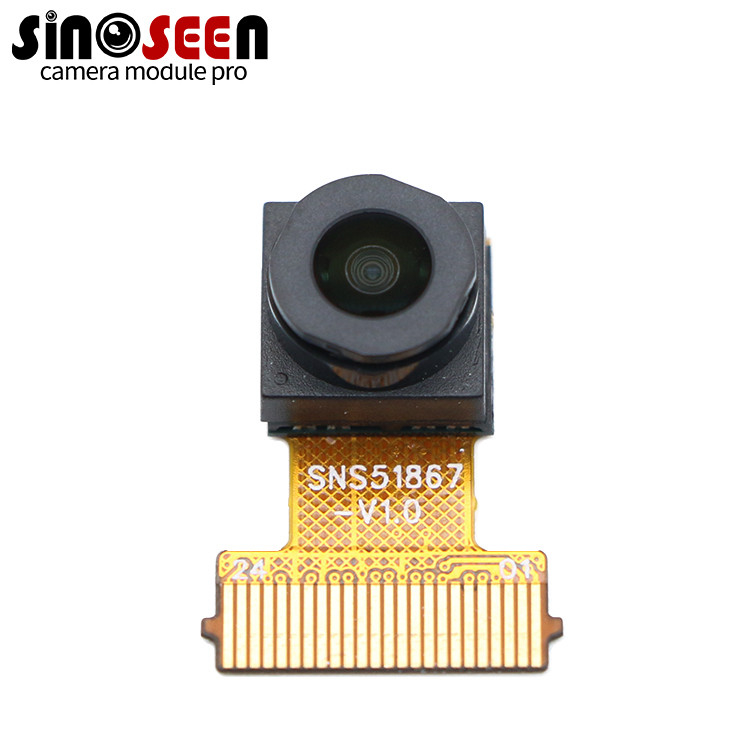

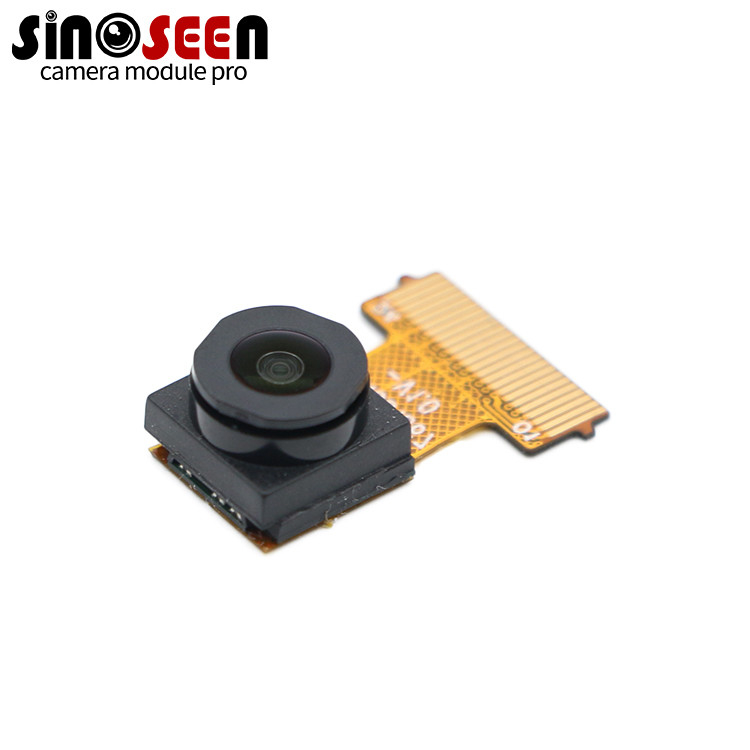

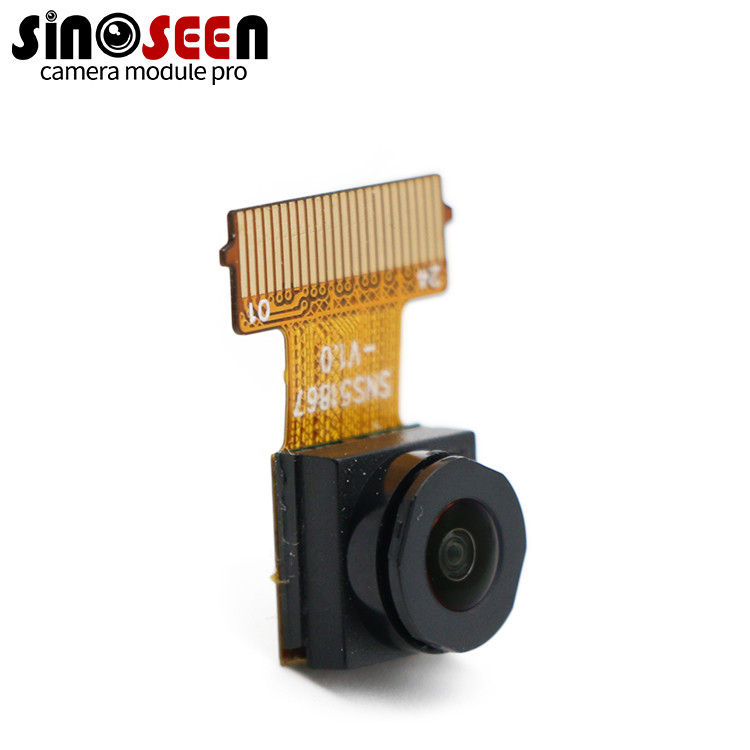

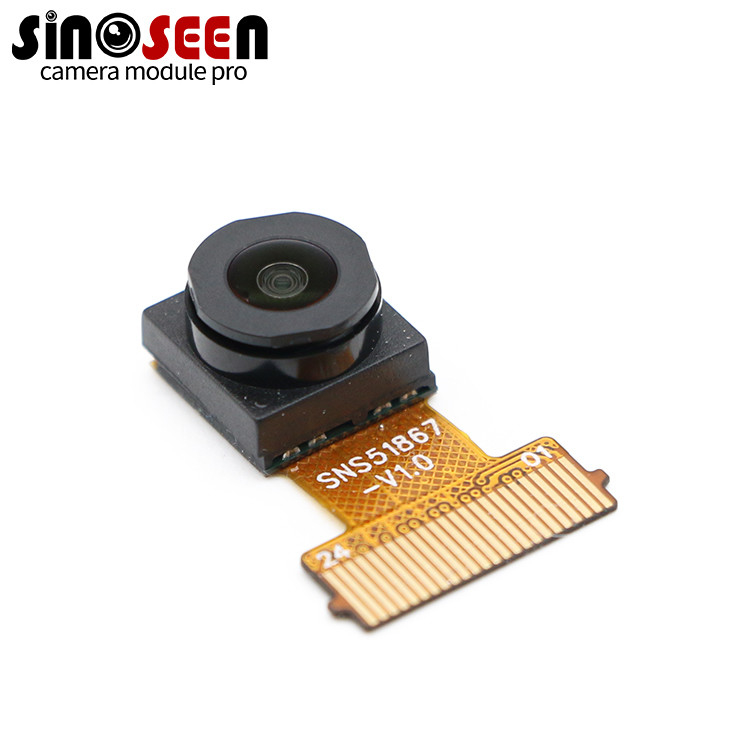

Product Images

Upgrade your mobile devices with the Sinoseen SNS51867-V1.0 Camera Module to achieve professional-grade imaging performance. Ideal for smartphones, tablets, and other mobile applications requiring high-quality video capture and fast frame rates.
