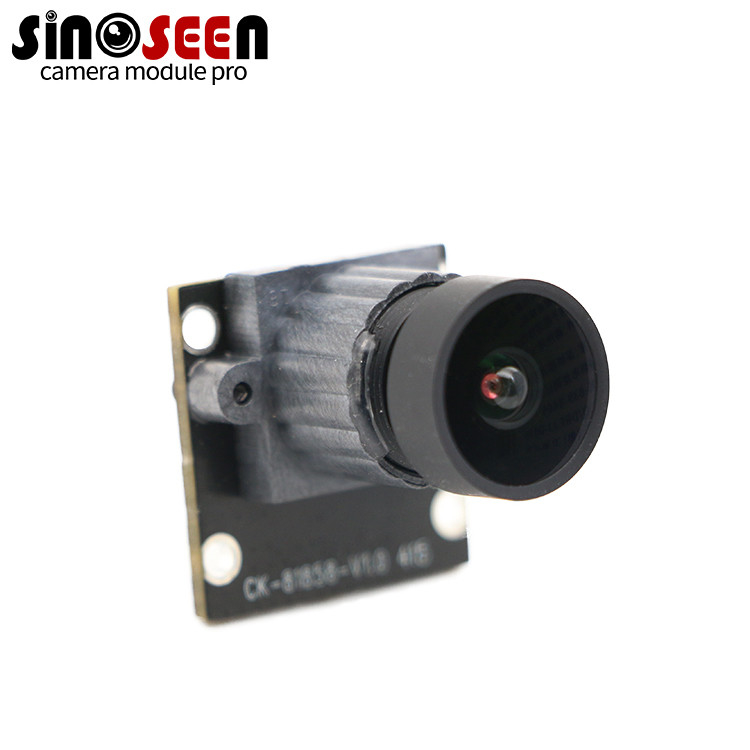

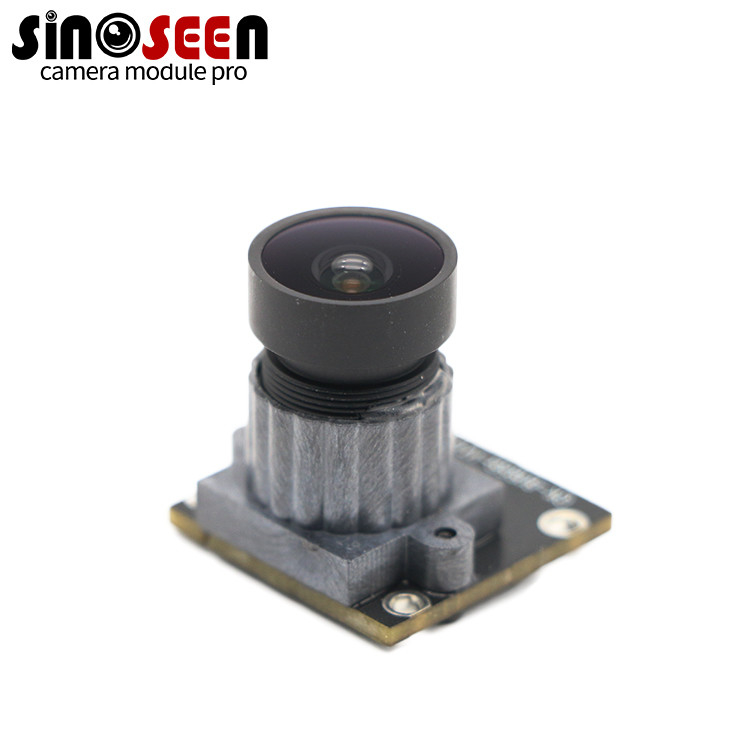

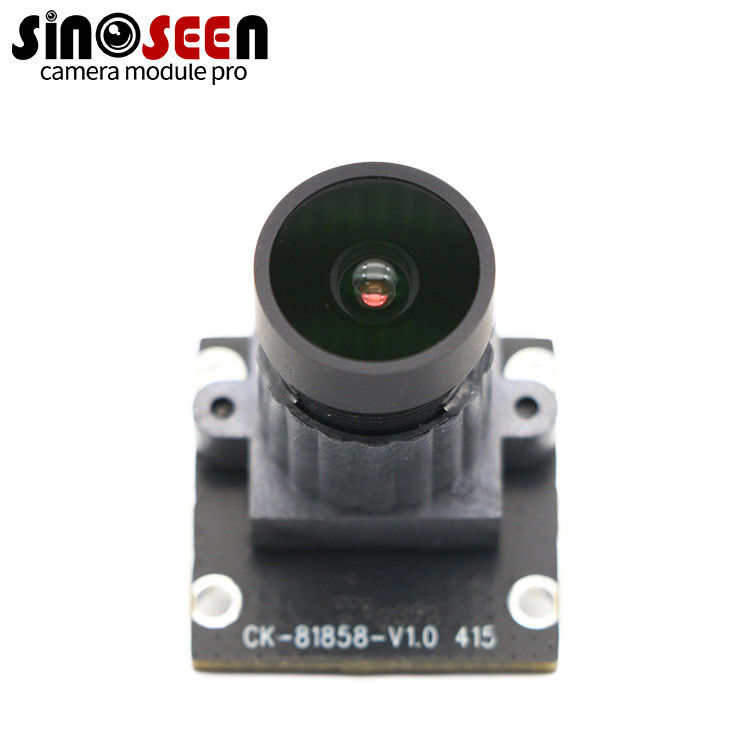

IMX415 8MP MIPI Camera Module with 4K UHD at 30FPS
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | CK-81858-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Camera Module | Sensor: | IMX415 1/2.8 Inch |
|---|---|---|---|
| Resolution: | 8MP 3840*2160 | Dimensions: | Customizable |
| Frame Rate: | 30FPS | Lens FOV: | 128°(optional) |
| Interface: | MIPI | Feature: | 4K UHD |
| Highlight: | IMX415 8MP MIPI camera module,4K UHD MIPI camera module,30FPS MIPI camera module with warranty |
||
Product Description
| Type | Camera Module |
| Sensor | IMX415 1/2.8 inch |
| Resolution | 8MP 3840*2160 |
| Dimensions | Customizable |
| Frame Rate | 30FPS |
| Lens FOV | 128°(optional) |
| Interface | MIPI |
| Feature | 4K UHD |
Designed for next-gen smart devices, this camera module uses Sony's IMX415 sensor to deliver ultra-clear 4K resolution at 30 frames per second. With a slim profile and fixed focus, it fits into tight enclosures without compromising performance.
The module is tailored for devices like digital signage, surveillance cameras, and AI edge computing where detail accuracy and compact size are essential. MIPI output ensures high-speed transmission for real-time processing.
- Sony IMX415 8MP CMOS sensor
- 4K UHD @ 30fps
- Small form factor for compact devices
- Fixed focus lens for maintenance-free performance
- Supports Windows, Linux, Android, macOS
| Module | CK-81858-V1.0 |
| Sensor | IMX415 CMOS |
| Pixel | 8MP |
| Most effective pixels | 3840*2160 |
| Pixel Size | 1.45um*1.45um |
| Frame rate | 30fps |
| Focus type | Fixed focus |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
We can customize image sensors, lens options, interface types (USB, DVP, MIPI), and even firmware settings. Our engineers help reduce your time to market with fully tailored camera module solutions.
