2MP MIPI Camera Module OV2312 Global Shutter 60FPS
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | CK-21854-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Camera Module | Sensor: | 1/5' OV2312 |
|---|---|---|---|
| Resolution: | 2MP 1600*1300 | Dimensions: | Customizable |
| Frame Rate: | 60FPS | Lens FOV: | 68°(optional) |
| Interface: | MIPI | Feature: | Globar Shutter |
| Highlight: | 2MP MIPI camera module,OV2312 global shutter camera,machine vision camera module |
||
Product Description

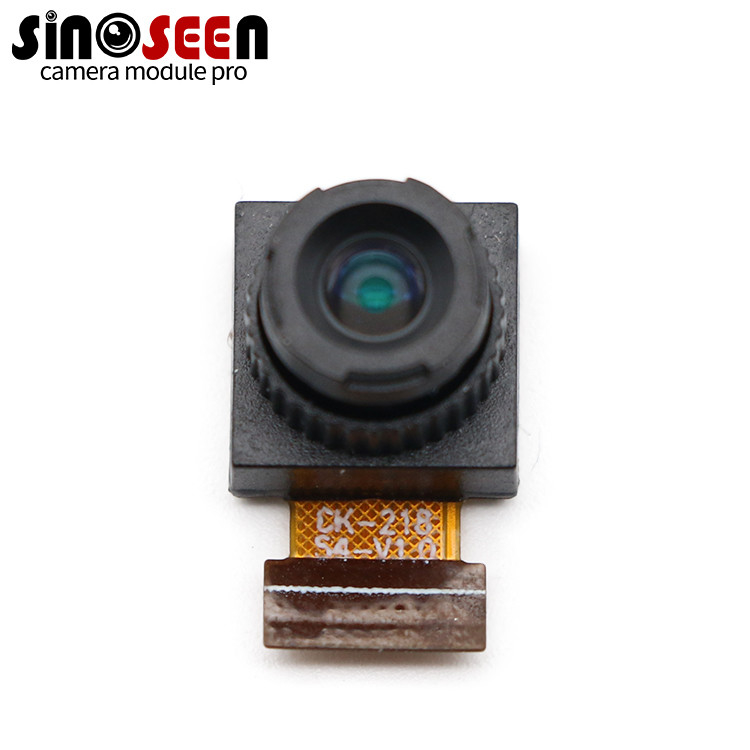

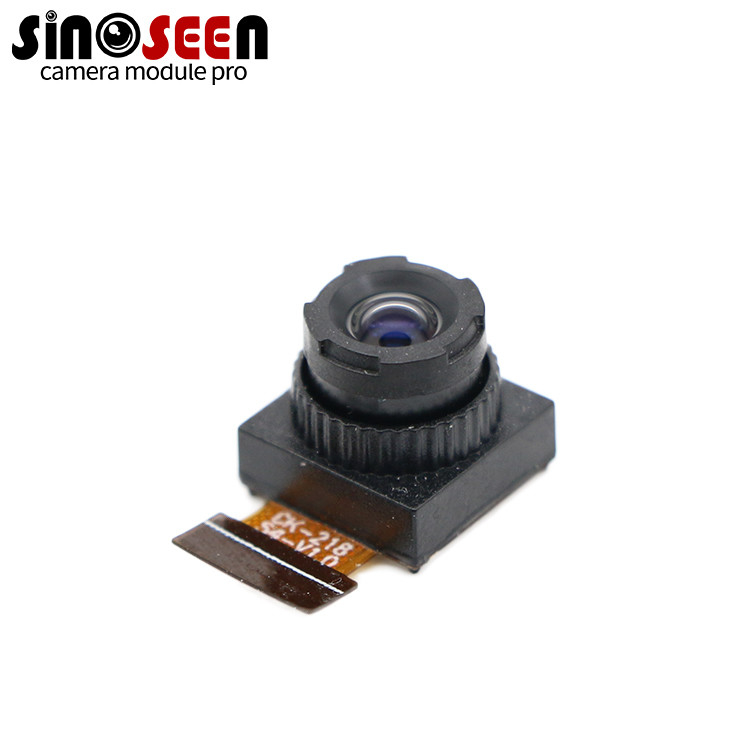

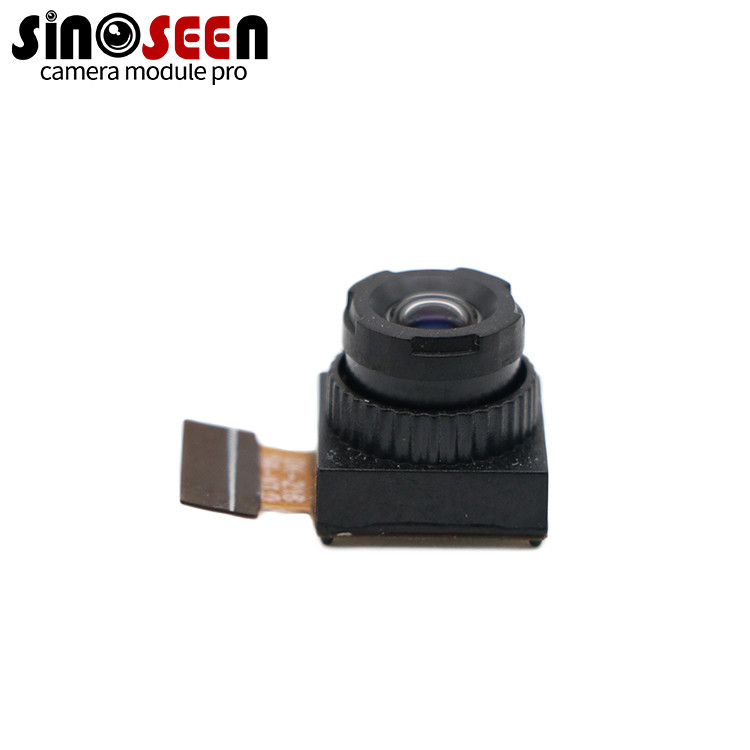

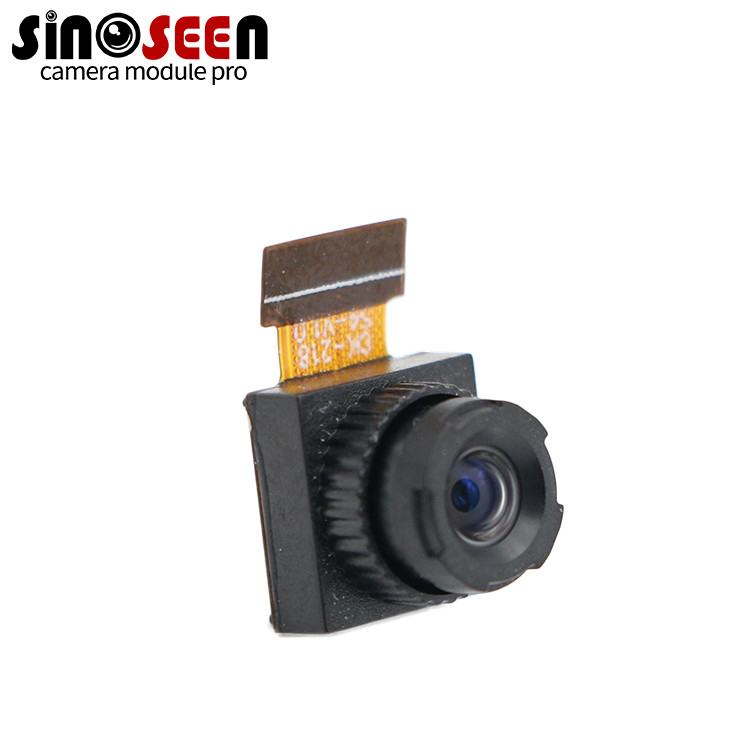

Professional 2MP MIPI camera module integrating OmniVision's OV2312 global shutter CMOS sensor, designed for high-performance imaging in automotive and machine vision applications. With 1600×1300 resolution and 60fps frame rate, it captures fast-moving objects with precision. The RGB-IR support enables simultaneous visible and infrared imaging for optimal performance in variable lighting environments.
| Attribute | Value |
|---|---|
| Type | Camera Module |
| Sensor | 1/5" OV2312 |
| Resolution | 2MP (1600×1300) |
| Frame Rate | 60FPS |
| Lens FOV | 68° (optional) |
| Interface | MIPI |
| Feature | Global shutter |
| Module | CK-21854-V1.0 |
| Sensor | OV2312 CMOS |
| Pixel Size | 3μm×3μm |
| Image Area | 4857.7μm×3955.9μm |
| Shutter Type | Global shutter |
| S/N Ratio | 37.4 dB |
| Dynamic Range | 68 dB |
| Power Supply | Analog: 2.8v, Core: 1.2v, I/O: 1.8v |
| Output Interface | 2-lane MIPI serial output and DVP parallel output |
| Output Formats | 10-bit RGB-IR RAW |
| Operating Temperature | 0°C to 60°C |
| Supported OS | Windows, Linux (UVC), MacOS, Android |
- 2MP resolution (1600×1300) for high-detail capture
- 60 frames per second for real-time motion tracking
- Global shutter eliminates motion blur
- RGB-IR for visible and infrared light detection
- Compact form factor for tight integration
- MIPI interface ensures fast and stable data transfer
- Driver monitoring systems
- In-cabin sensing
- AI-powered robotics
- Traffic and smart city surveillance
We provide custom lens options, interface configuration, and housing designs tailored to your industry's needs. From firmware adjustments to complete module redesign, our team ensures your application requirements are met with precision.
Sinoseen is a leading OEM/ODM manufacturer of camera modules based in Shenzhen, China. We specialize in developing high-performance camera solutions for automotive, smart devices, industrial vision, and AI systems.
