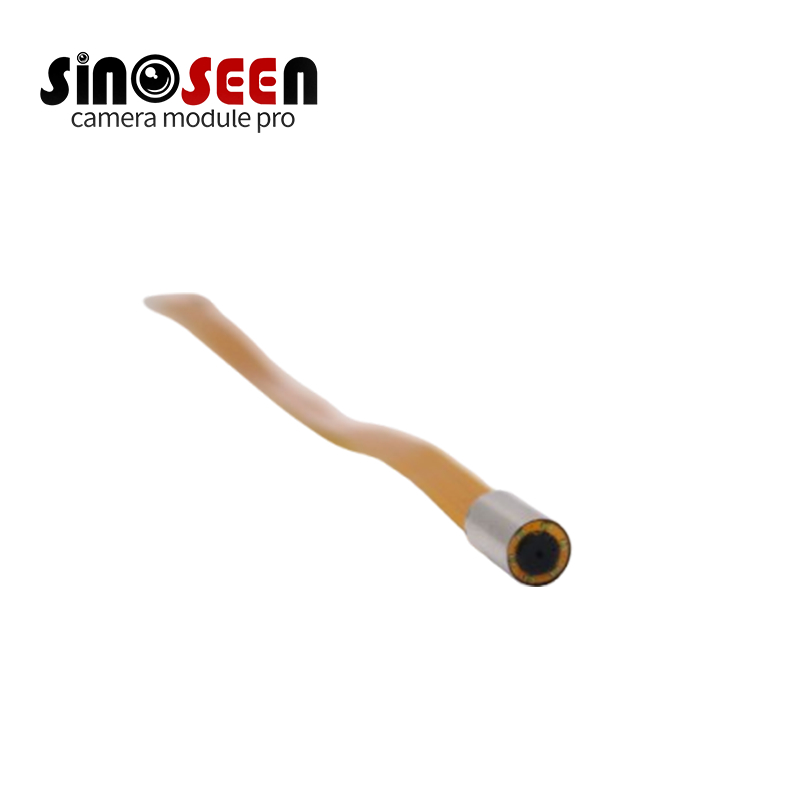

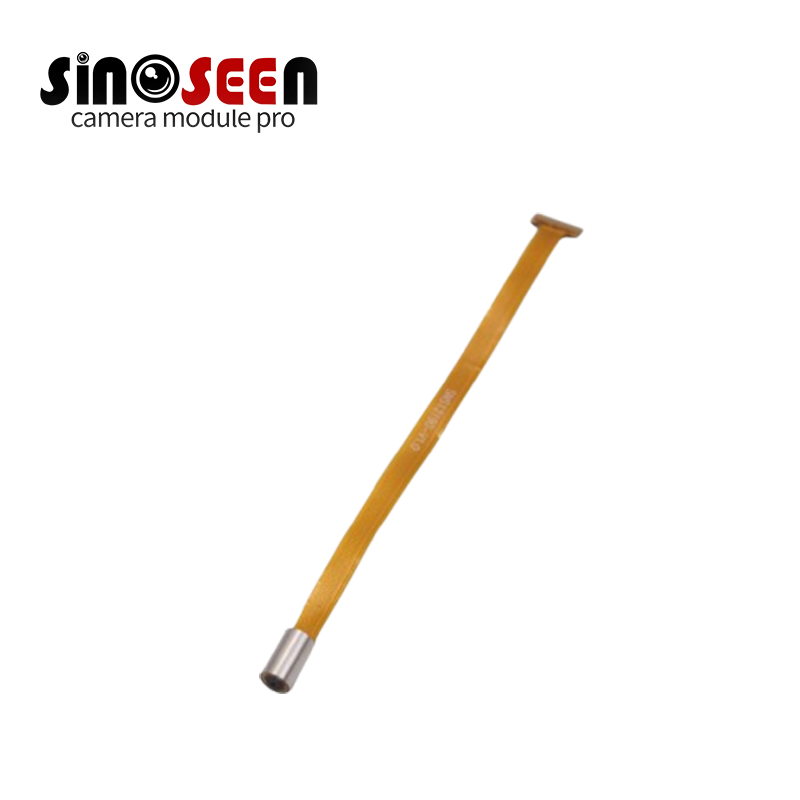

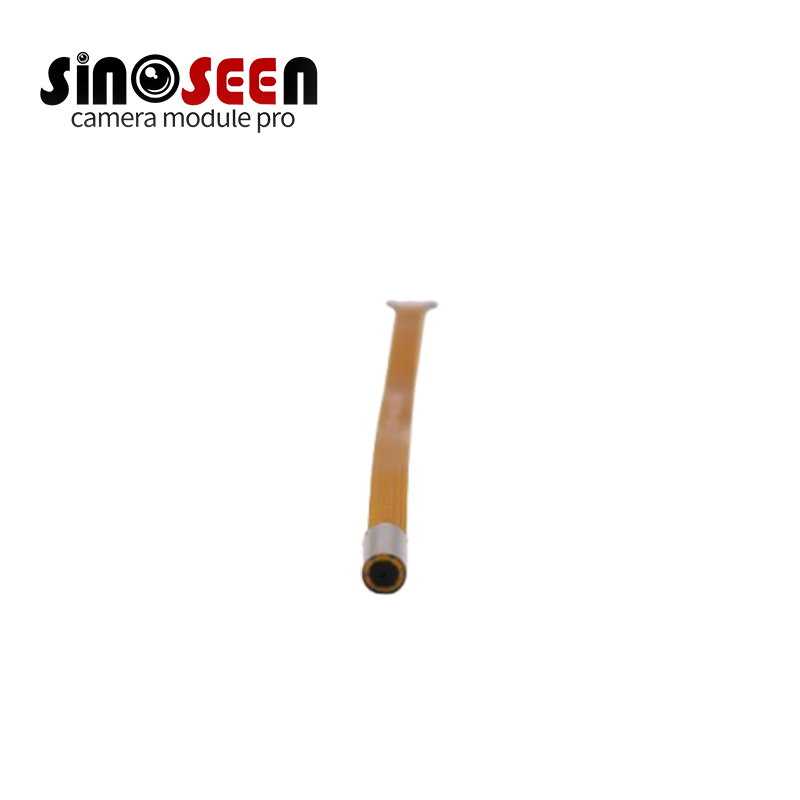

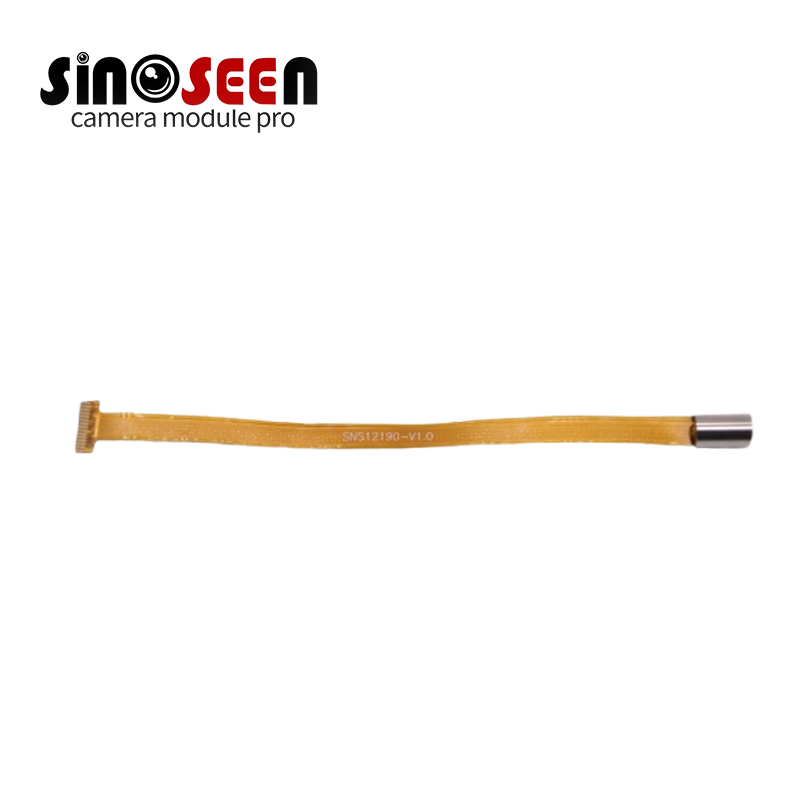

SC035HGS MIPI Camera Module 640x480 Global Shutter 180fps
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | SNS12190-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type:: | MIPI Camera Module | Sensor: | SC035HGS |
|---|---|---|---|
| Resolution: | 640×480 | Dimensions: | (compatible With 32mmx32mm) |
| Highlight: | MIPI camera module global shutter,SC035HGS 640x480 camera module,180fps MIPI camera module |
||
Product Description
SC035HGS MIPI Camera Module 640x480 Global Shutter 180fps
Product Attributes
| Type | MIPI Camera Module |
|---|---|
| Sensor | SC035HGS |
| Resolution | 640×480 |
| Dimensions | (compatible With 32mmx32mm) |
| High Light | mipi Camera Module, Machine Vision SC035HGS Camera Module |
Product Overview
The SNS12190-V1.0 camera module, powered by the SC035HGS global shutter sensor, delivers 640×480 VGA resolution and 180fps high-speed imaging for accurate, fast, and reliable recognition.
Key Specifications
| Module Model | SNS12190-V1.0 |
|---|---|
| Sensor | SC035HGS |
| Resolution | 640×480 (VGA, 0.3MP) |
| Frame Rate | 180fps @10bit |
| Pixel Size | 3.744µm × 3.744µm |
| Optical Format | 1/6" |
| Shutter Type | Global Shutter |
| Output Interfaces | MIPI (1/2 Lane), DVP, LVDS |
| Output Format | RAW MONO / RAW RGB |
| Module Size | 36 × 8 mm |
| Field of View (FOV) | 88° (optional) |
| Power Consumption | ≤120mW |
| Operating Temperature | -30℃ ~ +85℃ |
| Supply Voltage | AVDD 2.8V, DVDD 1.5V, IOVDD 1.8V |
Highlighted Features
- Resolution: 640×480 VGA @180fps
- Shutter Type: Global Shutter
- Pixel Size: 3.744µm
- Interfaces: MIPI / DVP / LVDS
- Compact Module Size: 36 × 8 mm
- Field of View: 88° (optional)
- Low Power Consumption: ≤120mW
Application Benefits
- Barcode scanning - quick and accurate 1D/2D code reading
- 3D scanning & AR/VR - enhanced spatial accuracy with fast global shutter
- Industrial inspection - reliable performance in harsh environments
- Biometric recognition - fast and precise face, iris, and gesture detection
- Portable devices - low power consumption and compact design for embedded integration
This compact and power-efficient module supports popular platforms including Qualcomm, MTK, Hisilicon, Allwinner, Spreadtrum, and STM32.
