Place of Origin:
China
Brand Name:
Sinoseen
Certification:
RoHS、ISO9001、CE
Model Number:
SNS42139-V1.0

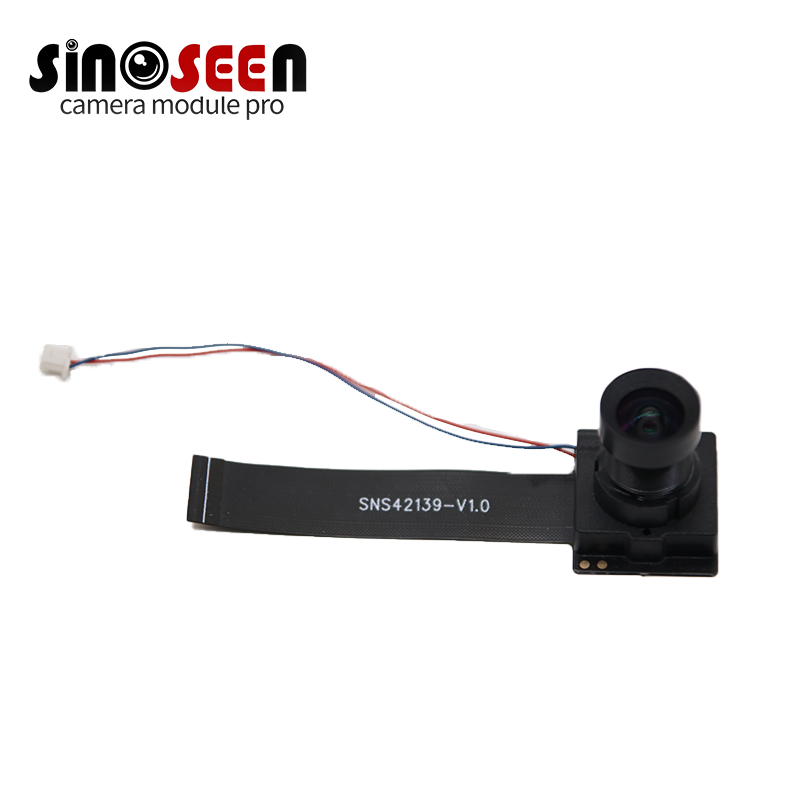

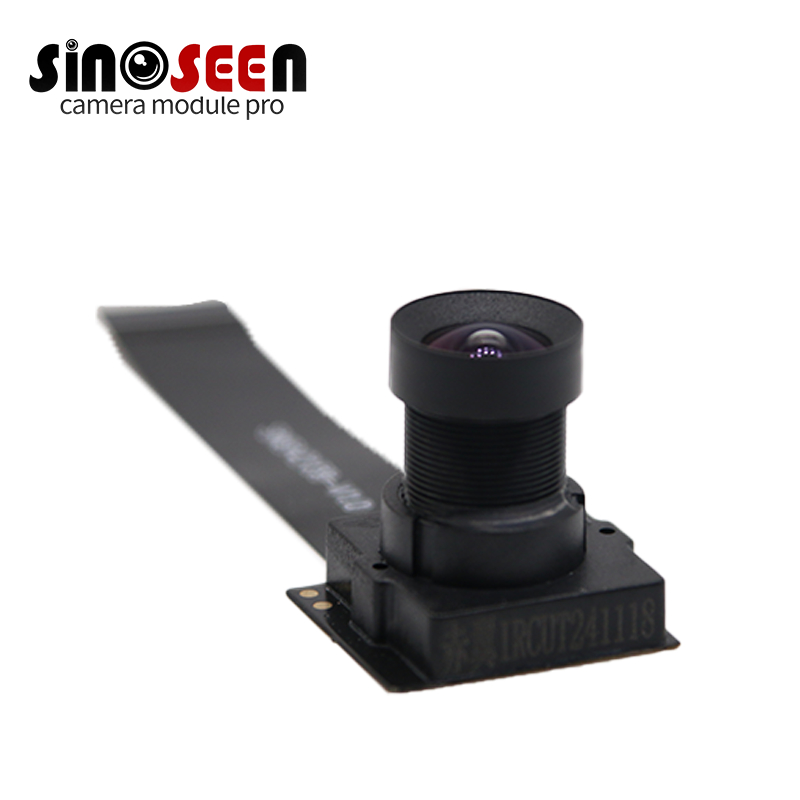

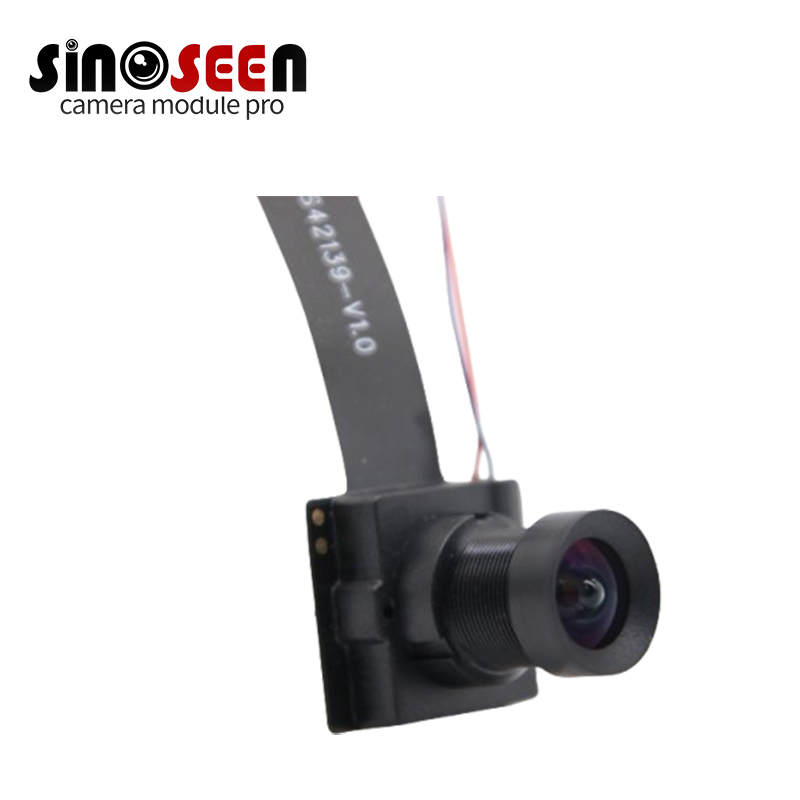

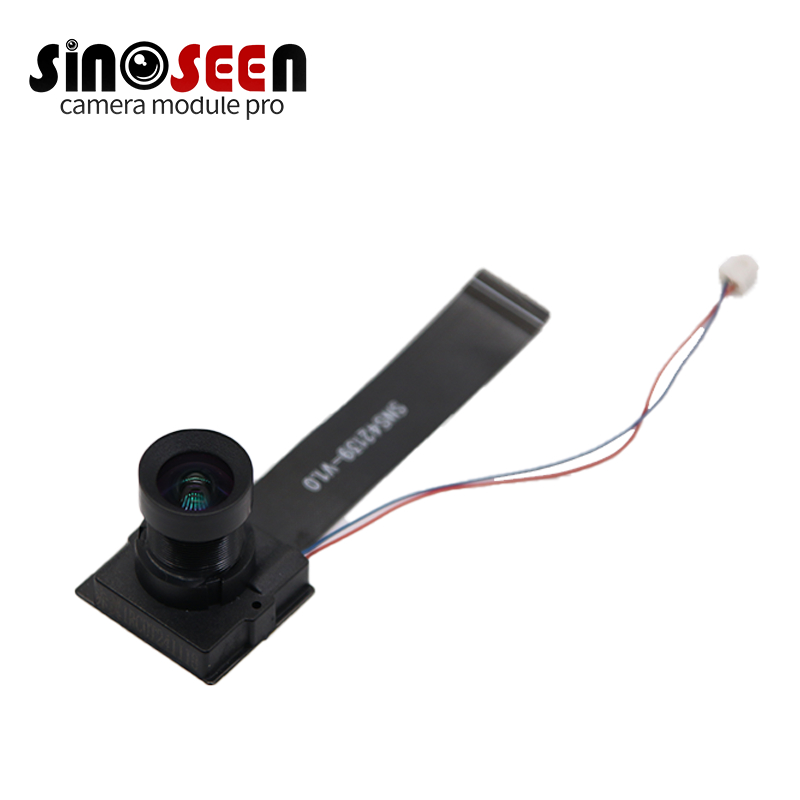

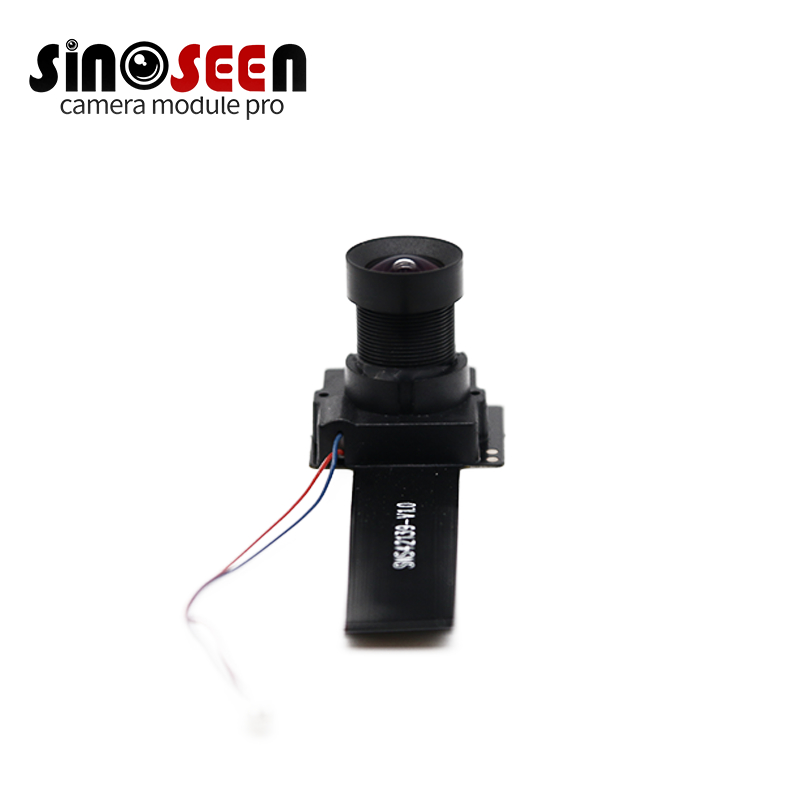

The SC450AI camera module delivers high-resolution imaging for smart devices, featuring infrared enhancement and exceptional low-light sensitivity. With 2688 × 1520 resolution at 30fps, it provides crisp video performance for diverse applications.
| Sensor Model | SC450AI |
| Resolution | 4MP (2688 × 1520 @ 30fps) |
| Pixel Size | 2.9 µm × 2.9 µm |
| Optical Size | 1/1.8" |
| Output Interface | 1/2/4 Lane MIPI, 1/2/4 Lane LVDS, 12/10/8-bit |
| Dynamic Range | >100 dB (WDR), 87 dB (linear) |
| Sensitivity | 7072 mV/Lux*s |
| IR Enhancement | 850nm / 940nm |
| Operating Temperature | -30°C ~ +85°C |
| Module Size | 23.2 × 74.9 mm |
