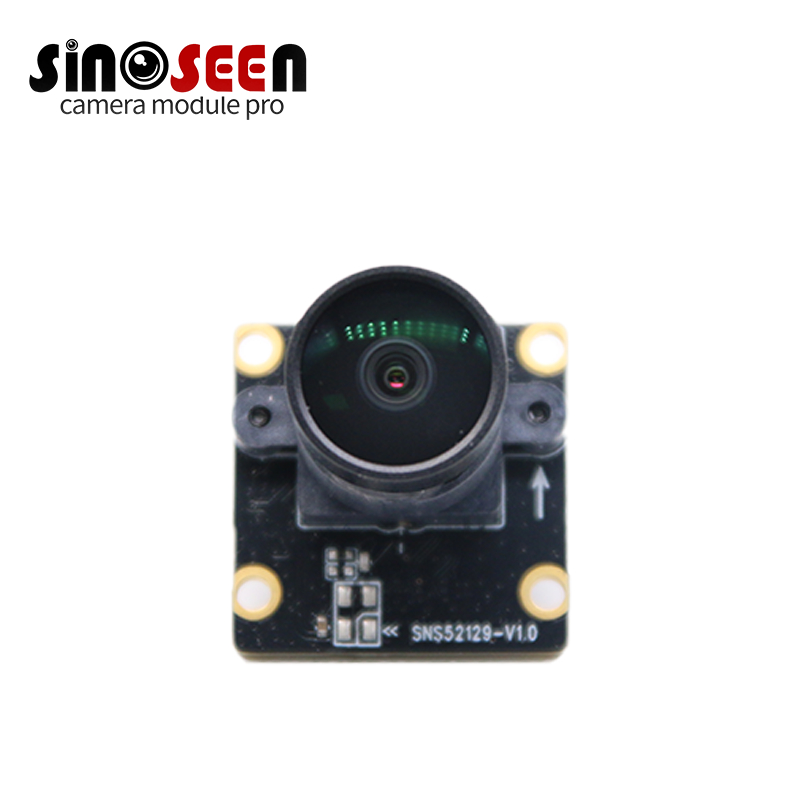

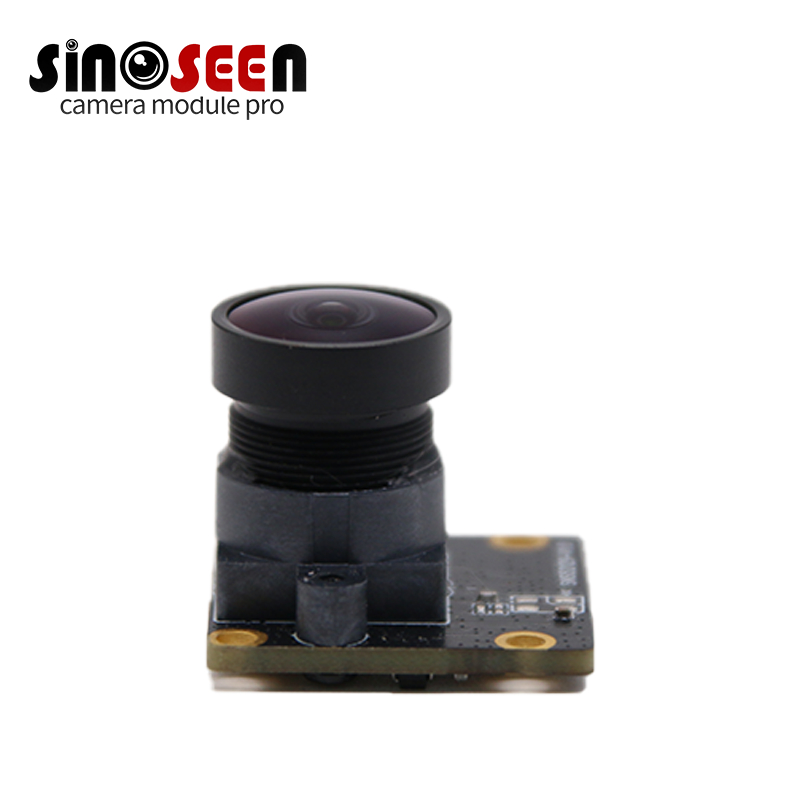

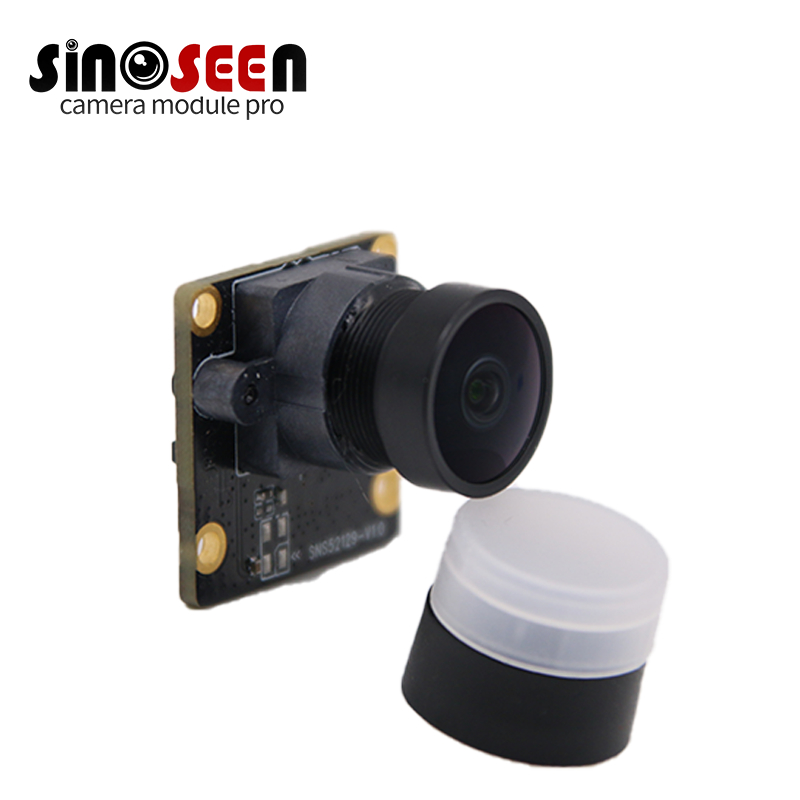

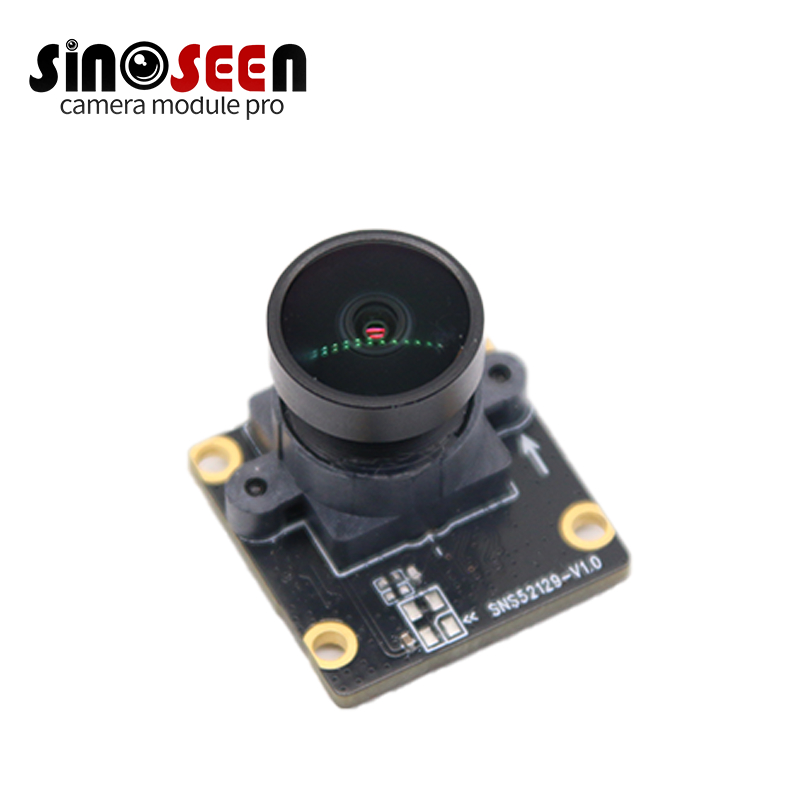

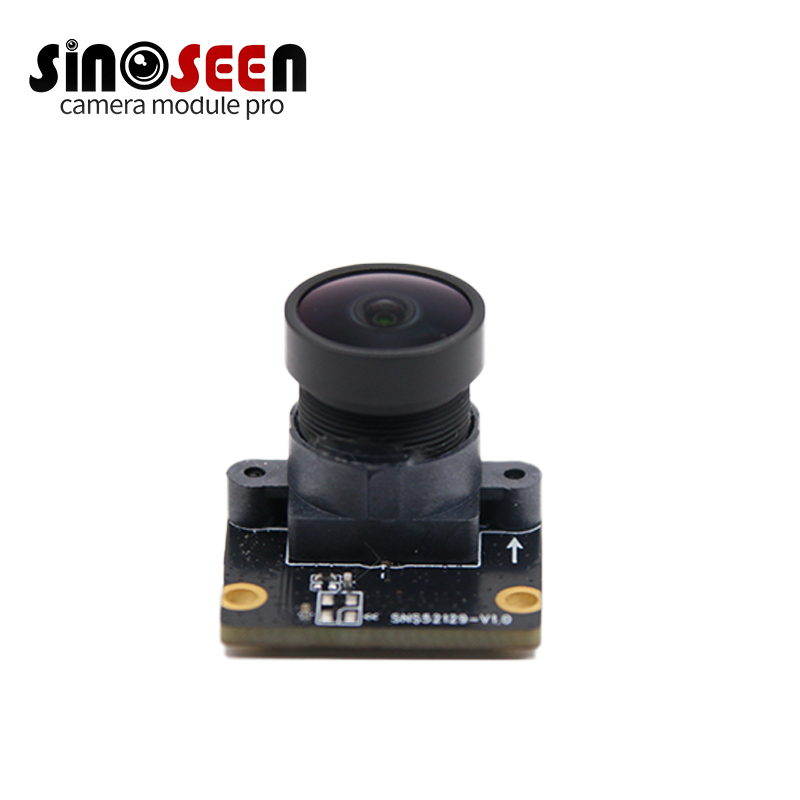

IMX335 MIPI Camera Module 5MP 60fps for RK Qualcomm MTK Platforms
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | SNS52129-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type:: | MIPI Camera Module | Sensor: | IMX335 |
|---|---|---|---|
| Resolution: | 2592 × 1944 | Dimensions: | (compatible With 32mmx32mm) |
| Highlight: | IMX335 MIPI camera module 5MP,MIPI camera module 60fps,IMX335 camera module for RK Qualcomm MTK |
||
Product Description
MIPI Camera Module with Video and Versatile Functionality for RK Qualcomm MTK HiSilicon and Allwinner Platforms
Product Attributes
| Attribute | Value |
|---|---|
| Type | MIPI Camera Module |
| Sensor | IMX335 |
| Resolution | 2592 × 1944 |
| Dimensions | Compatible with 32mm × 32mm |
| High Light | MIPI Camera Module, Machine Vision IMX335 Camera Module |
Product Description
The IMX335 camera module delivers professional-grade imaging with 2592 × 1944 resolution at 60fps, making it ideal for demanding video applications.
Featuring wide dynamic range for accurate color reproduction and an optional 95° lens, this module performs reliably in diverse environments from smart homes to industrial applications.
The MIPI interface ensures seamless integration with multiple platforms including RK, Qualcomm, MTK, HiSilicon, and Allwinner processors.
Key Features
- 5MP resolution with smooth 60fps video capture
- Wide 95° field of view (optional)
- High dynamic range with WDR support
- Built-in electronic shutter and multi-sensor synchronization
- Ideal for smart home, video doorbells, drones, tablets, and signage applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Model | IMX335 |
| Resolution | 5MP (2592 × 1944 @ 60fps) |
| Pixel Array | 2592 × 1944 |
| Pixel Size | 2.0 µm × 2.0 µm |
| Optical Size | 1/2.8" |
| Output Format | RAW10 / RAW12 |
| Output Interface | 2/4 Lane CSI-2 MIPI |
| Dynamic Range | Multiple Exposure WDR / Digital Overlap WDR |
| Readout Mode | All-pixel scan, 2×2 binning, Window cropping, Horizontal/Vertical normal/inverted |
| Shutter Type | Electronic shutter with variable integration time |
| A/D Converter | 10-bit / 12-bit |
| Gain | 0 dB - TBD dB (0.3 dB steps) |
| Recommended Exit Pupil Distance | -30 mm ~ 0 |
| Sensitivity | High, low dark current, low smear |
| Maximum Frame Rate | 2592 × 1944 @ 60fps |
| Module Model | SNS52129-V1.0 |
| Focus Type | Fixed Focus |
| Field of View | 95° (optional) |
| Module Size | 22 × 22 mm |
| Applications | Smart home, digital signage, facial recognition, video doorbells, drones, toy cameras, dashcams, action cameras, tablets |
| Supported Platforms | Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, MStar, RK |
