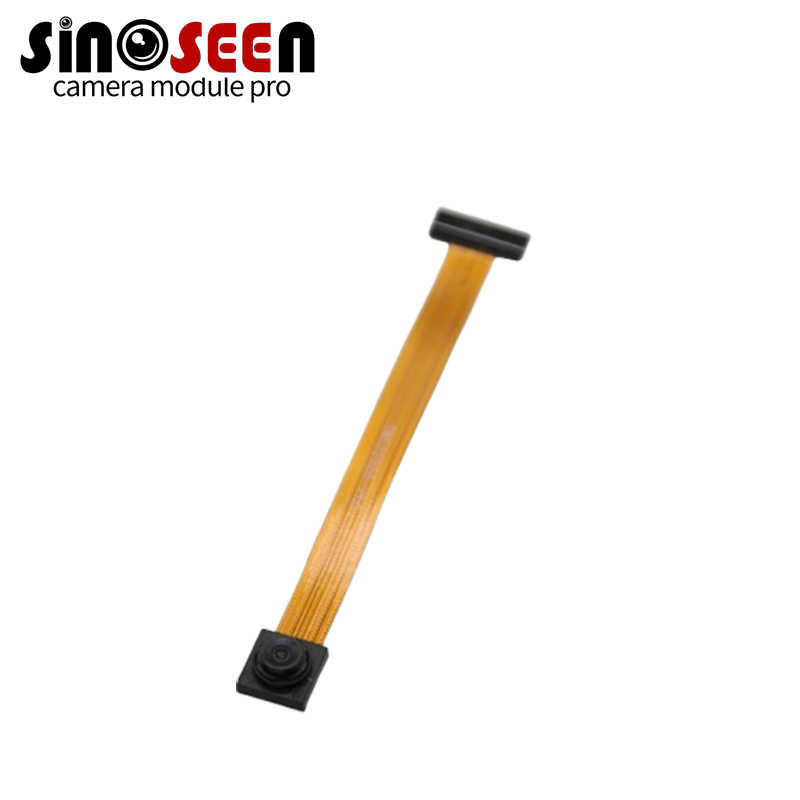

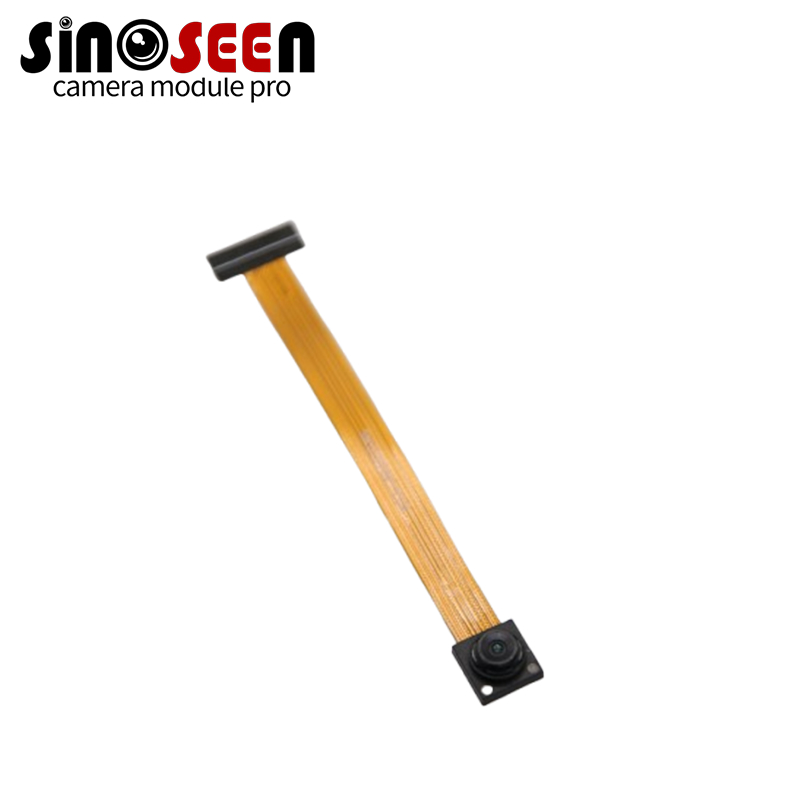

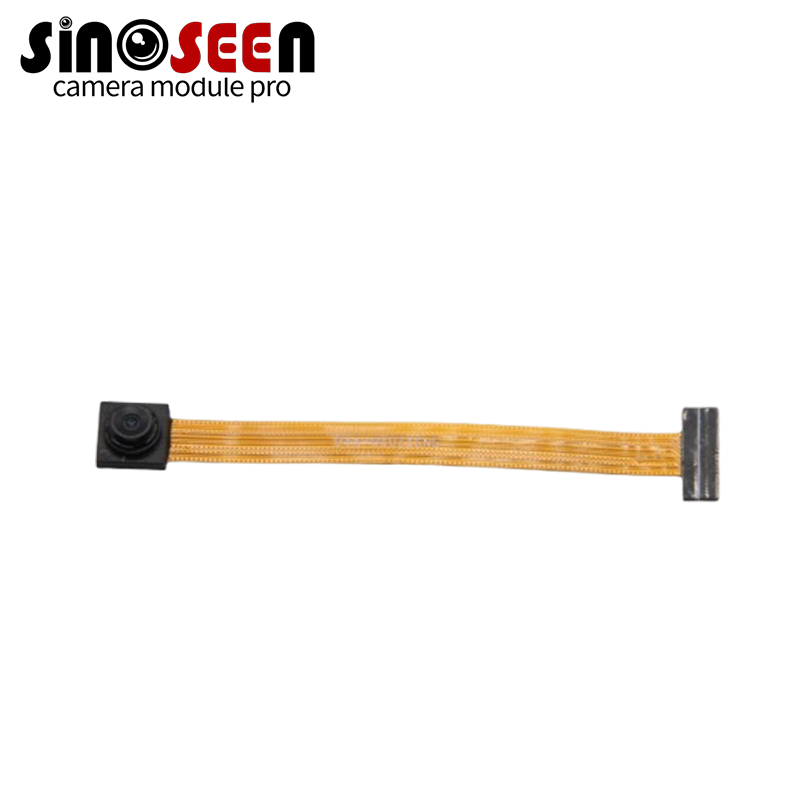

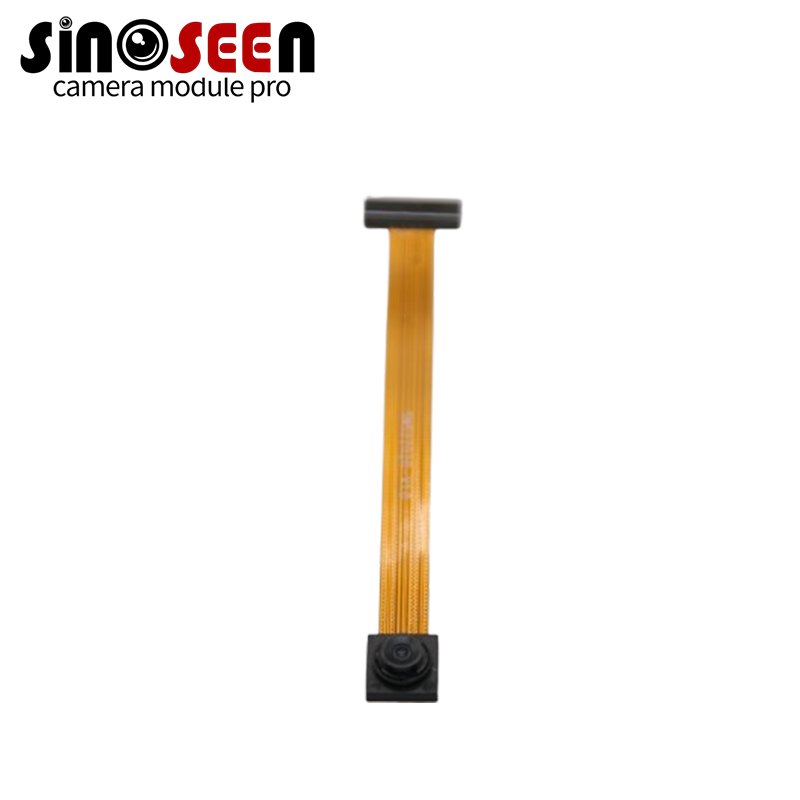

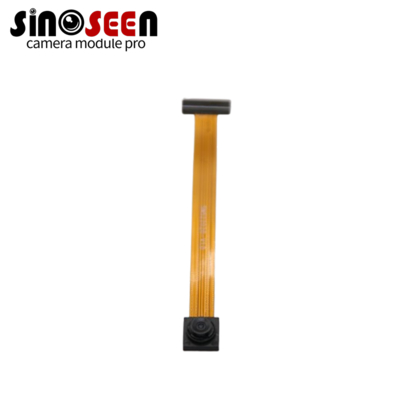

GC2145 2MP CMOS Image Sensor with 1600 x 1200 Resolution Integrated 10 Bit ADC Low Power Operation and Wide Dynamic Range
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS22020-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Features: | Compact Structure | Image Sensor: | OV13B10 |
|---|---|---|---|
| Resolution: | Up To 16 MP | Focusing Type: | AF |
| Sensor Type: | CMOS | Interface Type: | MIPI |
| Shutter Type: | Electronic Rolling Shutter | Vcm Driver: | DW900W |
| Dynamic Range: | Up To 100 DB | Keyword: | CMOS Camera Module |
| Array Size: | 3624*2448 | Function: | High Speed，Wide Angle |
| Maximum Frame Rate: | 3840 × 2160 @ 30fps | Lens Pn: | E3717A |
| Pixel Array: | 2592H*1944V | ||
| Highlight: | 2MP CMOS image sensor,MIPI camera module with 10-bit ADC,1600x1200 resolution CMOS sensor |
||
Product Description
The GC2145 CMOS image sensor provides a 2MP resolution of 1600 x 1200 active pixels in a compact 1/5 inch optical format. With 1.75 μm pixel size and a 10 bit ADC, the sensor ensures clear image capture and stable performance.
- 2MP CMOS sensor with 1600 x 1200 resolution
- 1/5 inch optical format and 1.75 μm pixel size
- Integrated ISP with AE, AWB, noise reduction and color correction
- Supports Bayer RGB, RGB565 and YCbCr 4:2:2 output formats
The integrated image signal processor (ISP) supports auto exposure, auto white balance, noise reduction, and color correction for consistent imaging. Output data can be configured in Bayer RGB, RGB565, or YCbCr 4:2:2 formats, offering flexibility for system integration.
GC2145 supports 15fps at UXGA resolution and 30fps at SVGA, with a low 180mW power consumption in active mode. The device operates reliably in a -20°C to 70°C temperature range, making it suitable for various embedded imaging designs.
Its two-wire serial interface enables easy parameter control, while the electronic rolling shutter with progressive scan ensures stable image readout.
