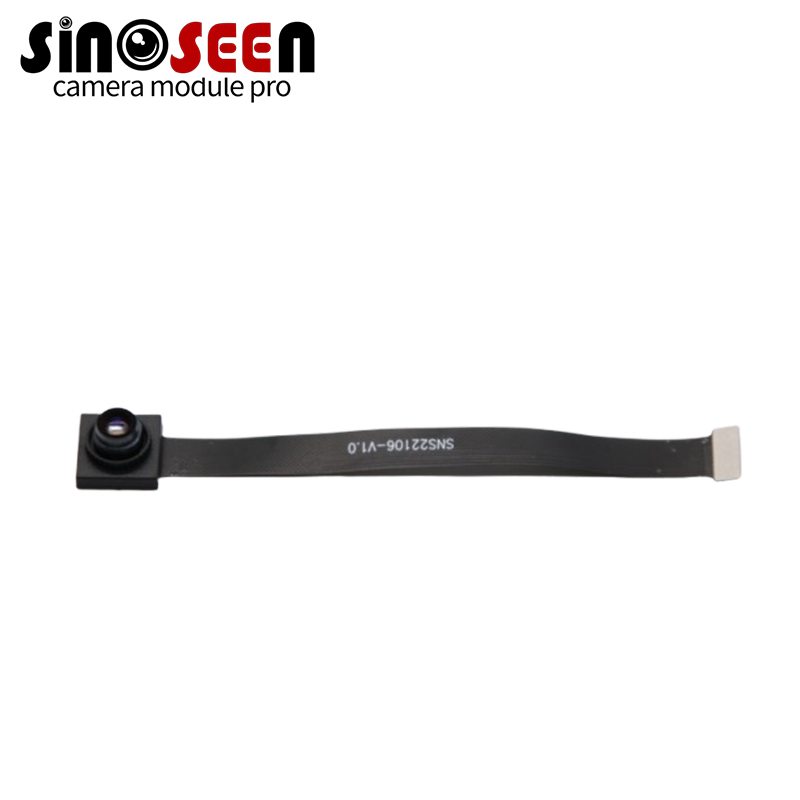

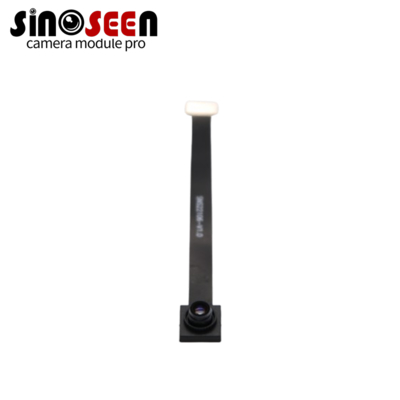

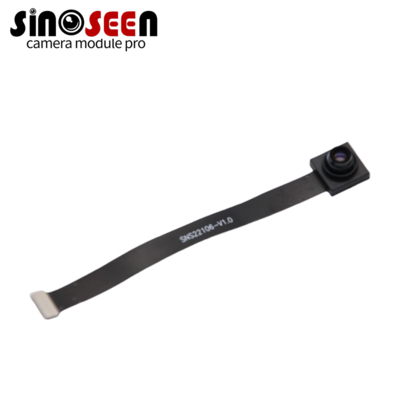

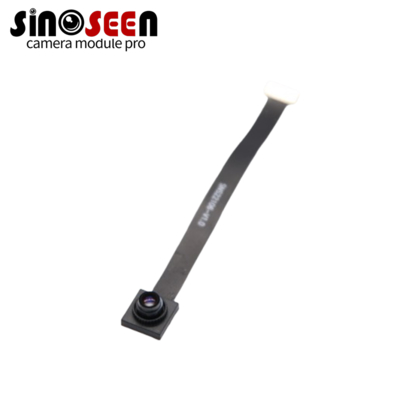

GC2093 1080P CMOS Image Sensor with 1920 x 1080 3MP Size 10 Bit ADC HDR Mode 60fps Full HD Output for Security
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS22106-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Features: | Frame Sync | Describe: | Wide-angle Fisheye Camera |
|---|---|---|---|
| Optical Format: | Type 1/4 | Focusing Distance: | 9cm |
| Special Features: | Waterproof / Weatherproof, Low Power | Operating Temperature: | -20℃ To 60℃ |
| Technology: | PureCel®Plus‑S | Shutter Type: | Electronic Rolling Shutter |
| Resolution: | 8MP | Format: | RAW RGB |
| F Number: | 1.79 | Distortion: | <-50% |
| Eeprom: | Optional | Power Supply: | 3.3V |
| Network: | TCP | ||
| Highlight: | 1080P CMOS image sensor,MIPI camera module 60fps,1920x1080 camera sensor 3.3V |
||
Product Description
GC2093 1080P CMOS Image Sensor
Product Overview
The GC2093 image sensor delivers 1920 x 1080 full HD imaging with a 2.8 μm pixel array that optimizes both sensitivity and detail capture. Featuring a 10 bit ADC for precise data conversion and HDR function with staggered output mode, it excels in challenging lighting conditions.
Supporting both RAW10 and RAW8 formats with MIPI and DVP interfaces, the GC2093 provides exceptional system integration flexibility. Operating at 60fps full resolution, it ensures smooth, high-quality video output.
Engineered for low power consumption and wide operating temperature ranges, this sensor reliably performs in security systems, motion cameras, and embedded vision applications.
Key Features
- 1920 x 1080 full HD resolution with 2.8 μm pixels
- 10 bit ADC with HDR mode for superior dynamic range
- RAW10 and RAW8 output with MIPI and DVP interfaces
- 60fps full resolution video performance
