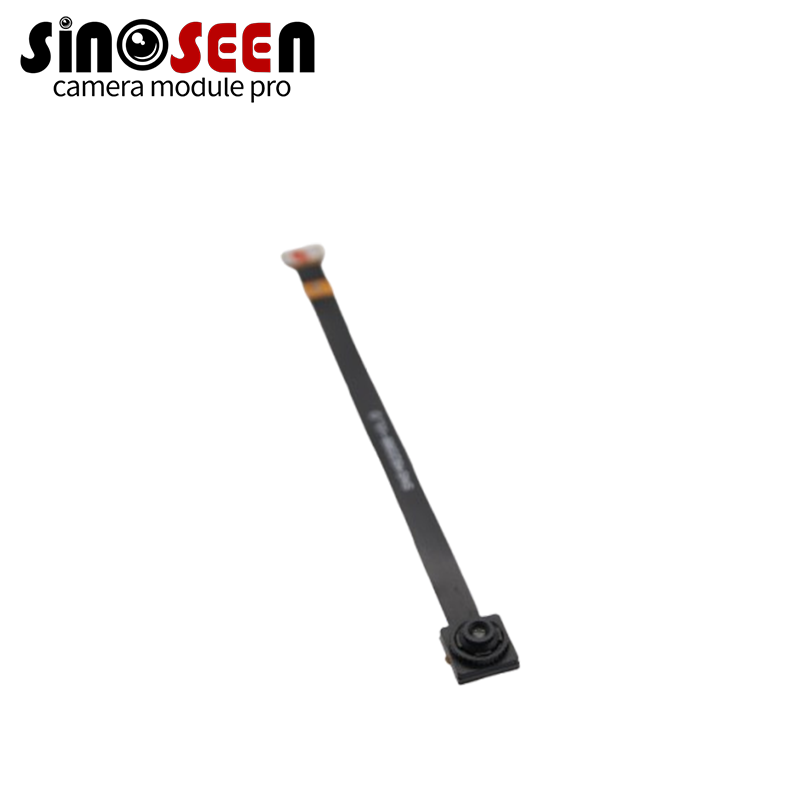

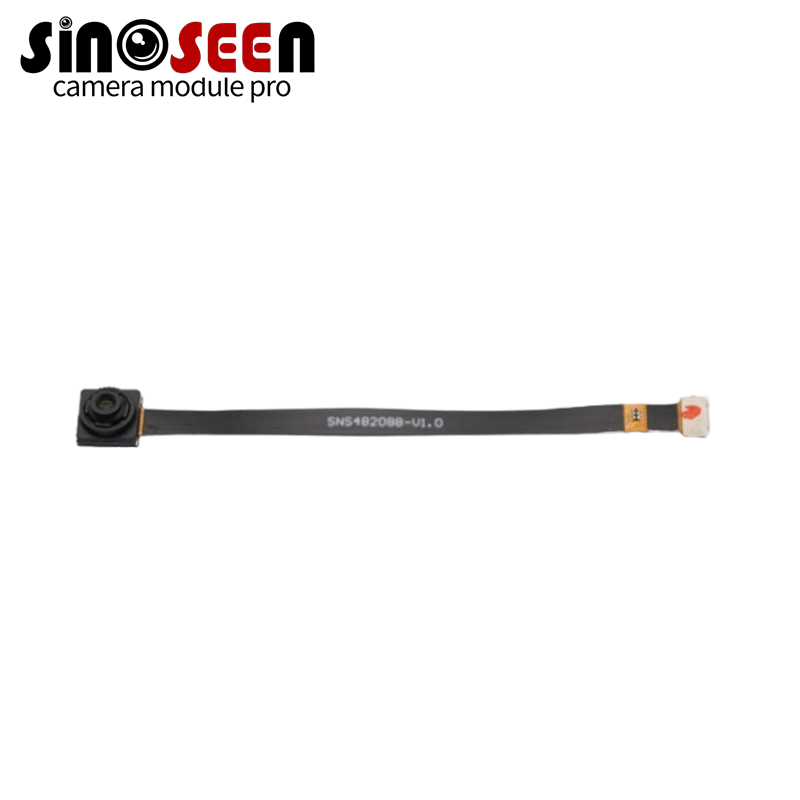

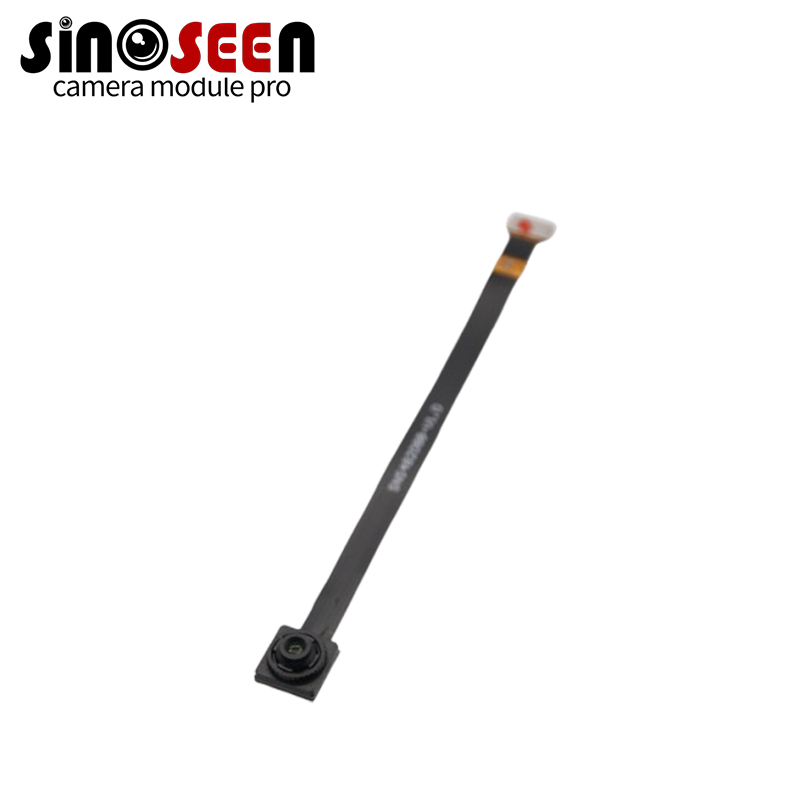

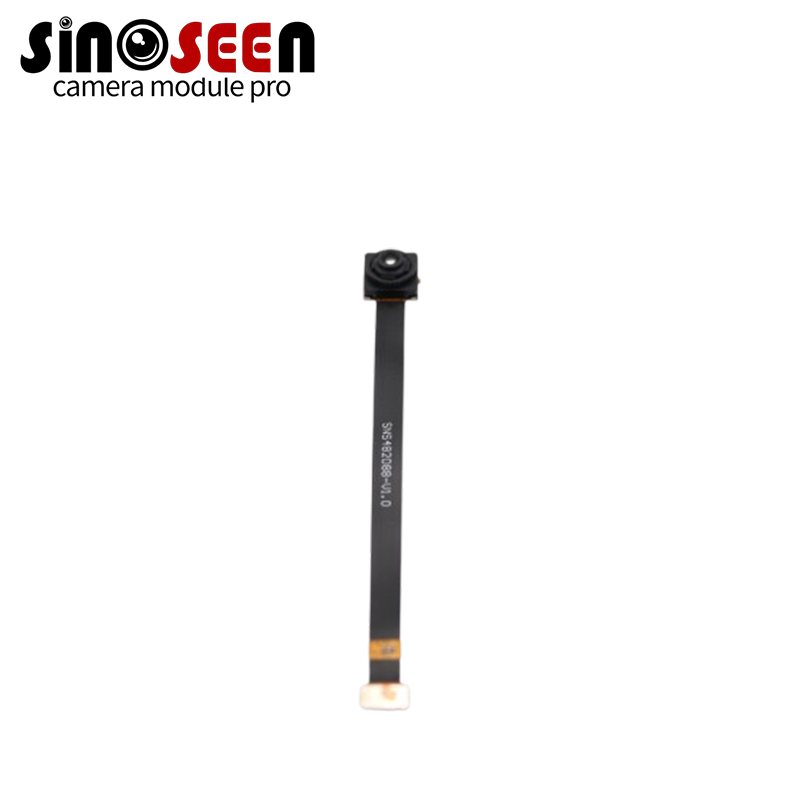

Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS482088-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Features: | Mini Camera Module | Output Formats: | 8-10/bit RGB RAW Output |
|---|---|---|---|
| Description: | 1080P 60fps MIPI CSI-2 Camera Module | Type: | Mini Module |
| Focus Range: | 60cm To Infinity | Output Format: | Linear-12 Bit RAW |
| Focal Length: | 3.6mm | Focus Type: | Auto Focus |
| Power Supply: | 3.3V | Chip Type: | IMX586 |
| Focus: | Fixed Focus（Customizable） | Video Compression Format: | YUY/MJPG |
| Network: | TCP | Dimensions: | 25mm X 25mm X 5mm |
| Chroma: | RGB, Bayer | ||
| Highlight: | Sony IMX586 48MP camera module,MIPI camera module for smartphones,1/2.0 inch 3.3V camera module |
||
Product Description
Sony IMX586 48MP Back Illuminated Camera Module
High Resolution Imaging for Smartphones & Tablets
Product Description
The Sony IMX586 sensor is engineered for modern mobile imaging solutions. Featuring 48MP resolution with 0.8µm pixels, this sensor delivers exceptional image detail while maintaining a compact form factor.
Its back-illuminated structure enhances light sensitivity, while advanced noise reduction technology ensures clean image output even in low-light conditions. The integrated parallel ADC converters enable fast and accurate image capture.
Designed for smartphones, tablets, and portable devices, the IMX586 supports everyday photography, video recording, and advanced camera applications. Its space-efficient design makes it ideal for slim-profile devices.
Key Features
- 48MP high resolution sensor for detailed imaging
- 0.8µm compact pixel design for space efficiency
- Back-illuminated structure for enhanced light sensitivity
- Advanced noise reduction for clearer images
- Optimized for mobile and tablet devices
Technical Specifications
| Item | Specification |
|---|---|
| Sensor Type | CMOS Image Sensor |
| Diagonal Size | 8.0 mm (Type 1/2.0) |
| Image Size | 8032 (H) * 6248 (V) ≈ 50.18 M pixels |
| Total Number of Pixels | 8032 * 6248 ≈ 50.18 M pixels |
| Number of Effective Pixels |
- 8032 * 6088 ≈ 48.89 M pixels - 8000 * 6000 ≈ 48.00 M pixels |
| Number of Active Pixels | 7.504 mm (H) * 5.659 mm (V) |
| Chip Size | 7.504 mm * 5.659 mm |
| Unit Cell Size (Pixel Size) | 0.80 µm * 0.80 µm |
| Substrate Material | Silicon |
