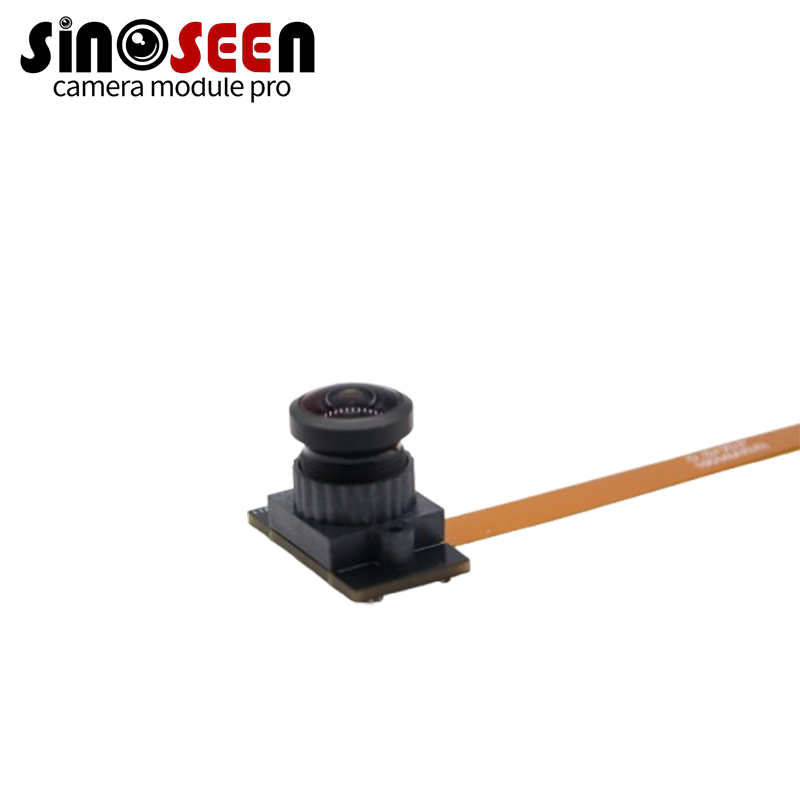

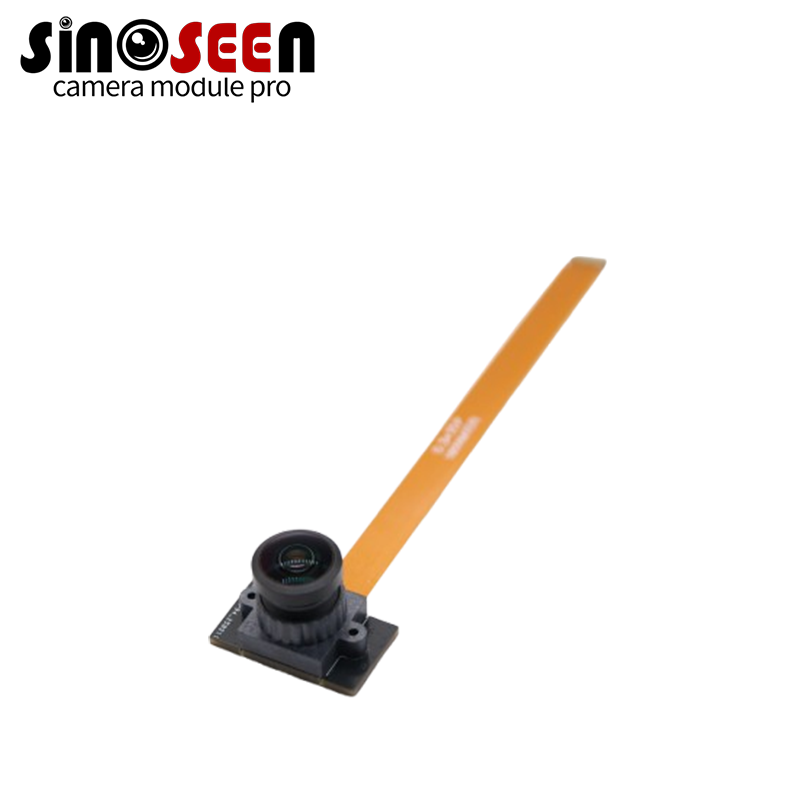

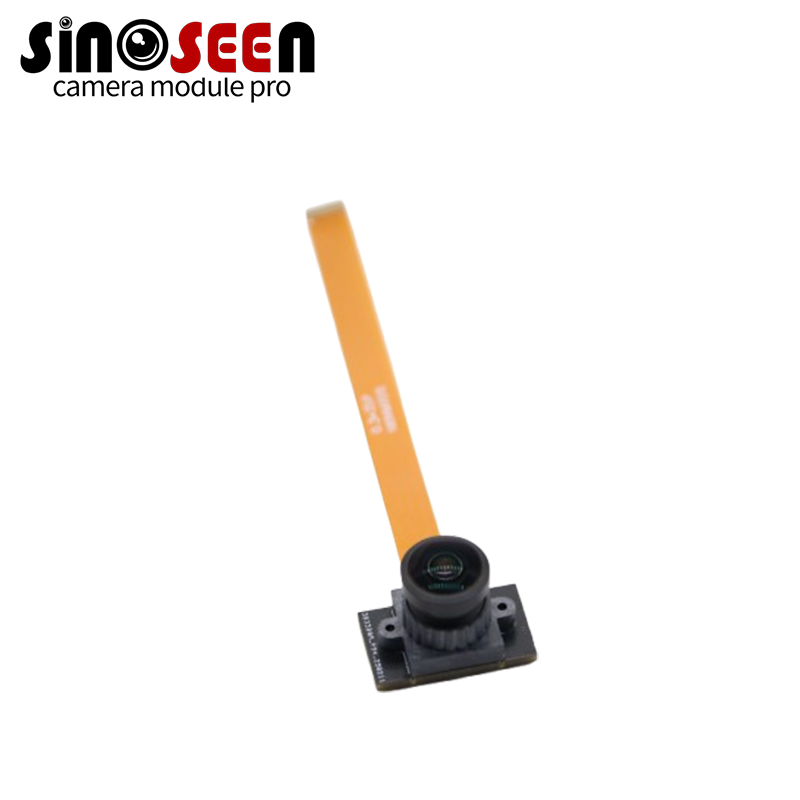

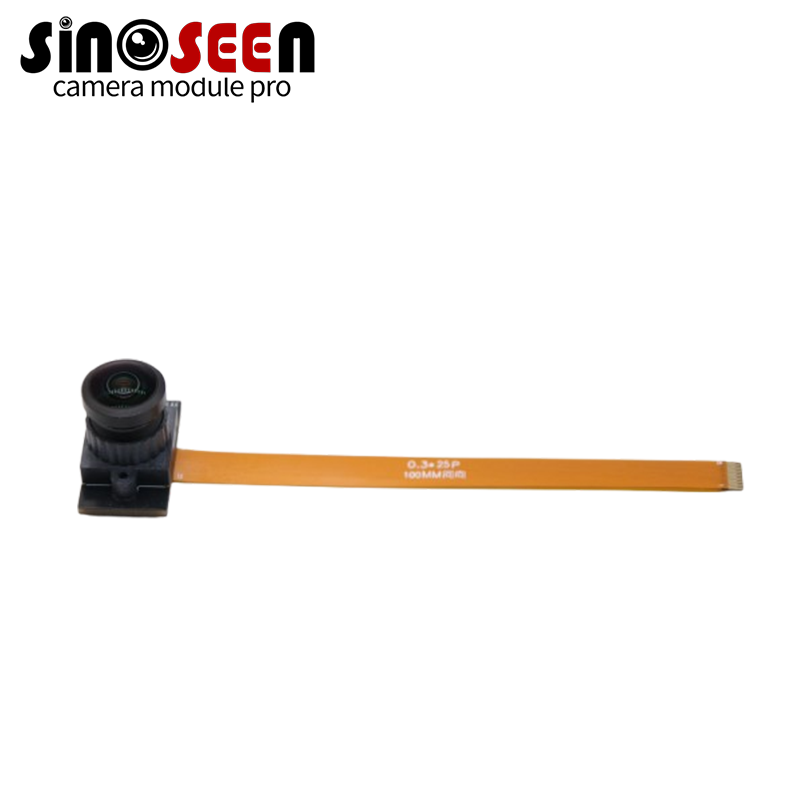

IMX462LQR-C 2MP CMOS Sensor 1/2.8 Inch Back-Illuminated Active Pixel Array Low Power for Security Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1194-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Viewangle: | D82 | Tv Distortion: | ＜-1.5% |
|---|---|---|---|
| Video Compression: | MJPEG/YUV2 (YUYV) | Lens Pn: | E3717A |
| Pixel: | 64MP | Interface: | MIPI CSI-2 |
| Gpu: | Mali-T860 | Focusing Type: | AF |
| Focus Range: | 900mm | Function: | Wide Angle |
| Focusing: | Autofocus / Fixedfocus | Output Format: | RAW RGB |
| Output Data Format: | RAW RGB | Interface Type: | MIPI CSI DVP |
| Series: | Mini Camera Module | ||
| Highlight: | 2MP MIPI camera module,1/2.8 inch CMOS sensor,back-illuminated camera module |
||
Product Description
IMX462LQR-C 2MP CMOS Sensor 1/2.8 Inch Back-Illuminated Active Pixel Array Low Power for Security Industrial
Product Description
The IMX462LQR-C sensor produces 2MP images with clear details and accurate colors. Its back-illuminated pixel array improves performance in low-light conditions.
Designed for industrial inspection, factory automation, and security cameras, this sensor delivers stable, reliable images across various operating conditions.
The compact design enables easy integration, while low power consumption makes it ideal for long-term use in embedded camera modules.
Highlights
- 2MP sharp images with high clarity
- Back-illuminated pixel array for enhanced low-light performance
- Low power consumption for extended operation
- Stable and reliable image output
Technical Specifications
| Item | Specification |
|---|---|
| Sensor Type | CMOS Image Sensor |
| Image Sensor Size | 1/2.8" |
| Total Number of Pixels | 1945 (H) * 1109 (V) ≈ 2.16 M pixels |
| Number of Effective Pixels | 1945 (H) * 1097 (V) ≈ 2.13 M pixels |
| Number of Active Pixels | 1937 (H) * 1097 (V) ≈ 2.12 M pixels |
| Recommended Recording Pixels | 1920 (H) * 1080 (V) ≈ 2.07 M pixels |
| Unit Cell Size (Pixel Size) | 2.9 µm * 2.9 µm |
| Optical Black Region | Horizontal: Front 0 pixels / Rear 0 pixels Vertical: Front 10 pixels / Rear 0 pixels |
| Dummy Pixels | Horizontal: Front 0 pixels / Rear 3 pixels Vertical: Front 0 pixels / Rear 0 pixels |
| Substrate Material | Silicon |
