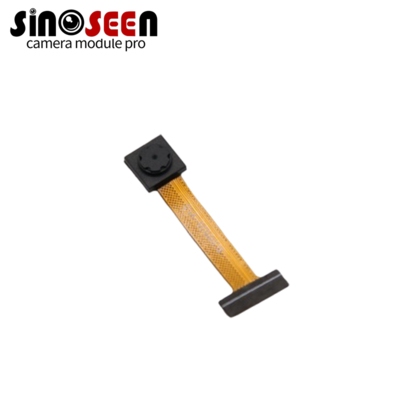

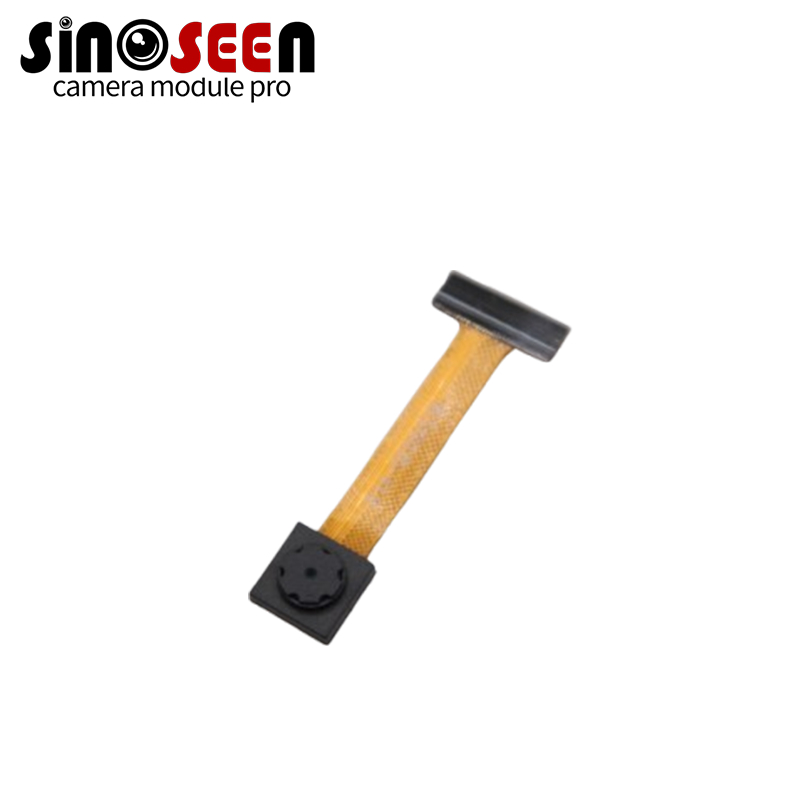

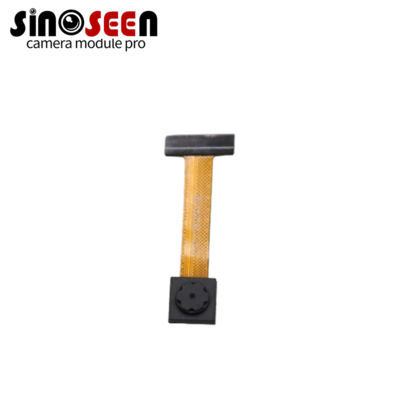

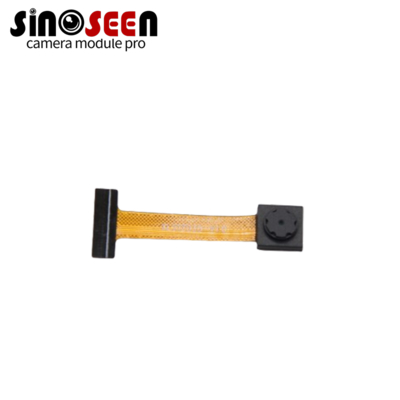

SC035HGS Global Shutter CMOS Sensor 640x480 180fps MIPI CSI-2
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | XLS12035-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Image Format: | RAW, YUV, RGB | Sensor Size: | 1/2.5" |
|---|---|---|---|
| Connector: | DF37N-30DP-0.4V | Interface: | MIPI CSI-2 |
| Gpu: | Mali-T860 | Type: | Smart Camera Module |
| Mounting Type: | MIPI CSI Interface | Focus Type: | Fixed Focus |
| Pixelarray: | 3856H*2200V | Output Frame Rate: | Full@30fps |
| Efl: | 3.46MM | Sensor: | 1/2.3" IMX377/IMX477/IMX577 CMOS |
| Output Format: | YUV Output | Eeprom: | Optional |
| Lens Size: | 1/2.7inch | ||
| Highlight: | Global Shutter CMOS sensor MIPI CSI-2,640x480 CMOS camera module,180fps MIPI camera module |
||
Product Description
SC035HGS Global Shutter CMOS Sensor 640x480 180fps Low Power with RAW Output for Industrial
Product Description
The SC035HGS global shutter CMOS sensor delivers 640x480 resolution and 180fps output, enabling reliable imaging in fast-moving and low-light environments.
It supports RAW MONO and RAW RGB formats with MIPI, LVDS, and DVP interfaces, ensuring compatibility with diverse systems. The sensor provides automatic exposure and gain control, along with external triggered shutter for precise synchronization.
The design achieves low dark current, 40dB SNR, and 60dB dynamic range, making it suitable for both monochrome and color applications. Power consumption is optimized to 120mW max, ensuring stable performance.
SC035HGS is widely applied in industrial vision, automotive systems, barcode scanners, surveillance cameras, and high-speed photography.
Highlights
- Global shutter, 640x480 pixels
- High frame rate up to 180fps
- Multiple outputs: MIPI, LVDS, DVP
- Low power consumption (120mW max)
- RAW MONO and RAW RGB formats
Specifications
| Item | Specification |
|---|---|
| Resolution | 0.3 Megapixels |
| Effective Pixel Array | 640 (H) × 480 (V) |
| Pixel Size | 3.744 µm × 3.744 µm (BSI) |
| Optical Format | 1/6" |
| Maximum Frame Rate | 640 × 480 @ 10-bit → 180 fps |
| Sensitivity | Mono: 6500 mV/lux*s |
| Dynamic Range | Mono/Color: 60 dB |
| SNR (Max) | Mono/Color: 40 dB |
| Analog Gain | Up to 15.5× |
| Digital Gain | Up to 8× |
| Shutter Type | Global Shutter |
| Exposure Control | External control, multi-sensor synchronization, sub-line exposure supported |
| Output Formats | RAW MONO / RAW RGB |
| Output Interfaces | 12/10/8-bit DVP 12/10/8-bit 1/2-lane MIPI 12/10/8-bit 1/2-lane LVDS |
| Features | Horizontal/Vertical windowing, Auto exposure/gain control, LED strobe support, High sensitivity |
| CRA (Chief Ray Angle) | 33° |
| Register Control | I²C programmable |
| Power Consumption | Max: 120 mW (low power design) |
| Operating Temperature Range | -30°C ~ +85°C |
| Optimal Operating Temperature | -20°C ~ +60°C |
| Power Supply | Analog: 2.8V ±0.1V Digital: 1.5V ±0.1V I/O: 1.8V ±0.1V |
