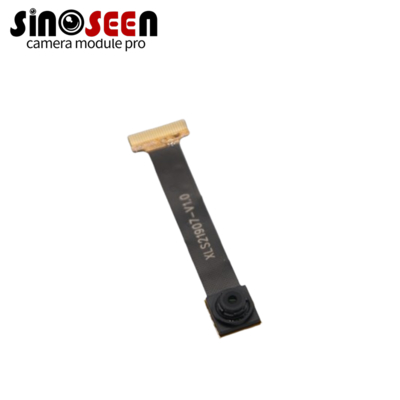

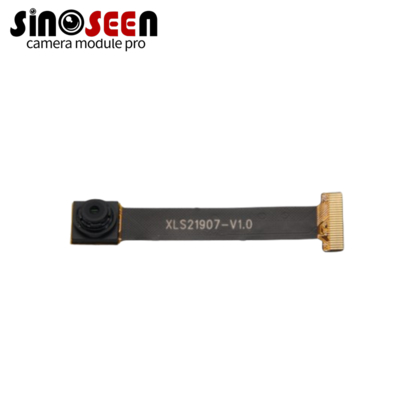

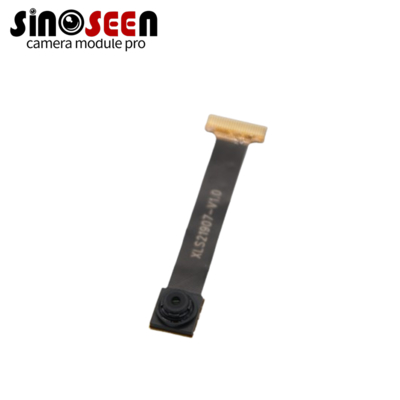

GC2053 Full HD 1080P CMOS Sensor 30fps Low Power MIPI Camera Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | XLS21907-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Dovdd: | 1.7V-3.3V | Optical Format: | Type 1/4 |
|---|---|---|---|
| Lens Size: | 1/2.7inch | Lens Fov: | 65°(optional) |
| Maximum Effective Pixel: | 1920(H)X1080(V) | Max Frame Rate: | 2880Hx1620V @60fps |
| Vcm Driver: | WV511A | Module Size: | OEM |
| Sensor No: | OV2732 | View Angle: | 76.9° |
| Pinout: | 30pin | Image Sensor: | Ov5640 1/4'' Color CMOS Sensor |
| Data Storage Options: | Full HD | Describe: | MIPI Camera Module |
| Power Supply: | 3.3V | ||
| Highlight: | Full HD 1080P MIPI camera module,Low power CMOS sensor camera,30fps MIPI camera module |
||
Product Description
GC2053 Full HD 1080P CMOS Image Sensor
Product Description
The GC2053 CMOS sensor is a compact full HD solution designed for mobile and consumer imaging devices. It features a 1920x1080 pixel array with on-chip 10-bit ADC, ensuring smooth video capture at 30fps.
The sensor is optimized for low power use, consuming only 98mW, which makes it ideal for portable applications. Its sensitivity of 3.87 V/lux*s and 81dB dynamic range deliver consistent imaging across different light conditions.
With MIPI and DVP interfaces and simple two-wire serial control, system integration is straightforward. The CSP package allows compact module design without sacrificing performance.
The GC2053 is well suited for mobile phones, digital cameras, motion cameras, and battery-powered devices.
Highlights
- 1920x1080 resolution at 30fps
- Compact and low power design
- Ideal for mobile and portable devices
- MIPI and DVP outputs supported
- High sensitivity with wide dynamic range
Technical Specifications
| Item | Typical Value |
|---|---|
| Optical Format | 1/2.9" inch |
| Pixel Size | 2.8 µm × 2.8 µm |
| Active Pixel Array | 1920 × 1080 |
| Shutter Type | Electronic Rolling Shutter |
| ADC Resolution | 10-bit |
| Maximum Frame Rate | 30 FPS @ full resolution |
| Power Supply | AVDD: 2.8V DVDD: 1.2V IOVDD: 1.8V |
| Power Consumption | 98 mW |
| Maximum SNR | 38 dB |
| Dark Current | TBD |
| Sensitivity | 3.87 V/lux*s |
| Dynamic Range | 81 dB |
| Operating Temperature | -20°C ~ 80°C |
| Stable Image Temperature | 0°C ~ 60°C |
| Storage Temperature | -40°C ~ 125°C |
| Optimal Lens Chief Ray Angle (CRA) | 12° (linear) |
| Package Type | CSP |
| Input Clock Frequency | 6 ~ 27 MHz |
