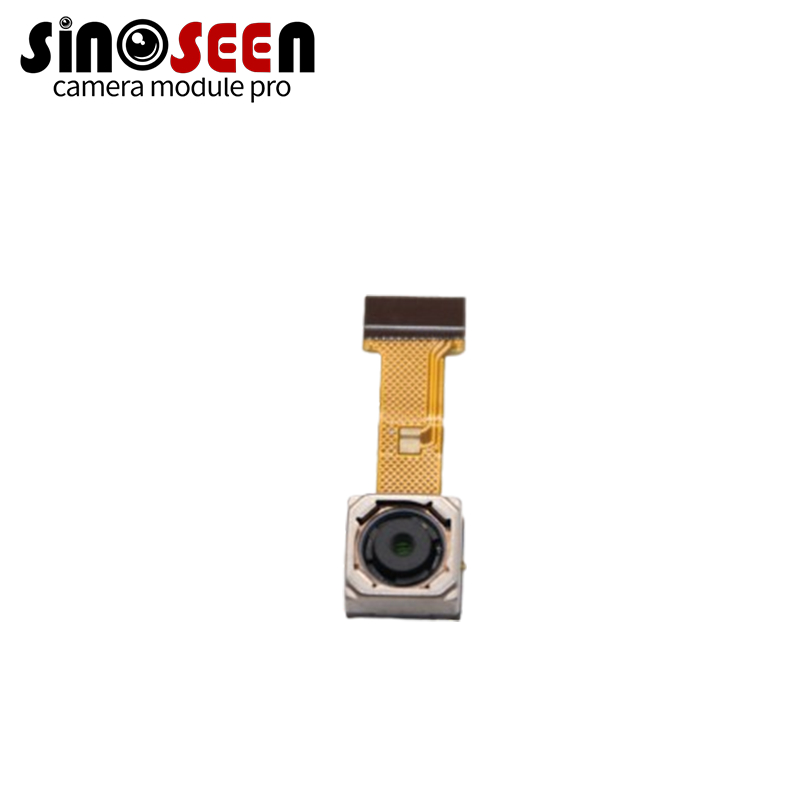

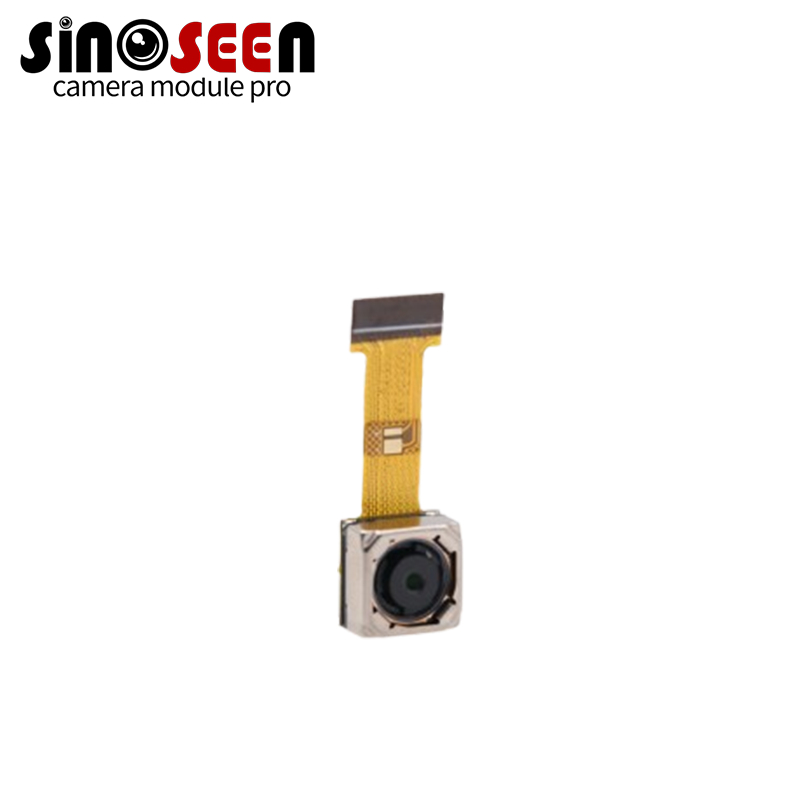

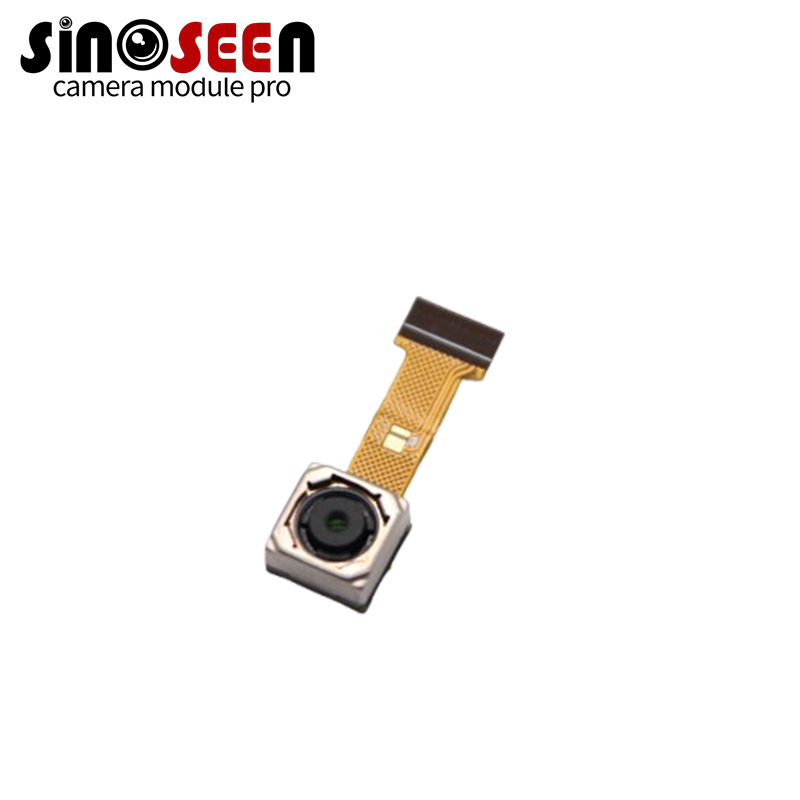

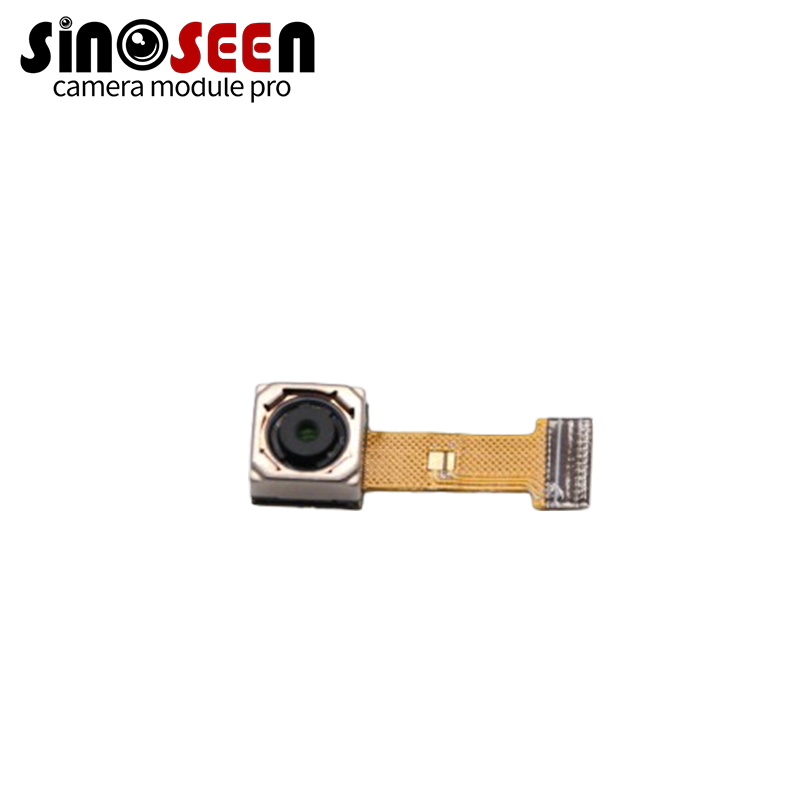

OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS52032-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Pixel Size: | 0.8µm(H) X 0.8µm(V) | Shutter Type: | Electronic Rolling Shutter |
|---|---|---|---|
| Output Format: | RGB Output | Sensor: | IMX335 |
| Lens Fov: | 65° | Focusing Type: | AF |
| Maximum Frame Rate: | 3840 × 2160 @ 30fps | Pinout: | 24 Pin |
| Vcm Driver: | DW900W | Dimensions: | 25mm X 24.5mm X 6.5mm |
| Efl: | 3.19MM | Sensor Type: | CMOS |
| Application Type: | Security | Field Of View: | 84° (Optional) |
| Focal Length: | 1.58mm | ||
| Highlight: | 5MP MIPI camera module,OV5670 CMOS sensor,1080P 60fps camera |
||
Product Description
OV5670 5MP CMOS HDR Image Sensor
Rolling Shutter High Sensitivity 1080P for Mobile and Embedded Devices
Product Description
The OV5670 sensor captures 5MP images with 10-bit RGB RAW output. It supports HDR and rolling shutter, delivering vivid and clear images in all lighting conditions.
The sensor features a 2-lane MIPI interface with frame rates up to 1080P 60fps and VGA 120fps, making it ideal for mobile cameras, drones, and embedded devices.
Built-in on-chip noise reduction and pixel correction ensure clean, accurate images. The sensor's high sensitivity provides reliable performance in low-light conditions.
Key Features
- 5MP CMOS HDR sensor for high-quality imaging
- Rolling shutter with high frame rates
- 2-lane MIPI output for embedded systems
- Advanced noise reduction and pixel correction
Technical Specifications
| Item | Specification |
|---|---|
| Active Array Size | 2592 × 1944 |
| Pixel Size | 1.12 µm × 1.12 µm |
| Image Area | 2945.7 µm × 2214 µm |
| Lens Size | 1/5" |
| Lens Chief Ray Angle (CRA) | 31° non-linear (see figure 9-2) |
| Input Clock Frequency | 6 ~ 27 MHz |
| Output Interface | 2-lane MIPI serial output |
| Output Formats | 10-bit RGB RAW |
| Maximum Frame Rate |
- 5MP (2592 × 1944) → 30 FPS - Quad HD (2560 × 1440) → 30 FPS - 1080p (1920 × 1080) → 60 FPS - 720p (1280 × 720) → 60 FPS - VGA (640 × 480) → 120 FPS |
| Power Supply |
- Analog: 2.6 ~ 3.0V (2.8V nominal) - Core: 1.14 ~ 1.26V (1.2V nominal) - I/O: 1.7 ~ 3.0V (1.8V or 2.8V nominal) |
| Operating Temperature | -30°C ~ +85°C junction temperature |
| Stable Image Temperature | 0°C ~ +60°C junction temperature |
| Package Dimensions | 4080 µm × 3430.2 |
