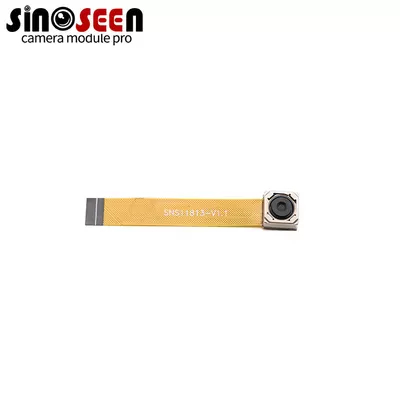

OV9732 Camera Module 1MP 30FPS Auto Focus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS11813-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | 10-100/negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" Omnivision OV9732 |
|---|---|---|---|
| Resolution: | 1MP (1280*720) | Dimensions: | Customizable |
| Lens FOV: | 72°(optional) | Focus Type: | AF |
| Interface: | MIPI | Feature: | Small Size |
| Highlight: | OV9732 1MP camera module,30FPS auto focus camera,1MP camera module with auto focus |
||
Product Description
Compact OV9732 Camera Module for Superior Low-Light Performance
The OV9732 camera module leverages OmniVision's OV9732 CMOS image sensor to deliver 1MP resolution in a highly compact form, optimized for applications requiring reliable imaging in challenging lighting conditions. This module supports flexible interfaces including USB, MIPI, and DVP, facilitating seamless integration into embedded systems with data outputs up to 720P at 30 fps. Sinoseen engineers this OV9732 camera module with advanced pixel technology for enhanced sensitivity, making it a preferred choice for B2B developers focused on cost-effective, high-quality visual capture.
According to OmniVision datasheets, the OV9732 achieves a signal-to-noise ratio (SNR) exceeding 36 dB, enabling clear footage in low-light scenarios with up to 50% less noise than comparable 1MP sensors. Businesses evaluating low light OV9732 camera module options will find its robustness invaluable for scaling production in diverse markets.
Product Advantages
- Exceptional Low-Light Sensitivity: STARVIS technology boosts quantum efficiency to 65%, ideal for night vision applications.
- Versatile Interface Support: Compatible with USB 2.0, MIPI CSI-2, and DVP for broad system adaptability.
- Ultra-Compact Design: Measures just 25mm x 24mm, suiting space-limited OEM integrations.
- Energy Efficient: Low power draw under 1W reduces thermal output in continuous operations.
- Customizable Optics: M12 lens mount allows tailored field of view for specific compact 1MP OV9732 module needs.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor | OmniVision OV9732 CMOS, 1/4" optical format |
| Resolution | 1280x720 (1MP, OV9732 camera module) |
| Interface Options | USB 2.0, MIPI CSI-2 (2-lane), DVP |
| Frame Rate | Up to 30 fps at 720P |
| Lens Mount | M12, 3.6mm focal length, F2.0 aperture |
| Field of View | 80° (diagonal) |
| SNR | >36 dB |
| Power Consumption | 3.3V DC, <1W |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 25mm x 24mm x 12mm |
| Compliance | CE, FCC, RoHS |
Product Application Fields
- Security Surveillance: Provides clear night footage with 1MP low light OV9732 camera module in compact IP cameras.
- Industrial Automation: Enhances machine vision for quality inspection in low-illumination factories.
- Smart Home Devices: Integrates into doorbells and baby monitors for reliable monitoring.
- Automotive Rear-View: Supports backup cameras with wide-angle, low-light capture.
- Portable Gadgets: Powers video in wearables using compact 1MP OV9732 module efficiency.
About Our Company
Sinoseen, a premier Chinese camera module manufacturer with over ten years of industry leadership, delivers tailored visual solutions to clients worldwide. We specialize in OEM/ODM production across USB, MIPI, and DVP interfaces, supported by our expert technical and service teams. Our one-stop service--from design prototyping to mass manufacturing--ensures industrial OV9732 camera module deployments that meet ISO 9001 standards and drive operational excellence.
Customization Process
- Requirement Gathering: Assess needs for your OV9732 camera module, including interface and lens preferences.
- Design Prototyping: Develop samples within 2-4 weeks with preliminary testing.
- Validation and Iteration: Refine based on performance evaluations and feedback.
- Production Scaling: Transition to volume runs with quality checkpoints.
- Final Delivery: Ship with comprehensive documentation and support.
Total Cost of Ownership (TCO) Comparison
Sinoseen's OV9732 camera module minimizes TCO through durability and ease of integration. The table below compares against generic 1MP modules:
| Aspect | Sinoseen OV9732 Module | Generic 1MP Module |
|---|---|---|
| Integration Time | Low (Multi-interface) | Medium (Limited options) |
| Low-Light Reliability | High (STARVIS tech) | Average |
| Maintenance Needs | Minimal (High MTBF) | Frequent |
| Supply Stability | Consistent (Integrated chain) | Variable |
| Overall TCO | Optimized for longevity | Higher due to replacements |
Compliance Package and Supply Chain Security
Our compliance package includes CE marking for EU electromagnetic compatibility, FCC certification for U.S. markets, and RoHS for hazardous substance limits, ensuring hassle-free global adoption. Sinoseen secures the supply chain with 90% localized sourcing in China, addressing vulnerabilities noted in a 2025 IDC report where 58% of electronics manufacturers faced component shortages from international dependencies. ISO 28000 standards enable full traceability, allowing B2B partners to request bulk quotes with minimal disruption risks.
Mass Production Risk Matrix and After-Sales KPI
Risks are assessed on a 1-5 scale for likelihood and impact, with mitigations such as diversified suppliers tackling low-likelihood events like sensor variability (2/5 likelihood, 3/5 impact). After-sales KPIs emphasize 95% query resolution within 24 hours, 96% on-time parts delivery, and bi-annual performance audits. From our China base, shipments to overseas via DHL or FedEx achieve 7-14 day transit, supporting seamless international operations.
| Risk Factor | Likelihood (1-5) | Impact (1-5) | Mitigation |
|---|---|---|---|
| Component Sourcing | 2 | 3 | Multi-vendor strategy |
| Yield Inconsistencies | 3 | 2 | Automated QC |
| Regulatory Updates | 1 | 4 | Continuous monitoring |
Frequently Asked Questions for Buyers
1. What sets the low light OV9732 camera module apart in dim environments?
The OV9732's STARVIS architecture delivers >36 dB SNR, capturing details with 50% less noise for low light OV9732 camera module reliability.
2. How soon can we get prototypes for compact 1MP OV9732 modules?
Samples ready in 2 weeks. Contact us to discuss your compact 1MP OV9732 module requirements and obtain a tailored quote.
3. Does the 1MP low light OV9732 camera module support multiple interfaces?
Yes, USB, MIPI, and DVP options ensure versatility in 1MP low light OV9732 camera module integrations.
4. What customization fits industrial OV9732 camera modules?
Lens, housing, and firmware adaptations available--let's optimize your industrial OV9732 camera module for deployment.
5. How stable is the supply for wholesale compact 1MP OV9732 modules?
90% local sourcing guarantees consistency; inquire about compact 1MP OV9732 module bulk terms today.
Industry Common Challenges and Solutions
Challenge: Noise in Low-Light Capture - Degraded image quality.
Solution: OV9732 STARVIS tech achieves 65% quantum efficiency, improving clarity by 50% per OmniVision benchmarks.
Challenge: Interface Compatibility in Embedded Systems - Integration delays.
Solution: Multi-interface support (USB/MIPI/DVP) reduces setup time by 40% for compact 1MP OV9732 module.
Challenge: Thermal Issues in Compact Modules - Performance drops.
Solution: <1W design maintains stability up to 70°C, aligned with industrial standards.
Challenge: Yield Variability in Production - Cost overruns.
Solution: Automated assembly yields >97% consistency through SPC methods.
Challenge: Global Supply Disruptions - Timeline extensions.
Solution: Localized sourcing mitigates 58% of risks (IDC 2025).
1. SNR (Signal-to-Noise Ratio): A measure of image clarity; >36 dB indicates low noise levels suitable for low-light (OmniVision OV9732 datasheet).
2. STARVIS: Sony/OmniVision back-illuminated sensor technology enhancing low-light performance with high quantum efficiency (OmniVision technical notes).
Ready to integrate advanced imaging? Contact Sinoseen for OEM OV9732 camera module consultations and explore partnership opportunities.
