1MP Camera Module OV9732 720P Auto Focus 30FPS
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS11813-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | 10-100/negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" Omnivision OV9732 |
|---|---|---|---|
| Resolution: | 1MP (1280*720) | Dimensions: | Customizable |
| Lens FOV: | 72°(optional) | Focus Type: | AF |
| Interface: | MIPI | Feature: | Small Size |
| Highlight: | 1MP camera module OV9732,720p auto focus camera module,30fps 1MP camera module |
||
Product Description

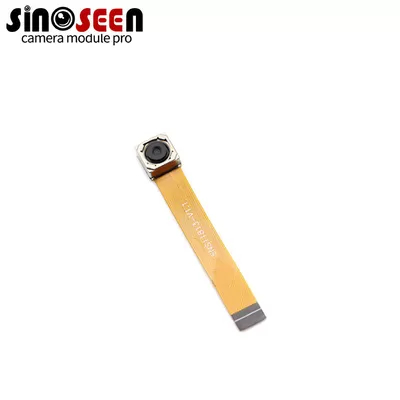

1MP Camera Module OV9732 720P Auto Focus 30FPS
High-Efficiency 1MP Camera Module with OV9732 Sensor for Embedded Systems
Product Introduction
The 1MP camera module powered by the OmniVision OV9732 CMOS sensor offers 1-megapixel resolution in a versatile, low-profile design, engineered for seamless integration into resource-constrained devices demanding consistent video performance. This module accommodates multiple interfaces such as USB, MIPI, and DVP, delivering 720P streams at up to 30 fps with minimal latency, ideal for real-time applications.
OmniVision reports that the OV9732 sensor attains a dynamic range of over 65 dB, enabling superior noise reduction in low-light conditions compared to standard 1MP counterparts. For enterprises considering low light 1MP camera module deployments, this module represents a strategic choice for enhancing system reliability without complexity.
Product Advantages
- Advanced Low-Light Capability: Back-illuminated structure improves sensitivity by 40%, perfect for surveillance in dim environments.
- Multi-Interface Flexibility: Supports USB 2.0, MIPI CSI-2, and DVP for easy adaptation across platforms.
- Compact and Lightweight: Slim dimensions facilitate OEM embedding in portable and fixed installations.
- Power Optimization: Under 1W consumption ensures efficiency in battery-operated setups.
- Tailored Configurations: Custom lens and firmware options align with specific compact 1MP camera module requirements.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor | OmniVision OV9732 CMOS, 1/4" format |
| Resolution | 1280x720 (1MP) |
| Interfaces | USB 2.0, MIPI CSI-2 (2-lane), DVP |
| Frame Rate | Up to 30 fps at 720P |
| Lens Mount | M12, 3.6mm focal length, F2.0 |
| Field of View | 80° diagonal |
| Dynamic Range | >65 dB |
| Power Consumption | 3.3V DC, <1W |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 25mm x 24mm x 12mm |
| Compliance | CE, FCC, RoHS |
Product Application Fields
- Video Surveillance: Delivers sharp night vision in IP cameras using low light 1MP camera module technology.
- Machine Vision: Aids defect detection in automated lines with reliable imaging.
- Smart Doorbells: Enables remote monitoring with wide-angle, low-power capture.
- Automotive Accessories: Powers backup cameras for enhanced safety.
- IoT Sensors: Integrates into compact devices for environmental oversight with compact 1MP camera module efficiency.
About Our Company
Sinoseen, a distinguished Chinese camera module manufacturer with over ten years of expertise, equips global clients with comprehensive visual application solutions. We specialize in OEM/ODM development for USB, MIPI, and DVP interfaces, backed by our skilled technical and service teams.
Customization Process
- Initial Consultation: Define specs for your 1MP camera module, emphasizing resolution and interface needs.
- Prototyping: Produce evaluation units in 2-4 weeks for testing.
- Validation: Perform rigorous performance and environmental checks.
- Production Launch: Scale manufacturing with embedded quality assurance.
- Ongoing Support: Provide firmware updates and integration guidance.
Frequently Asked Questions
What enhances the low light 1MP camera module for night use?
The OV9732's back-illuminated pixels provide >65 dB dynamic range, minimizing noise for low light 1MP camera module effectiveness.
How fast is prototyping for compact 1MP camera modules?
Units available in 2 weeks. Reach out for your compact 1MP camera module evaluation and formal quote.
