8MP Auto Focus 4K Camera Module USB2.0 Flexible FPC Sony IMX179 Sensor

8MP Auto Focus 4K Camera Module USB2.0 Flexible FPC Sony IMX179 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-8MP-IMX179-F1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/3.2" SONY IMX179
Resolution: 8MP 3264(H) X 2448(V) Dimensions: 60mmx10mm (customizable)
Lens FOV: 90°(optional) Focus Type: Fixed Focus/Auto Focus
Interface: USB2.0 Feature: 4K
High Light:

8MP 4K Camera Module

,

IMX179 4K Camera Module

,

8MP 4K module camera

Product Description

8MP Auto Focus 4K Camera Module USB2.0 Flexible FPC Sony IMX179 Sensor

8MP Fixed Focus 4K USB2.0 Flexible FPC And PCB USB Camera Module With Sony IMX179 Sensor



This is one of our best-selling USB camera modules, it has an 8-megapixel SONY IMX179 CMOS sensor,the image quality is very good.

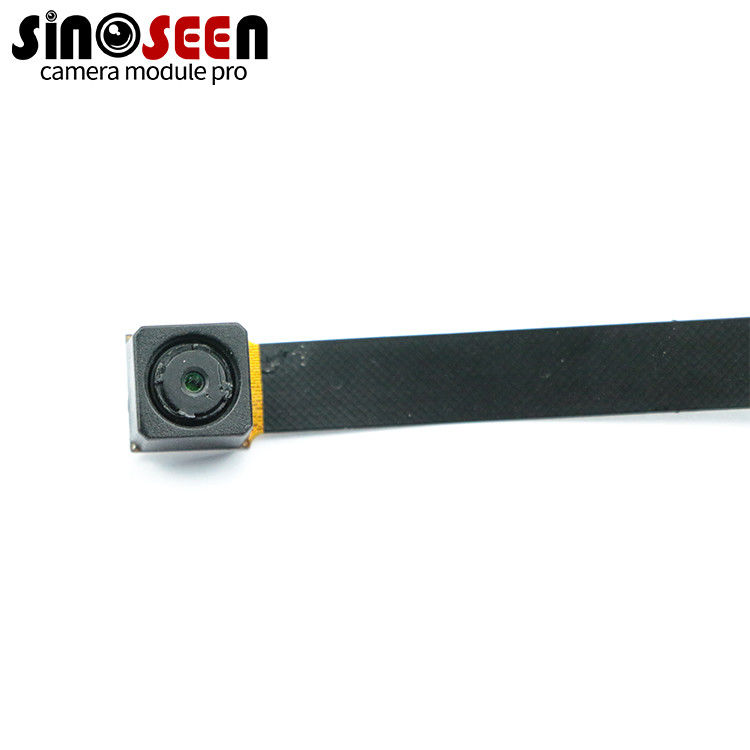

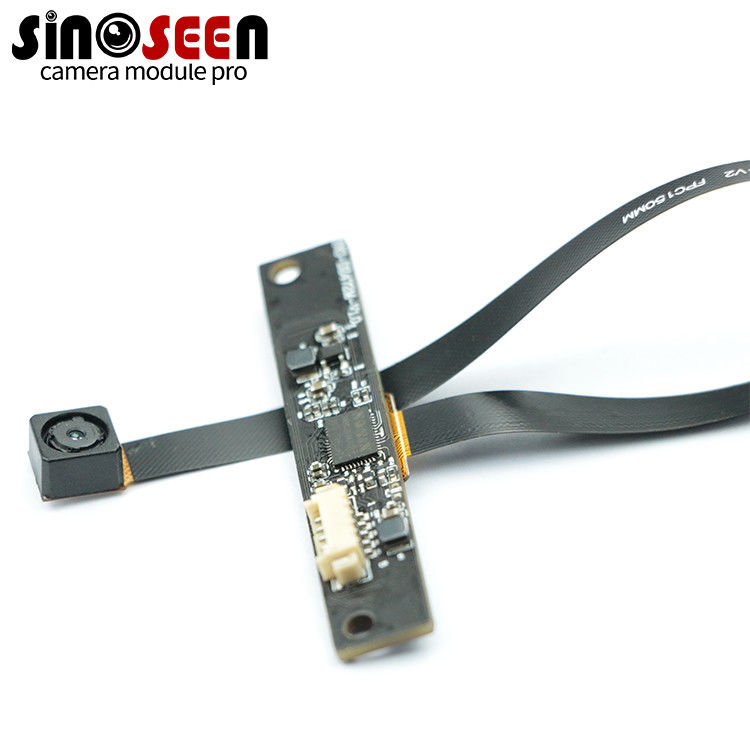

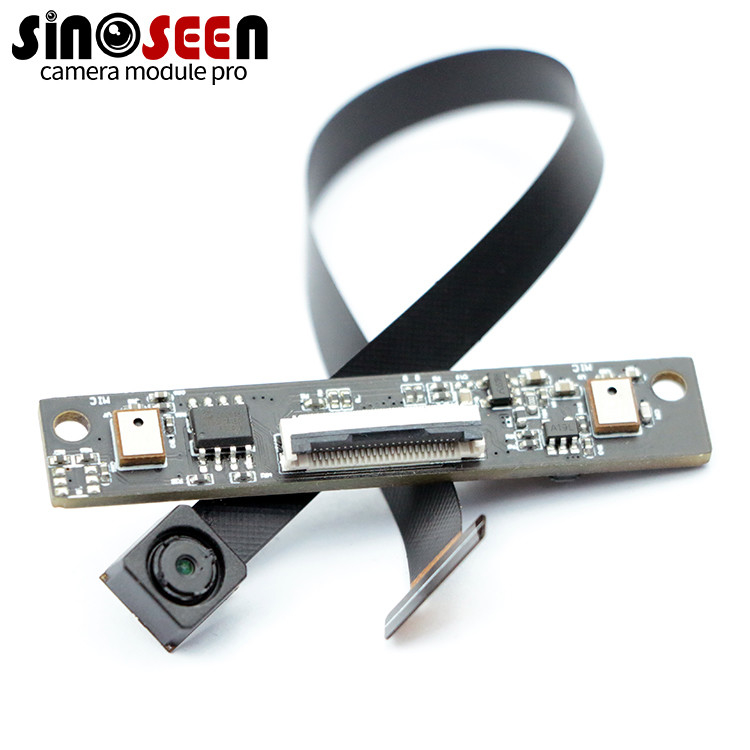

The reason why this camera module is so popular is its unique FPC+PCB+USB cable design.Structurally, the camera module consists of three parts: control board, lens part and FPC cable. The control board is 60MMx10MM and can be customized; the lens is based on a flexible PCB with a length of 150mm, so it can provide you with a variety of options and flexibility to suit your machine and equipment. The length of the USB cable varies from 50CM to 2 merters.
This 8MP 4K flexible USB camera module is widely used in many high-tech and high-demand applications, such as VR, AR, 3D, wearable, headset, glasses, robot, Internet of Things, artificial intelligence, medical, imaging, machine vision, computer vision, security , and many more.

It supports below frame rates:



MPEG

3264x2448@15fps; 2592x1944@15fps; 1920x1080@30fps; 1600x1200@30fps; 1280x720@30fps; 960x540@30fps; 848x480@30fps; 640x480@30fps; 640x360@30fps; 320x240@30fps;



YUYV2

3264x2448@2fps; 2592x1944@2fps; 1920x1080@5fps; 640x480@30fps; 320x240@30fps;



Specification



Model No
SNS-8MP-IMX179-F1
Sensor
1/3.2’’ IMX179
Pixel
8 Mega Pixel
Most effective pixels
3264(H) x 2448(V)
Pixel Size
1.4µm x 1.4µm
Compression format
MJPG / YUY2
Resolution
see above
Frame rate
see above
Shutter Type
Electronic rolling shutter
Focus type
Auto/Fixed focus
S/N ratio
36dB
Dynamic range
60dB
Interface type
USB2.0
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Lens
Focal length: 3.6mm

Lens Size: 1/3 inch

FOV: 90° (Optional)

Thread Size: M12*P0.5
Audio frequency
Support
microphone
Built-in
Power supply
USB BUS POWER
Power consumption
DC 5V, 200mA
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control (AEC)
Support
Auto White Balance (AEB)
Support
Auto Gain Control (AGC)
Not Supported
Dimension
38MM x 38MM (32MM x 32MM)
Storage temperature
-20°C to 70°C
Operating temperature
0°C to 60°C
USB cable length
Default

Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC


8MP Auto Focus 4K Camera Module USB2.0 Flexible FPC Sony IMX179 Sensor 08MP Auto Focus 4K Camera Module USB2.0 Flexible FPC Sony IMX179 Sensor 1
