CMOS OV5648 Sensor 5MP Camera Module IR Cut With 2 Microhones
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-5MP-OV5648-W1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4"Omnivision OV5648 |
|---|---|---|---|
| Resolution: | 5MP (2592*1944) | Dimensions: | 45x20mm(customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HD |
| High Light: | OV5648 CMOS Camera Module,CMOS 5MP Camera Module,IR OV5648 Camera Module |
||
Product Description

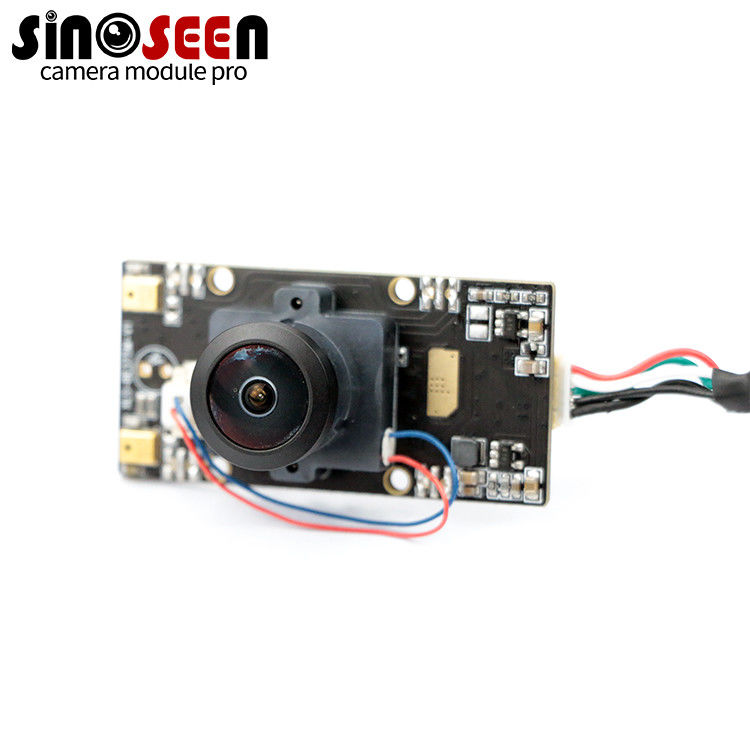

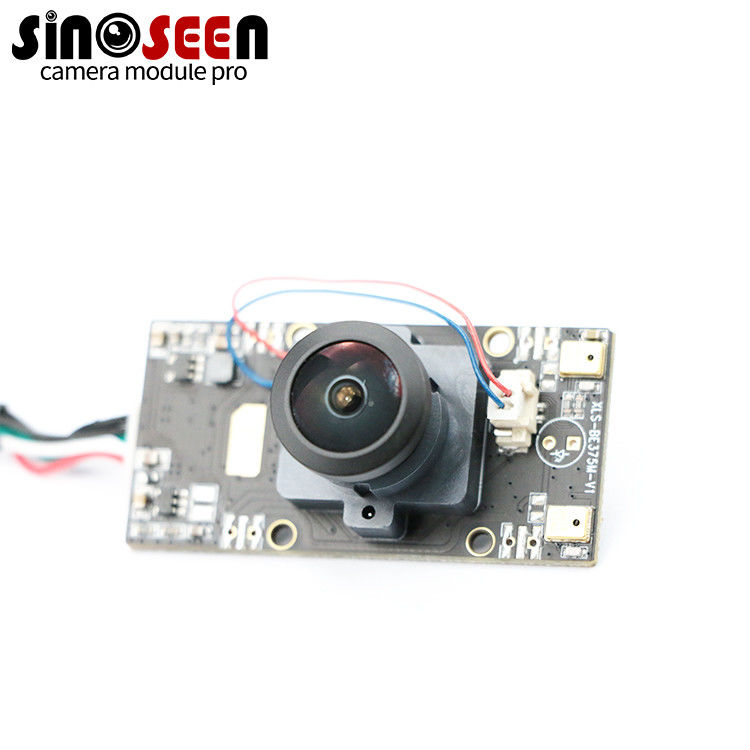

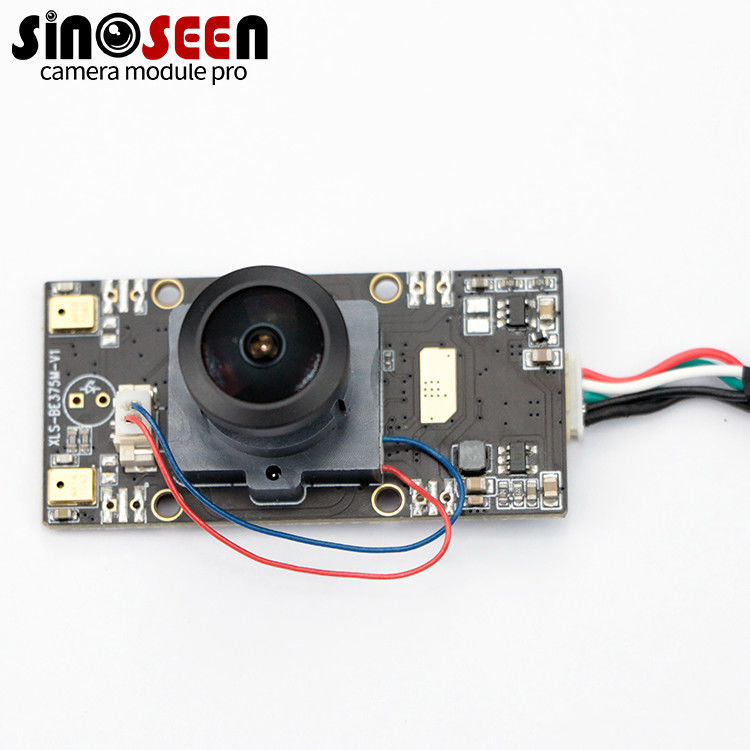

CMOS OV5648 Sensor 5MP Camera Module IR Cut With 2 Microhones
Sinoseen factory price 5MP IR cut USB Camera Module with 2 Microhones CMOS OV5648 sensor
5MP Camera Module
This is one of our best-selling camera modules. It has a resolution of 5 megapixels and an Omnivision OV5648 CMOS sensor. The image quality is very high and stable. It is widely used in the field of webcams and video conferencing.
Its size is only 45MMx20MM, which allows you to have more possibilities in the shell design. Unlike most other small camera modules that usually only have 1 microphone or no microphonic sound at all, this module has 2 built-in microphones, which is very suitable for applications with higher requirements for sound.
Of course, you can also choose other chips or other sizes according to your needs, choose fixed focus or auto focus, and whether to add LEDs. Our full set of customized services can meet all your needs.
Specification
|
Model No |
SNS-5MP-OV5648-W1 |
|
Sensor |
1/4’’ Omnivision OV5648 |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592(H) x 1944(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Image area |
3673.6µm x 2738.4µm |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
36dB |
|
Dynamic range |
72 dB @ 8x gain |
|
Sensitivity |
690mV / lux-sec |
|
Interface type |
USB2.0 high seepd |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
TTL: 23.89MM |
|
|
Lens Size: 1/3 inch |
|
|
DFOV: 80° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
45MMx20MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
