Sony IMX335 Sensor Face Recognition Camera Module USB2.0 Interface
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1031-V1.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.8" SONY IMX335 CMOS |
|---|---|---|---|
| Resolution: | 5MP 1920(H)X1080(V) | Dimensions: | (customizable) |
| Lens FOV: | (optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Starvis |
| Highlight: | IMX335 Sensor Face Recognition Camera Module,IMX335 USB Camera Module,USB2.0 1080P Camera Module |
||
Product Description
Sony IMX335 Sensor Face Recognition Camera Module USB2.0 Interface

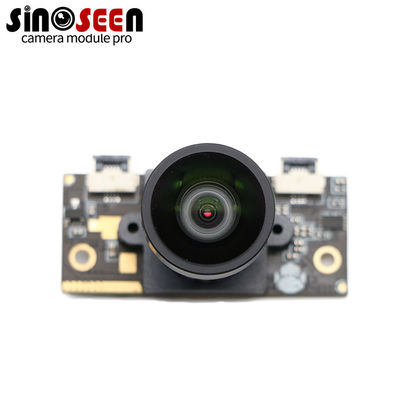

IMX335 USB Camera module
This is a camera module developed by us, using SONY IMX335 CMOS sensor, with 5MP resolution, USB2.0 interface, dynamic range up to 72 dB, advanced HDR function and digital overlay HDR to further improve image quality and contrast behavior More details are Image Anna. These features, combined with low dark current performance and no smear, further enhance its performance in applications where bright and dark areas are viewed simultaneously. This mod is very popular among dash cams. It is a module that is widely used by people.
Camera modules can also be used in security, surveillance, CCTV, industrial automation, artificial intelligence (AI), machine vision, robotics, robotics, computer vision, agriculture, education, 3D, and more.
Specification:Face Recognition USB Camera Module
|
Model No |
SNS-DZ1031-V1.1 |
|
Sensor |
1/2.8’’ SONY IMX335 CMOS |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
1920(H)X1080(V) |
|
Pixel Size |
2.0µm x 2.0µm |
|
Chroma |
Color |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Microphone |
Built-in |
|
Dynamic range |
72dB |
|
Sensitivity |
>= 2000mV |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6MM |
|
|
Lens Size: 1/2.8 inch |
|
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 150mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (compatible with 32mm*32mm) |
|
Storage temperature |
-20~80℃ |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
