HDR 5.5 Mega Pixel Industrial Camera Module 38x38mm Himax HM5532 Sensor
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-USB553-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | USB Camera Module | Sensor: | 1/2.6" Himax HM5532 |
---|---|---|---|
Resolution: | 5.5MP (2720*2080) | Dimensions: | 38x38mm(customizable) |
Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
Interface: | USB2.0 | Feature: | Industrial Grade |
High Light: | 38mm Industrial Camera Module,HM5532 Industrial Camera Module,38x38mm mini camera module |
Product Description

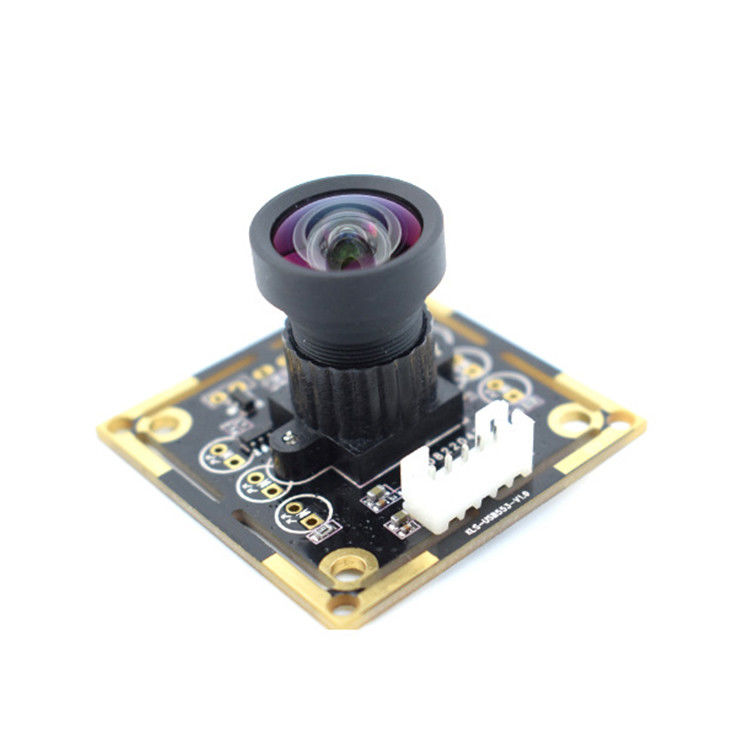

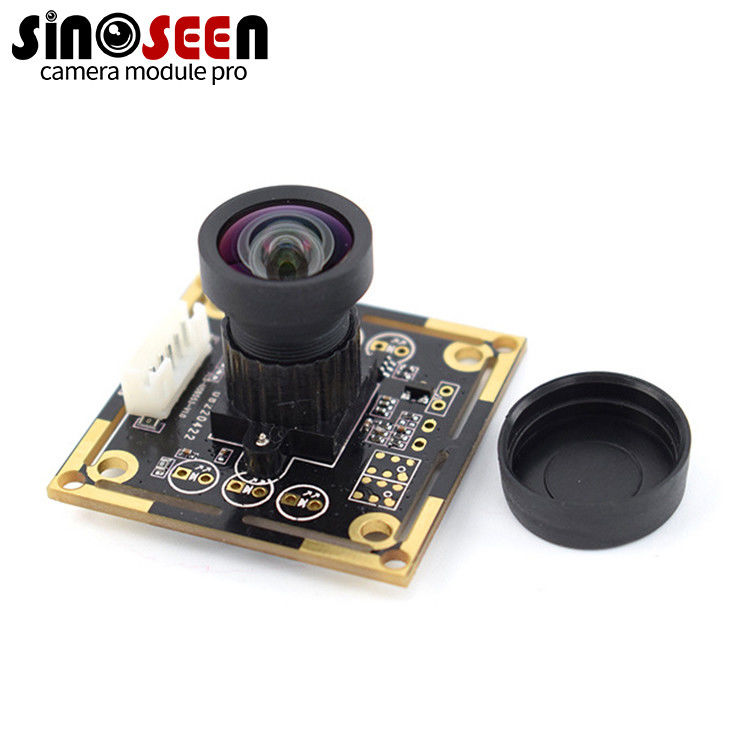

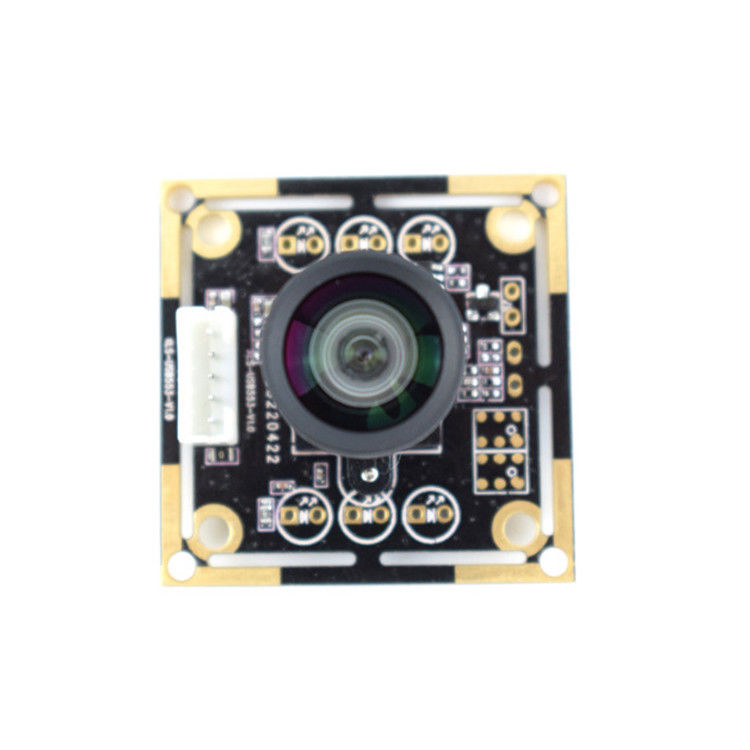

HDR 5.5 Mega Pixel Industrial Camera Module 38x38mm Himax HM5532 Sensor
HDR Industrial Grade 5MP USB Camera Module With Himax HM5532 HM5533
Camera Module
This is a HDR industrial grade 5MP USB camera module made with sensor HM5532 from Himax,HM5532 is a high performance 5MP sensor and can operate up to 30FPS at full resolution.The imaging performance is very impressive,so it widely used in many industrial application.
The current module size is standard 38x38mm,competible for 32x32mm.Without any question,you can customize it as any dimensions you want,as long as there is enough space for us to put all needed components.
Specification
Model No |
SNS-USB553-V1.0 |
Sensor |
1/2.6" Himax HM5532 |
Pixel |
5.5 Mega Pixel |
Most effective pixels |
2720 (H) x 2080 (V) |
Pixel Size |
2.0µm x 2.0µm |
Compression format |
YUYV/MJPEG |
Resolution & Frame rate |
See above |
Shutter Type |
Electronic rolling shutter |
Focus type |
Fixed focus |
Object distance |
5CM-infinity |
S/N ratio |
TBDdB |
Dynamic range |
TBDdB |
Sensitivity |
TBDmV / lux-sec |
Interface type |
USB2.0 high speed |
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue |
Lens FOV |
80° |
Power supply |
USB BUS POWER |
Power consumption |
DC 5V, 150mA |
Main chip |
DSP/SENSOR/FLASH |
Auto Exposure Control |
Support |
Auto White Balance |
Support |
Auto Gain Control |
Support |
Dimension |
38x38MM |
Storage temperature |
-20°C to 70°C |
Operating temperature |
0°C to 60°C |
USB cable length |
Default 0.5M |
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
