IMX335 Sensor 30FPS 5MP Camera Module High Dynamic Range 72dB
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-5MP-IMX335-V1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | USB Camera Module | Sensor: | 1/2.8" SONY IMX335 CMOS |
---|---|---|---|
Resolution: | 5MP (2592*1944) | Dimensions: | Customizable |
Lens FOV: | 85°(optional) | Focus Type: | Fixed Focus |
Interface: | USB2.0 | Feature: | HDR |
High Light: | HDR 5MP Camera Module,72dB 5MP Camera Module,HDR imx335 camera module |
Product Description
IMX335 Sensor 30FPS 5MP Camera Module High Dynamic Range 72dB
5MP 30FPS HDR USB Camera Module With SONY IMX335 High Dynamic Range CMOS Sensor
5MP Camera Module

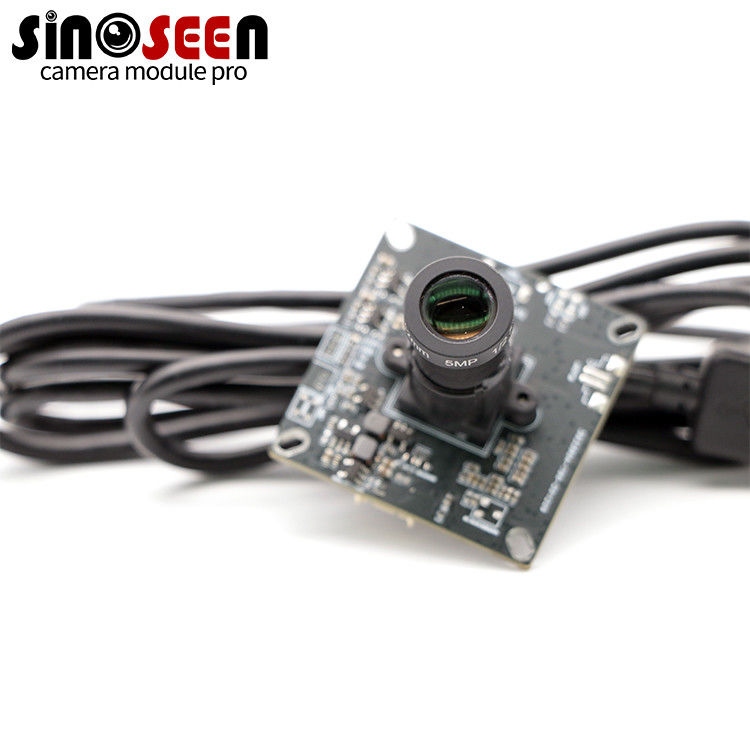

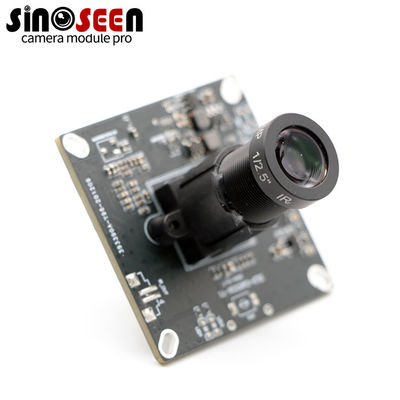

This is a 5MP USB camera module with IMX335 CMOS sensor from SONY. IMX335 is a very good chip with excellent and stable picture quality. In addition, it has HDR function. This makes the picture it shoots basically close to the picture seen by the human eye, which is very realistic.
It can also output 30FPS at full resolution, which is very smooth. So it's widely used in many applications, such as security, surveillance, closed-circuit television, industrial automation, automobiles, factory automation, surveillance, access control, artificial intelligence (AI), machine vision, robotics, robotics, computer vision, agriculture, education, 3D, inspection, vision system, imaging, etc.
Specification
Model No
|
SNS-5MP-IMX335-V1
|
Sensor
|
1/2.8’’ SONY IMX335 CMOS
|
Pixel
|
5 Mega Pixel
|
Most effective pixels
|
2592(H) x 1944(V)
|
Pixel Size
|
2.0µm x 2.0µm
|
Chroma
|
Color
|
Compression format
|
MJPEG / YUV2 (YUYV)
|
Resolution & Frame rate
|
See above
|
Shutter Type
|
Electronic rolling shutter
|
Focus type
|
Fixed focus
|
Microphone
|
Built-in
|
Dynamic range
|
72dB
|
Sensitivity
|
>= 2000mV
|
Interface type
|
USB2.0 high speed
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
Lens
|
Focal length: 3.6MM
|
|
Lens Size: 1/2.8 inch
|
|
FOV: 85°
|
|
Thread Size: M12*P0.5
|
Audio frequency
|
Optional
|
Power supply
|
USB BUS POWER
|
Power consumption
|
DC 5V, 150mA
|
Main chip
|
DSP/SENSOR/FLASH
|
Auto Exposure Control (AEC)
|
Support
|
Auto White Balance (AEB)
|
Support
|
Auto Gain Control (AGC)
|
Support
|
Dimension
|
38mm*38mm
|
Storage temperature
|
-20°C to 70°C
|
Operating temperature
|
0°C to 60°C
|
USB cable length
|
Default
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
