5MP Fixed Focus mipi Camera Module With Omnivision CMOS Sensor OV5647
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-5MP-OV5647 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 10-100USD、negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 5MP Camera Module | Sensor: | 1/4"OV5647 |
|---|---|---|---|
| Resolution: | 5mp 2592*1944 | Dimensions: | (customizable) |
| Lens FOV: | 85°(optional) | Focus Type: | Fixed Focus |
| Interface: | Mipi | Feature: | Fixed Focus |
| Highlight: | Fixed Focus MIPI Camera Module,5MP MIPI Camera Module,OV5647 Sensor 5MP Camera Module |
||
Product Description
5MP Fixed Focus MIPI Camera Module With Omnivision CMOS Sensor OV5647
This high-performance 5MP camera module features the Omnivision OV5647 CMOS sensor with MIPI interface, delivering 2592x1944 resolution video output at up to 15fps. Designed for Raspberry Pi applications and custom projects, it offers excellent image quality with Omnibsi™ technology.
Key Features
- Omnivision OV5647 5MP CMOS image sensor
- 1.4μm pixel size with 1/4" optical format
- 2592x1944 resolution at 15fps
- MIPI interface with SCCB control
- Omnibsi™ technology for enhanced performance
- Customizable lens options (FOV85° available)
- Compact, customizable dimensions
Technical Specifications
| Parameter | Value |
|---|---|
| Pixel Size | 1.4μm x 1.4μm |
| Effective Pixels | 2592*1944 |
| Image Sensor | 1/4" |
| Sensor Type | OV5647 |
| Lens View | FOV85° (Optional), F/N (Optional) |
| TV Distortion | <1% (Optional) |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -20~70℃ |
| Dimension | Customizable |

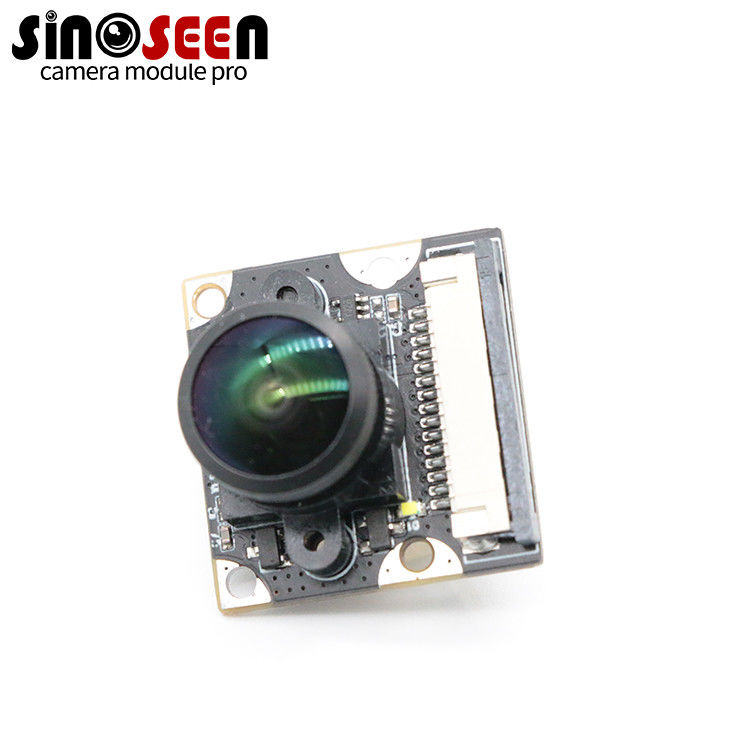

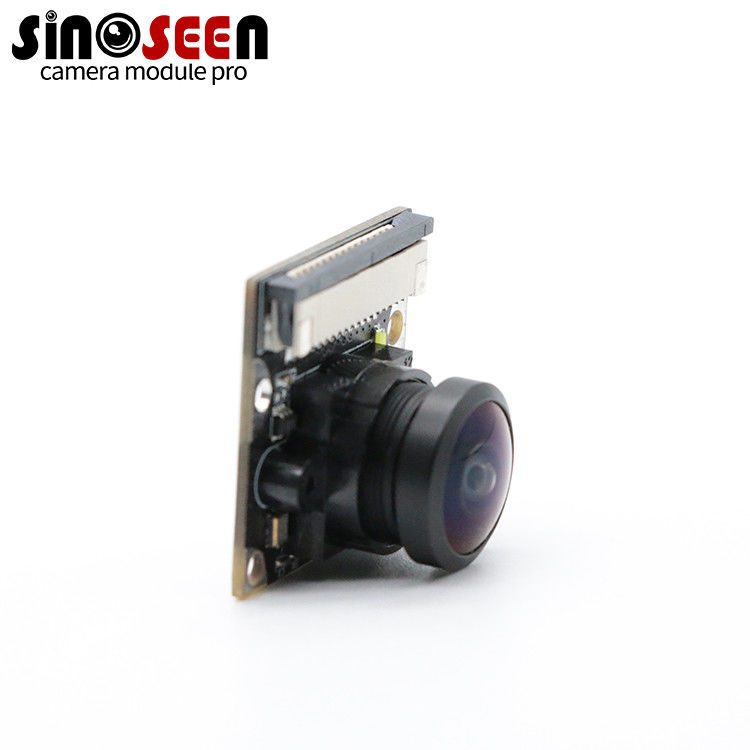

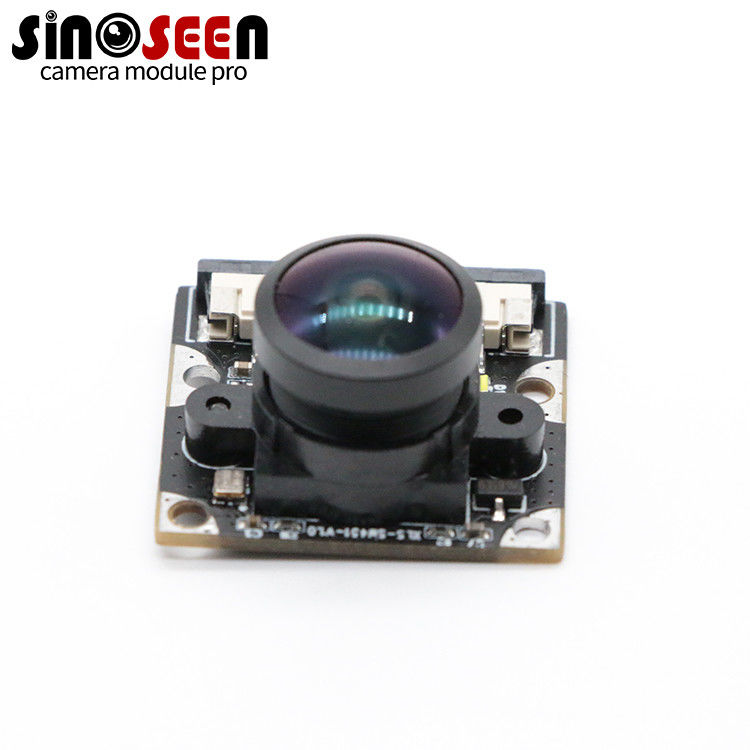

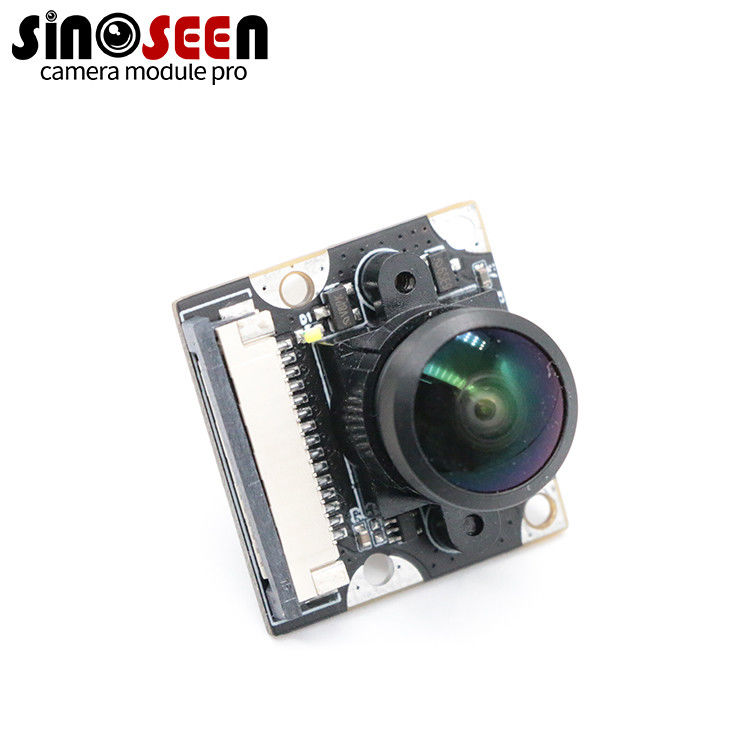

Product Images
Shenzhen Sinoseen Technology Co., Ltd
China top 10 camera module manufacturer specializing in custom USB/MIPI/DVP camera modules.
Available USB Camera Solutions
0.3MP Solutions
- Low cost: BF3703, BF2103, GC0329, GC0309, GC0307, GC032A, OV7675
- Big size: GC0308 (1/6.5"), GC0328 (1/6.5"), GC0403 (1/3"-0.4MP), BF3A03 (1/6.5")
- Global shutter: OV7251 (1/7.5", B/W)
- High frame rate: 200FPS SC031GS (1/6", B/W)
- Big size with high frame rate: OV7725 (1/4", 60FPS), OV7740 (1/5", 60FPS)
1MP Solutions
- Low cost: GC1024, GC1034, GC1064 (H264), H42, H62, SP1405, OV9712, OV9732, NT99141, SC1245, OV9760
- Small size for endoscope: OV9734, GC1009, HM1091
- Global shutter: OV9281 (1/4", B/W), OV9782 (1/4", color), AR0144 (1/4", color), AR0135 (1/3", color)
- Big size (30FPS): AR0130 (1/3", B/W), OV10635 (1/2.7", color, WDR, 960P), H65 (1/3", color, 960P)
2MP Solutions
- Normal (10FPS): GC2145 (1/5"), BF2206 (1/5"), GC2335, OV2643, HM2056, BF3925, OV2755 (1/5" HD)
- 1080P low cost: F23, F37, F35, SP2305, GC2053, GC2023, AR0330 (300W), SC2232H, C2390, IMX322, C2395, SC2315, AR0237
- 1080P small size (30FPS): OV2732 (1/4"), OV2740 (1/4"), OV2722 (1/6"), SC2145 (1/4"), HM2160 (1/6")
- 1080P@60FPS: OV2710, HM2131, IMX307, C2395, SC2315, F35, SC2310
- 1080P-HDR (30FPS): OV2735, OV2718, PS5268, IMX307
- 1080P-WDR (30FPS): AR0230, AR0331 (300W)
- 1080P-Starvis (30FPS): IMX291, IMX307, IMX323, IM290
- 1080P big size: IMX385
- 1080P global shutter: OG02B10 (color), OG02B1B (B/W)
5MP Solutions
- 500W (15FPS): OV5648, GC5025, OV5640, OV5643, OV5693 (up to 30FPS), 4EC, OV5650
- FHD 500W (30FPS): OS05A10, PS5520, HM5532, MI5100, MT9P001, IMX335, SC5335, AR0521, JXK05, OV4689 (2K, 1/3")
8MP Solutions
- 800W (15FPS): IMX219 (1/4"), S5K3H7, IMX179, C8390
- 8M-4K UHD (30FPS): IMX317, IMX415, OS08A10 (big size 1/1.8")
13MP-16MP Solutions
- IMX214 (13M), IMX258 (13M), IMMX298 (16M)
USB3.0 Solutions
- IMX335, OV5648, IMX179, IMX307, PS5268
H264 Solutions
- GC1064, OV2710, OV2735, OV9732, AR0130, AR0230, AR0330, H65, H62, IMX291, IMX322, IMX323, OV2718, OV2732
