Auto Focus Omnivision Ov5640 Camera Module 5 Mega Pixel Flexible FPC PCB
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-5MP-OV5640-F1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4"Omnivision OV5640 |
|---|---|---|---|
| Resolution: | 5MP (2592*1944) | Dimensions: | 55x10mm(customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | FPC+PCB Design |
| High Light: | Ov5640 Camera Module,5MP Ov5640 Camera Module,odm ov5640 module |
||
Product Description
Auto Focus Omnivision Ov5640 Camera Module 5 Mega Pixel Flexible FPC PCB
Auto Focus Flexible FPC and PCB 5MP USB2.0 Camera Module with OV5640 sensor
Ov5640 Camera Module

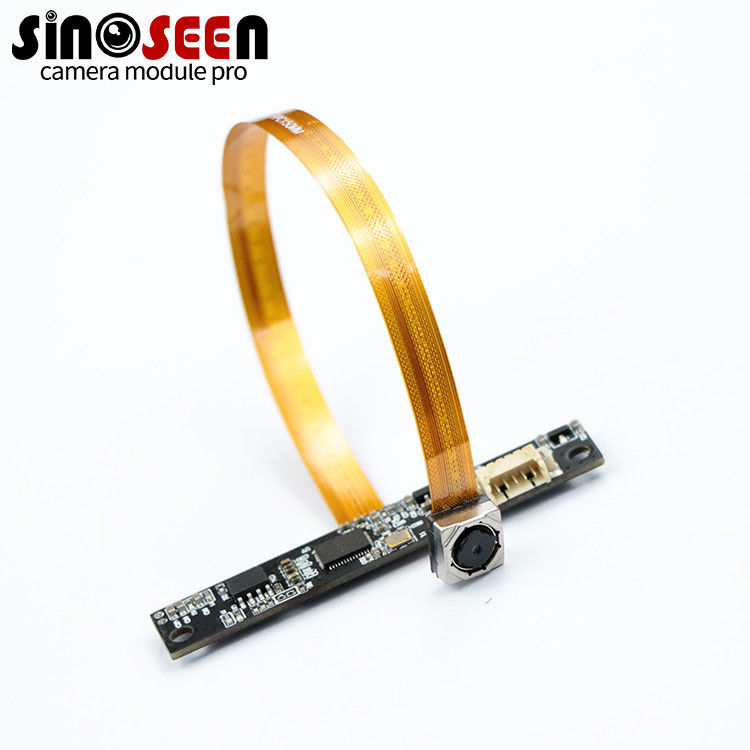

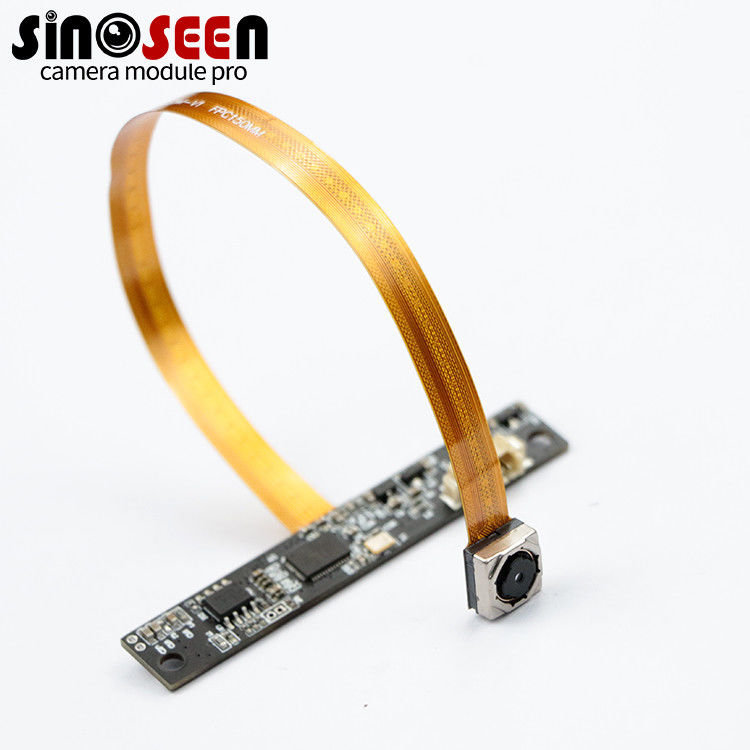

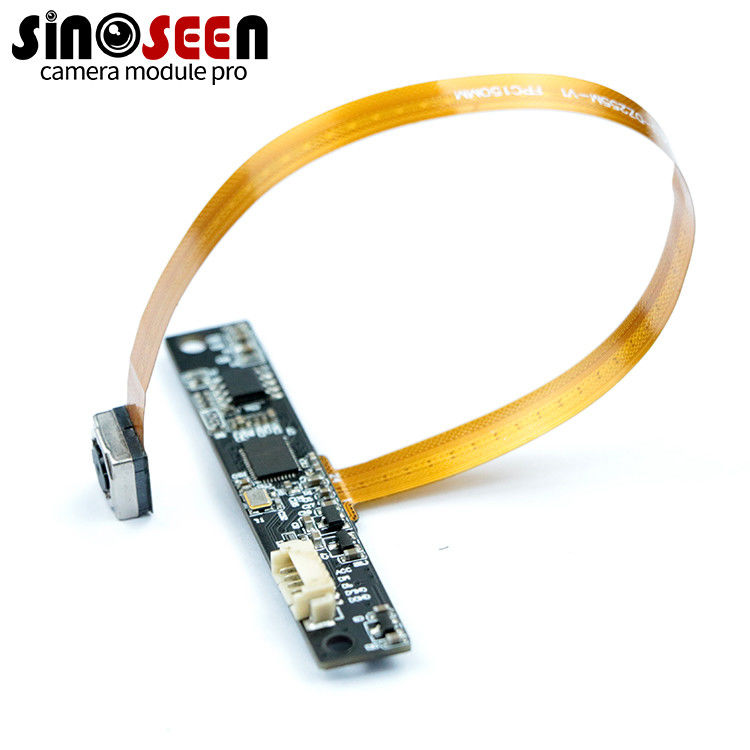

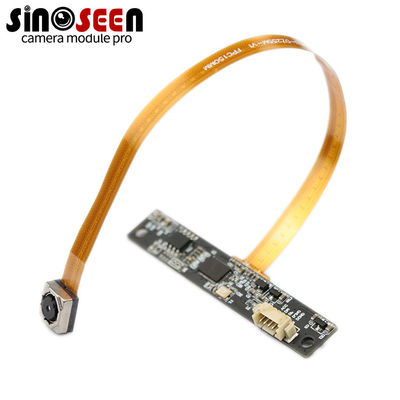

This is a USB camera module that we designed according to the customer's special structural requirements for door bell camera. It is a 5 megapixel with a high-quality Omnivision OV5640 CMOS image sensor. It is autofocus. Unlike most of our other 5MP camera modules, which consist of 2 parts, this module consists of 3 parts: a flexible cable with auto focus lens, a PCB control board with DSP, and a USB cable. We designed it in this way, because it can fit almost any of your products and applications, no matter how small the space is, you can place it in any position and at any angle.
The size of the PCB control board is 55mm * 10mm. We can adjust its size and shape according to your requirements. The length of the flexible part with lens is 150mm currently. We can also change its length according to your requirements, but try to keep it within 200mm, because Too long length may cause unstable transmission problems
Specification
|
Model No |
SNS-5MP-OV5640-F1 |
|
Sensor |
1/4’’ Omnivision OV5640 CMOS |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592 (H) x 1944 (V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Image area |
3673.6μm x 2738.4μm |
|
Compression format |
YUYV/MJPEG |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Object distance |
5CM-infinity |
|
S/N ratio |
36dB |
|
Dynamic range |
68dB |
|
Sensitivity |
600mV / lux-sec |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue |
|
Lens FOV |
80° |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 150mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
55MM x 10MM for PCB |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default 0.5M |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
