OV5648 5MP AF Plug And Play Raspberry Pi Camera Module USB For Face Recognition
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1018-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4"Omnivision OV5648 |
|---|---|---|---|
| Resolution: | 5MP (2592*1944) | Dimensions: | Customizable) |
| Shutter: | Roller Shutter | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | HD |
| High Light: | 5MP Raspberry Pi Camera Module,OV5648 5MP Camera Module,USB2.0 Raspberry Pi Camera Module |
||
Product Description
5 million OV5648 AF plug and play support Raspberry Pi USB2.0 camera module for face recognition
Auto Focus USB camera module

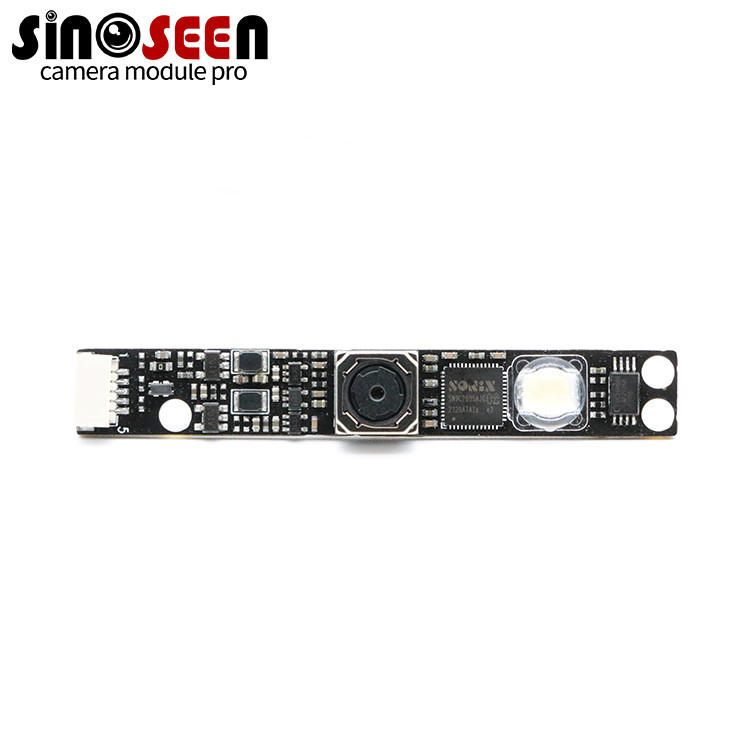

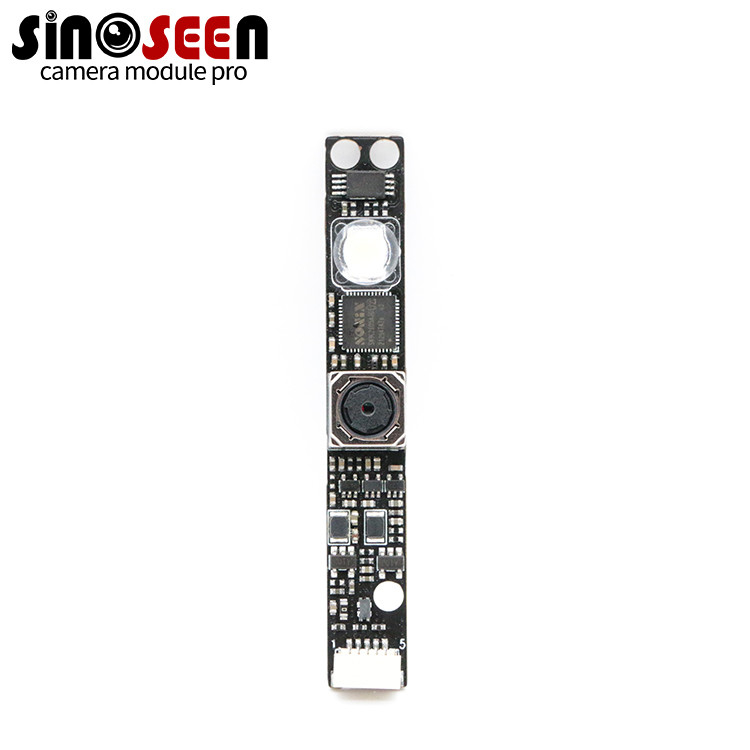

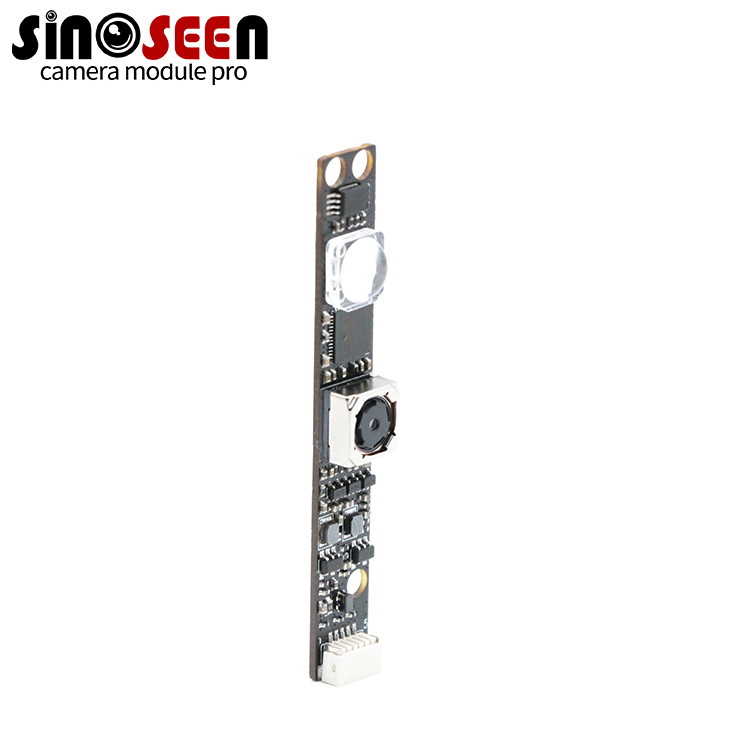

This is a USB camera module based on OV5648, 5 million high-definition pixels, auto-focus function, the interface type is USB2.0, and the picture resolution is up to 2592×1944.
Support UVC protocol, no need to drive, plug and play. And the mod is small enough to be easily embedded into various devices. Raspberry Pi and Jetson Nano are supported.
It can be used for high-definition cameras, high-definition recognition, education booths, face recognition, security monitoring, video conferencing all-in-one machines, advertising machines, etc.
Specification
|
Model No |
SNS-DZ1018-V1.0 |
|
Sensor |
1/4’’ Omnivision OV5648 |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592(H) x 1944(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Image area |
3673.6µm x 2738.4µm |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Auto Focus |
|
S/N ratio |
34dB |
|
Dynamic range |
67dB @ 8x gain |
|
Sensitivity |
690mV / lux-sec |
|
Interface type |
USB2.0 high seepd |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Operating temperature |
30°C to 70°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
