Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-48-YD8H01-V1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4" Omnivision OV5643
Resolution: 5MP (2592*1944) Dimensions: Customizable
Lens FOV: 70°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HD
High Light:

RoHS 5MP Camera Module

,

5MP OV5643 Camera Module

,

OV5643 Camera Module

Product Description

Fixed Focus IR Filter Lens 5MP Camera Module Omnivision OV5643 Sensor

Customizable HD 5MP Fixed Focus IR Filter Lens USB Camera Module With Omnivision OV5643

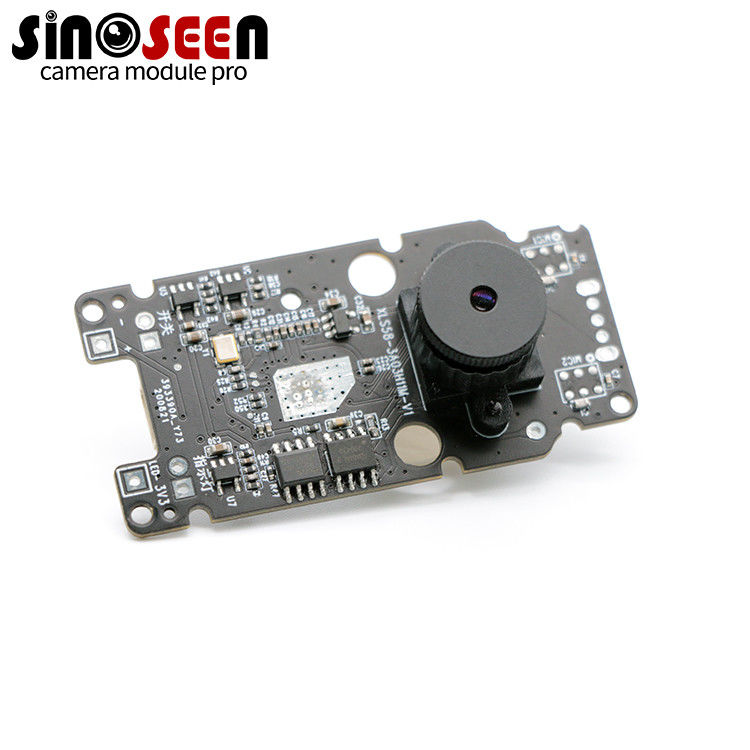

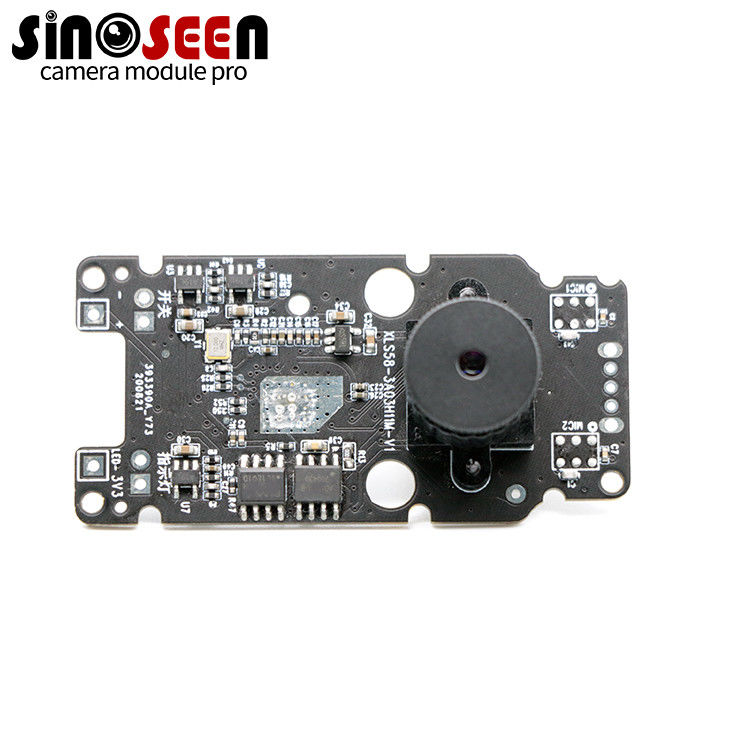

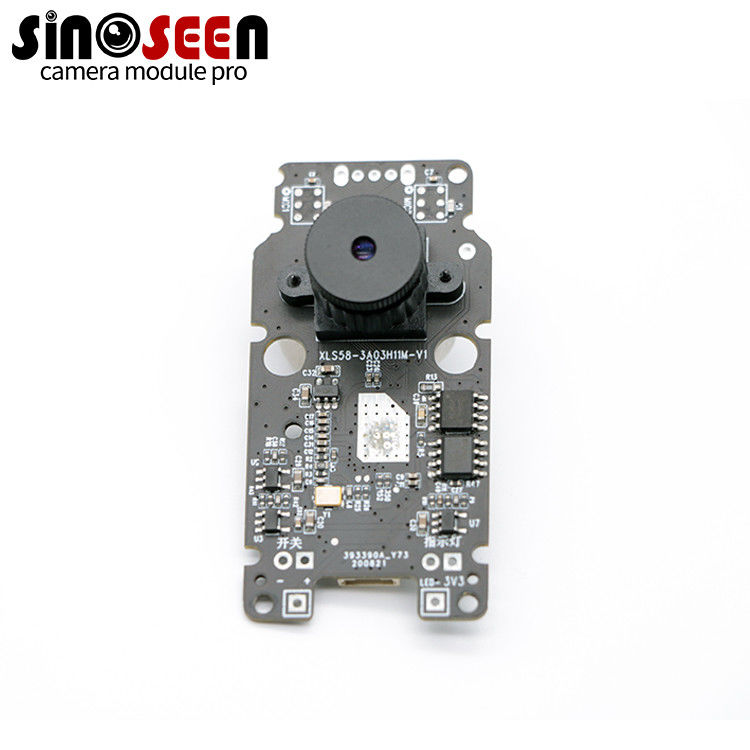

This is a 5MP HD fixed focus USB camera module, using Omnivision's OV5643 COMS sensor. Like OV5640 and OV5648, OV5643 is a 5MP HD sensor that is widely used and accepted and recognized by customers, and has a very stable and excellent picture performance.



As you can see,it is not with a standard 38x38mm or 32x32mm dimension.It is totally customized as customer's housing.If you need,we can also customize your camera module as the size you need and change any lens with a proper FOV for you.




Specification



Model No

SNS-48-YD8H01-V1

Sensor

1/4" Omnivision OV5643

Resolution

5 Mega Pixel

Most effective pixels

2592(H) x 1944(V)

Pixel Size

1.4µm x 1.4µm

Image area

5.70mm(H) x 4.28mm (V), 7.13mm diagonal

Compression format

YUY2/MJPG

Resolution & Frame rate

2592 x1944@ 15fps

1920x1080 @30fps

1280x960 @ 45fps

640x480 @ 60 fps

320x240 @ 90fps

Shutter Type

Electronic rolling shutter

Color filter array

RGB Bayer pattern

Focus type

Fixed focus

Interface type

USB2.0

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Focal length: 3.6MM

Lens Size: 1/2.5 inch

FOV: 70°

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 200mA

Main chip

DSP/SENSOR/FLASH

Automatic Exposure Control (AEC)

Support

Automatic White Balance (AEB)

Support

Automatic Gain Control (AGC)

Support

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 55°C

USB Wire

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC

Fixed Focus IR Filter Lens 5MP Camera Module Omnivision OV5643 Sensor 0Fixed Focus IR Filter Lens 5MP Camera Module Omnivision OV5643 Sensor 1Fixed Focus IR Filter Lens 5MP Camera Module Omnivision OV5643 Sensor 2Fixed Focus IR Filter Lens 5MP Camera Module Omnivision OV5643 Sensor 3

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Camera module customization process





1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.



2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
