720P 1080P Stereo Camera Module 60x8mm With Himax HM2056 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-PC825M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/5" Himax HM2056 |
|---|---|---|---|
| Resolution: | 2MP 1620*1220 | Dimensions: | 60x8mm (customizable) |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Compact Design |
| High Light: | HM2056 Stereo Camera Module,2MP 720P Stereo Camera Module,2MP 30FPS digital camera module |
||
Product Description
720P 1080P Stereo Camera Module 60x8mm With Himax HM2056 Sensor

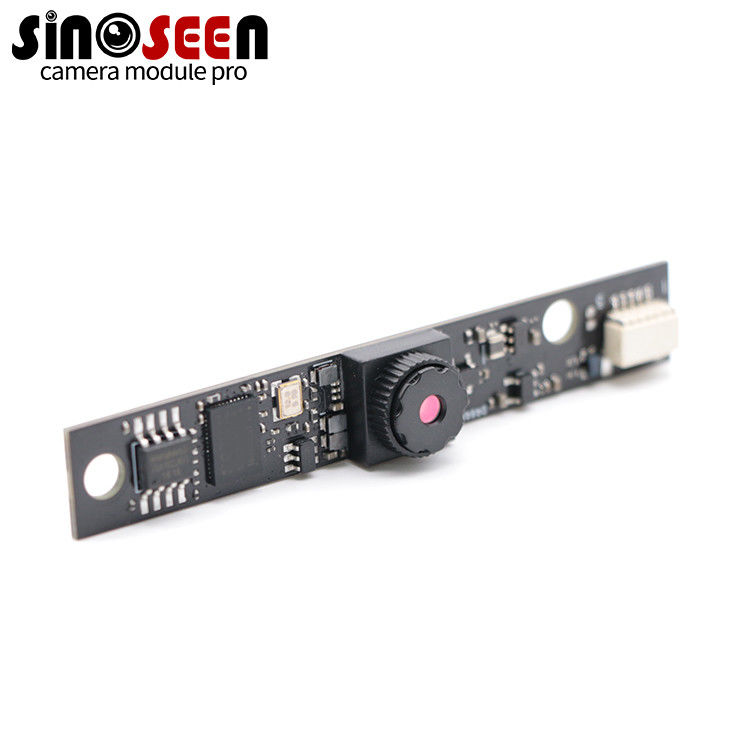

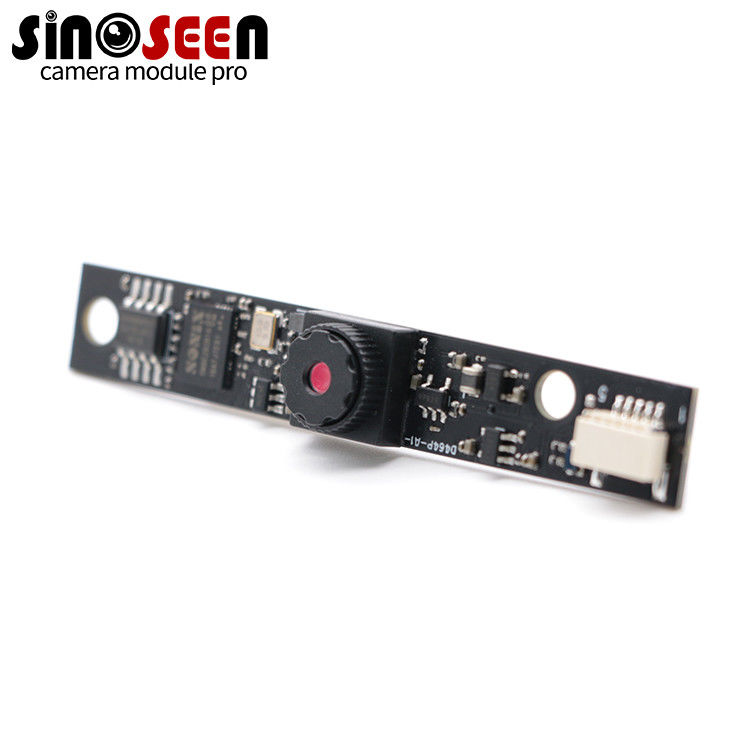

Compact Design 2MP USB Camera Module With Himax HM2056 For Limited Space Application
This is a 2MP USB camera module that we designed for a customer's small advertising player. It uses Himax HM2056 chip. The chip size of HM2056 is only 1/5 inch, which is very small among many 2MP chips. This allows it to be designed so compact yet capable of reaching 2MP resolution.
If your space is very limited, then this long and compact design will be a very good attempt. Of course, if you think this is still too big, we have other solutions that can make it smaller.
Specification:Camera Module
|
Module No. |
SNS-ZK01-V1.0 |
|
Module Size |
60mm ×8.0mm × 4.5mm |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed focus |
|
Object distance |
15CM-130CM |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
black |
|
interface |
USB 2.0 |
|
Power |
USB bus power |
|
Operating system request |
Win2000,Win XP,Win7 or Linux,Android |
|
Package |
Anti-electrostatic tray |
|
Certifications |
FCC and CE |
|
Sensor Type |
HM2056 (1/5” ) |
|
Active Array Size |
1620*1220 |
|
Sensitivity |
1500mV/(Lux·sec) |
|
Pixel Size |
1.75µm x 1.75µm |
|
Maximum Image Transfer Rate |
720P:15fps |
|
S/N Ratio |
36dB |
|
Dynamic Range |
70dB |
|
Package |
BGA-36pin |
|
Lens Construction |
2P+IR |
|
F/No |
2.8±5% |
|
EFL |
2.85±5% |
|
BFL(Optical) |
2.45mm |
|
FOV |
60° |
|
TV Distortion |
<1.5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
USB suspend out |
|
Fixed Pattern Noise |
< 0.03% of VPEAK-TO-PEAK |
|
Package |
QFN-46pin |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
