Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-PS5268-M1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: MIPI Camera Module Sensor: 1/2.7" PrimeSensor PS5268
Resolution: 2MP 1928(H) X 1088(V) Dimensions: Customizable
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: MIPI Feature: HDR
High Light:

HDR OEM Camera Modules

,

1080P OEM Camera Modules

,

HDR machine vision camera module

Product Description

High Sensitivity OEM Camera Modules Full HD 1080p HDR Auto Exposure

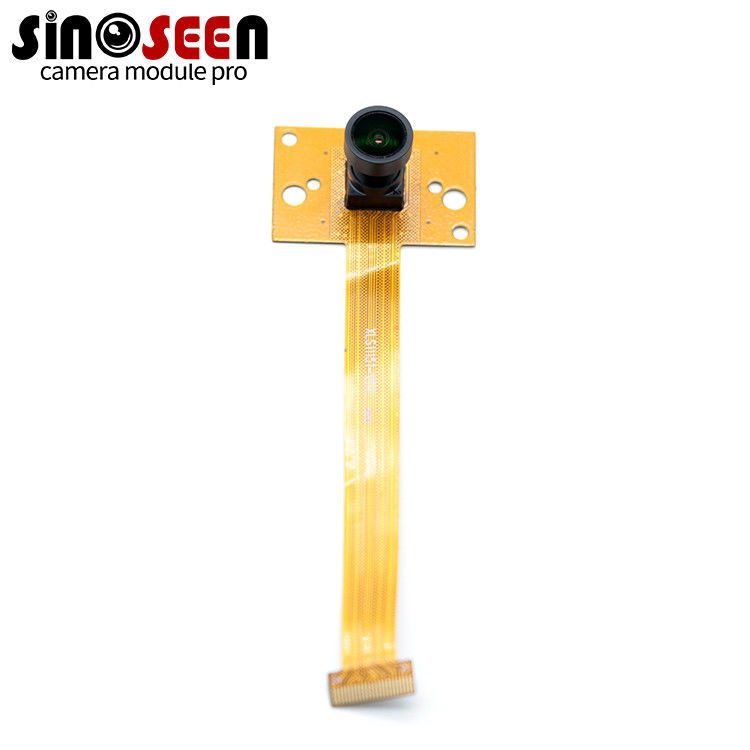

OEM Low Power Consumption High Sensitivity Full HD 1080P HDR MIPI Camera Module



This is a 2MP MIPI camera module with sensor PS5268 from PrimeSensor.The PS5268 is a low power, highly integrated CMOS image sensor that output of 1920x1080 (Full HD-1080p) pixels with rolling shutter readout. It embedded the new FinePixel™ and HDR sensor technology to perform the excellent image quality and single-shot high dynamic range synthesized image output. PS5268 outputs linear 14-bit or local tone mapped 12-bit raw data through MIPI CSI-2 interface with very low power consumption.



The PS5268 can be programmed to set the exposure time for different luminance condition via I2CTM serial control bus. Embedded HDR image synthesis with local tone mapping to deliver high performance, cost effective and time to market for high resolution HDR application. By programming the internal register set, it performs on-chip black level correction and high temperature image quality control.



It has below features


Image size: 1928 x 1088 pixels with Bayer-RGB color filter array and micro-lens
Output format:
- 14bit Linear HDR-RAW RGB
- 12bit Local Tone Mapped RAW RGB
- 10bit Linear RAW RGB
Output interface
- 12bit parallel DVP output
- 2-lane MIPI output (up to 800Mbps per lane)
I2CTM Interface with two kinds of Slave_ID
Low Power consumption
High sensitivity
Support on-chip HDR synthesis


Image sensor processor functions:
- Automatic black-level calibration
- Embedded Local Tone Mapping
- Black sun cancellation
Support sensor frame synchronization
On-chip PLL (input_clock / PLL_m >= 1MHz)
On-chip column A/D converter
On-chip manual analog gain control
Continuous variable frame time & exposure time
Support WOI and subsampling
Support dummy line & pixel timing
Support output Hsync at Vsync
Support 1.7V~3.3V I/O
Support Fast Auto Exposure (FAE) function



Applications

Surveillance HD-CCTV Camera#Surveillance IP Camera#Car Video Recorder#Video Door Phone

Specification

Module No

SNS-2MP-PS5268-M1

Pixel Size

3.0μm x 3.0μm

Effective Pixels

1928H×1088H

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

1080p: 1920x1080 @ 60fps

1080p: 1920x1080 HDR-LTM @30fps

Image Sensor

1/2.7"

Sensor Type

PrimeSensor PS5268

Lens view

FOV100°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

Analog: 3.3 V   Digital: 1.2 V   I/O: 1.8V / 3.3V

Operating temperature

-30~85℃

Storage temperature

-20~70℃

Dimensions

Customizable
