Big Size 2MP CCTV Camera Module 1920x1080 Pixels SONY IMX385 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-IMX385-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2" SONY IMX385 |
|---|---|---|---|
| Resolution: | 2MP 1920(H) X 1080(V) | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | Analog | Feature: | WDR |
| Highlight: | IMX385 cctv camera module,WDR 2MP cctv camera module,IMX385 ip camera module |
||
Product Description

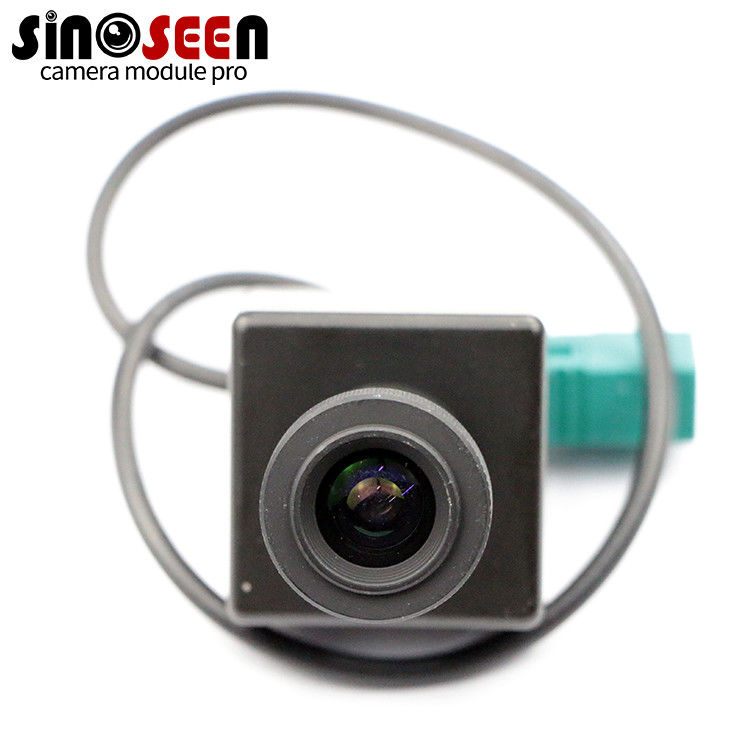

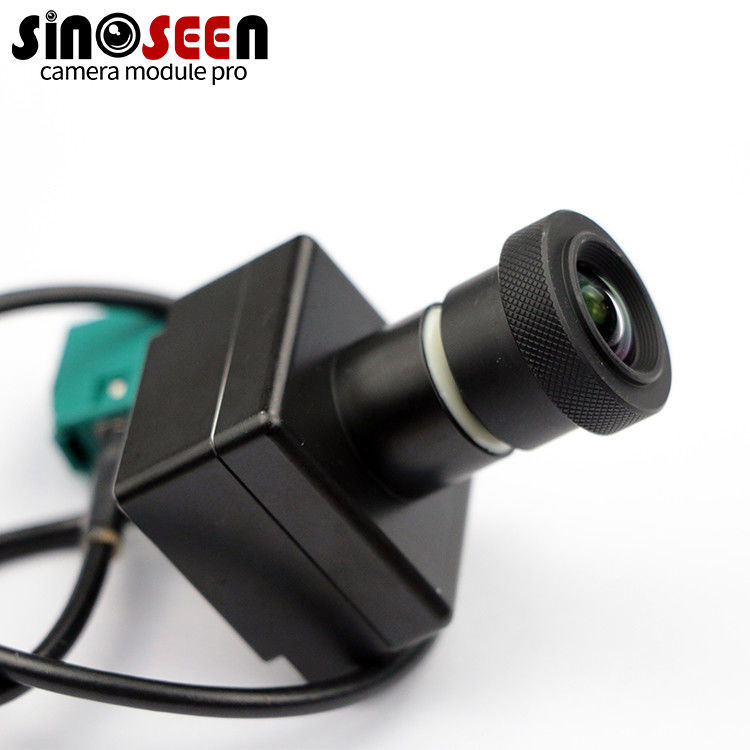

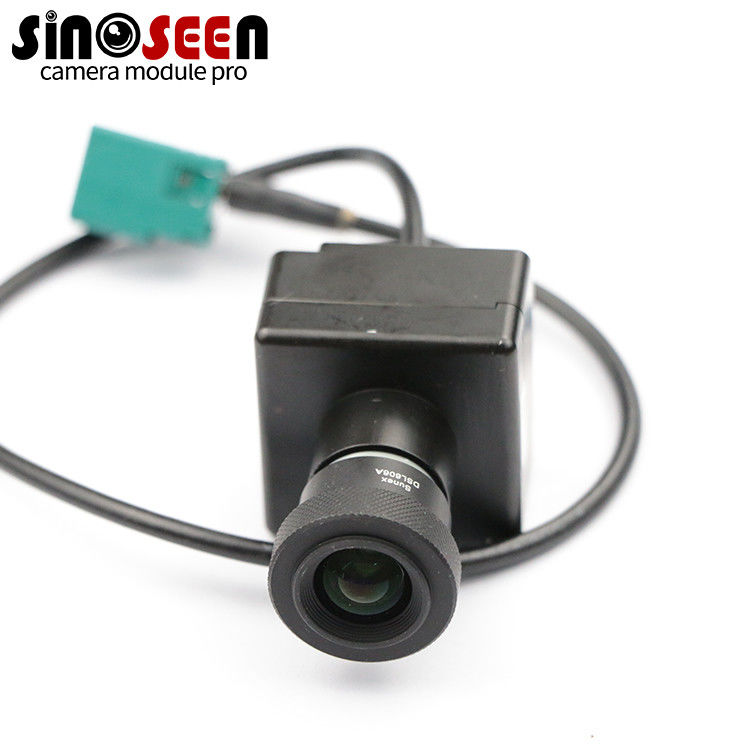

Big Size CCTV Camera Module 1920x1080 Pixels SONY IMX385 Sensor
2MP 1/2 Inch Big Size SONY IMX385 Sensor Analog WDR Camera Module With Housing
2MP OEM Camera Module
This is a 2MP WDR camera module with SONY IMX385 sensor,The IMX385 is a diagonal 8.35 mm (Type 1/2) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 3.3 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time. (Applications: Surveillance cameras)
Specification
|
Model No
|
SNS-2MP-IMX385-V1
|
|
Sensor
|
1/2’’ IMX385
|
|
Pixel
|
2 Mega Pixel
|
|
Most effective pixels
|
1920(H) x 1080(V)
|
|
Pixel Size
|
3.75µm x 3.75µm
|
|
Resolution
|
see above
|
|
Frame rate
|
see above
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
