Small Size Fixed Focus OEM Camera Modules Flexible FPC 640×480 Pixels
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-18903-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | DVP Camera Module | Sensor: | 1/10" GalaxyCore GC032A |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | DVP | Feature: | Low Power |
| High Light: | GC032A OEM Camera Modules,0.3MP FPC OEM Camera Modules,0.3MP fpc camera module |
||
Product Description

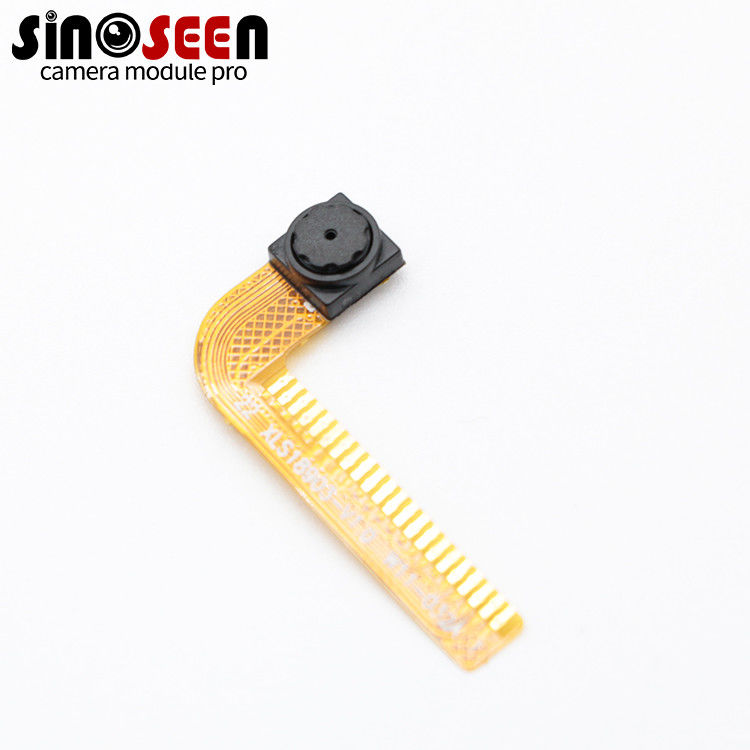

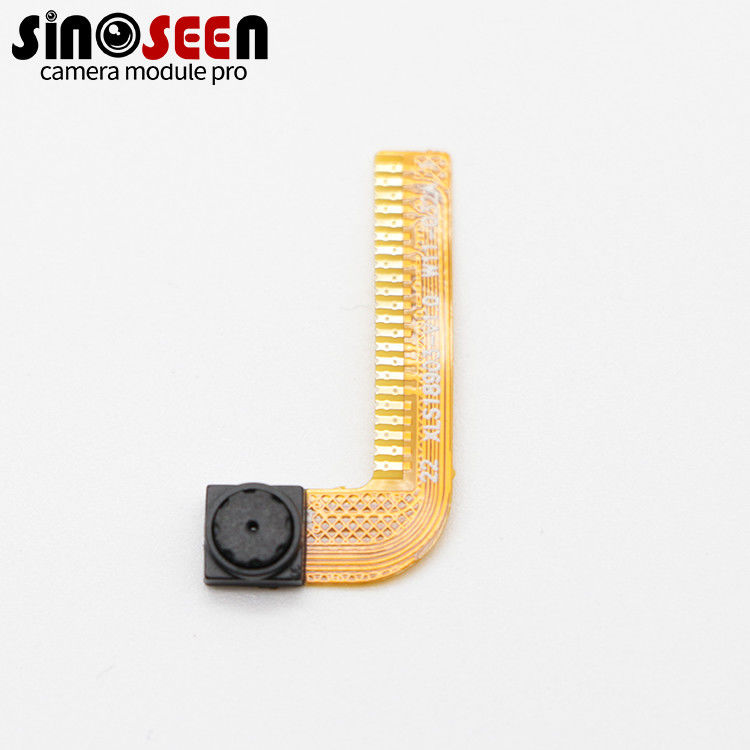

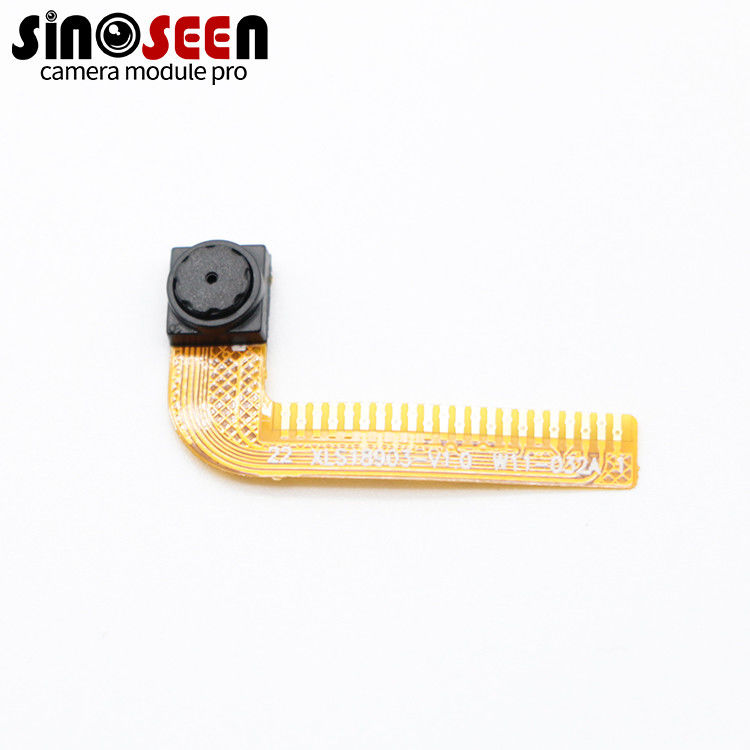

OEM Small Size Fixed Focus Flexible FPC 0.3MP DVP Camera Module
OEM Camera Modules
This is another 0.3MP fixed focus DVP camera module with GalaxyCore GC032A CMOS image sensor for cheap mobile phone rear cameras application.The GC032A features 640H x 480V resolution with 1/10-inch optical format, and 4-transistor pixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor.
|
Module No |
SNS-18903-V1.0 |
|
Pixel Size |
2.2μm x 2.2μm |
|
Effective Pixels |
640×480 |
|
Video output |
Raw Bayer10bit/8bit |
|
Image Sensor |
1/10" |
|
Sensor Type |
GalaxyCore GC032A |
|
Lens view |
FOV80°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:2.7~3.0V DOVDD:1.7~3.0V DVDD:1.7~1.9V |
|
Operating temperature |
-20～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
