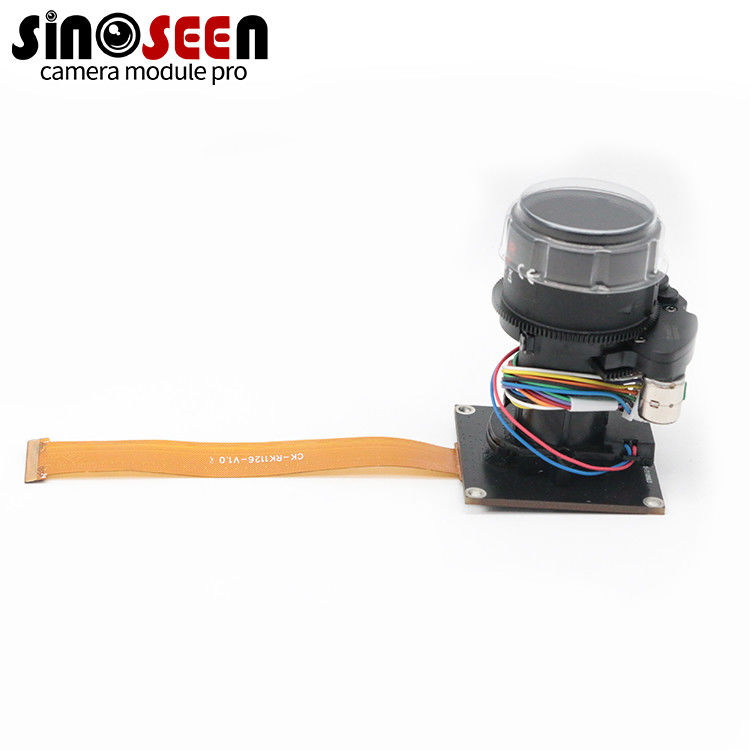

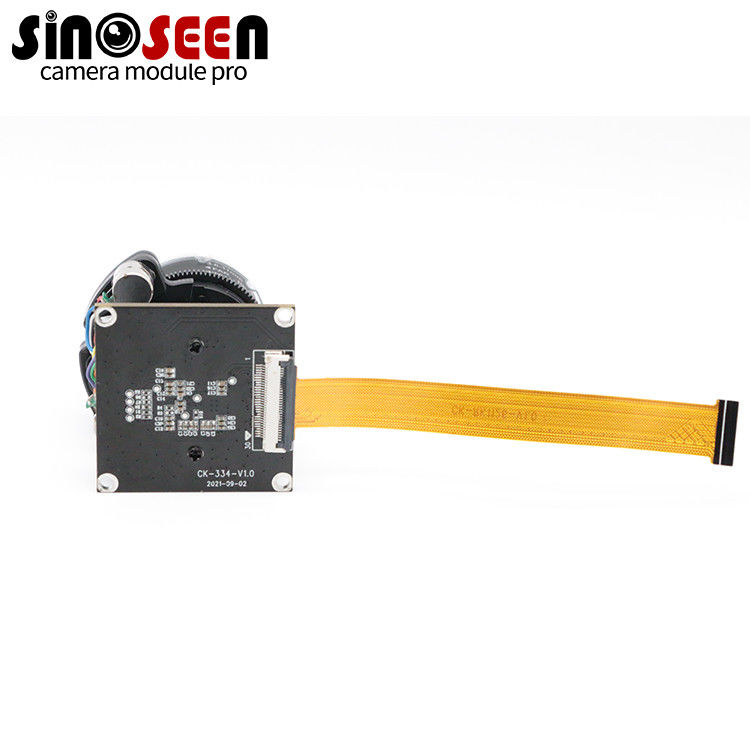

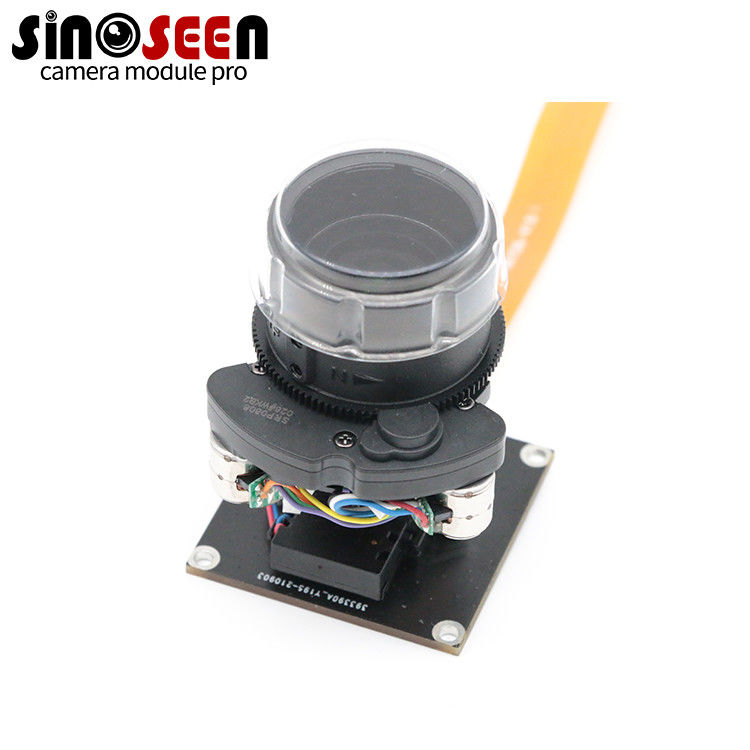

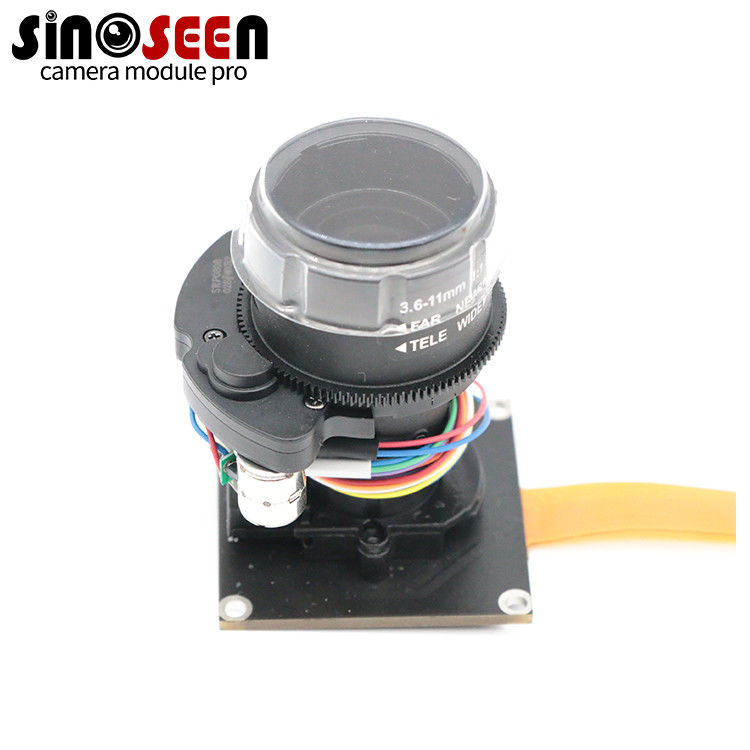

OEM 8MP Optical Zoom 4K USB Camera Module With IMX415 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-8MP-IMX415-STY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.8'' SONY IMX415 CMOS |
|---|---|---|---|
| Resolution: | 8MP (3840*2160) | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Optical Zoom |
| Interface: | USB2.0 | Feature: | 4K |
| High Light: | Optical Zoom 4K USB Camera Module,IMX415 Sensor USB Camera Module,OEM 8MP Camera Module |
||
Product Description
Flexible FPC And PCB 4K USB Camera Module 8mp Optical Zoom With IMX415 Sensor.
OEM 8mp Optical Zoom 4k Flexible FPC And PCB USB Camera Module With IMX415 Sensor.
4K USB Camera Module
Features:
Size: 1/2.8
The maximum resolution is 3840*2160
Support optical zoom 4k high-definition pixels, can shoot clearer images in low light environments.
With high dynamic function, it can perfectly restore the authenticity of the picture
Application: HD photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition, etc.
|
Model No |
SNS-8MP-IMX415-STY |
|
Sensor |
1/2.8’’ SONY IMX415 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.45µm x 1.45µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 100 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
