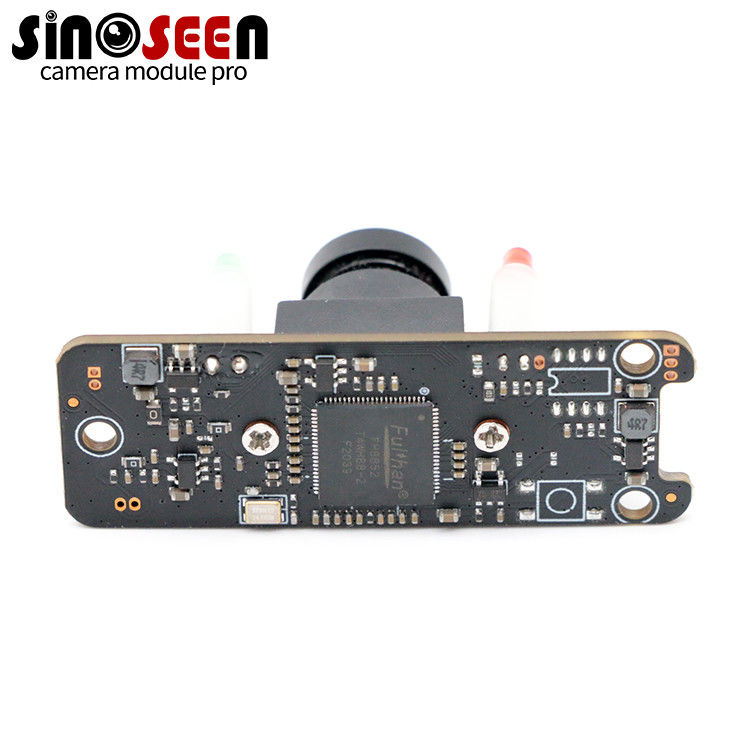

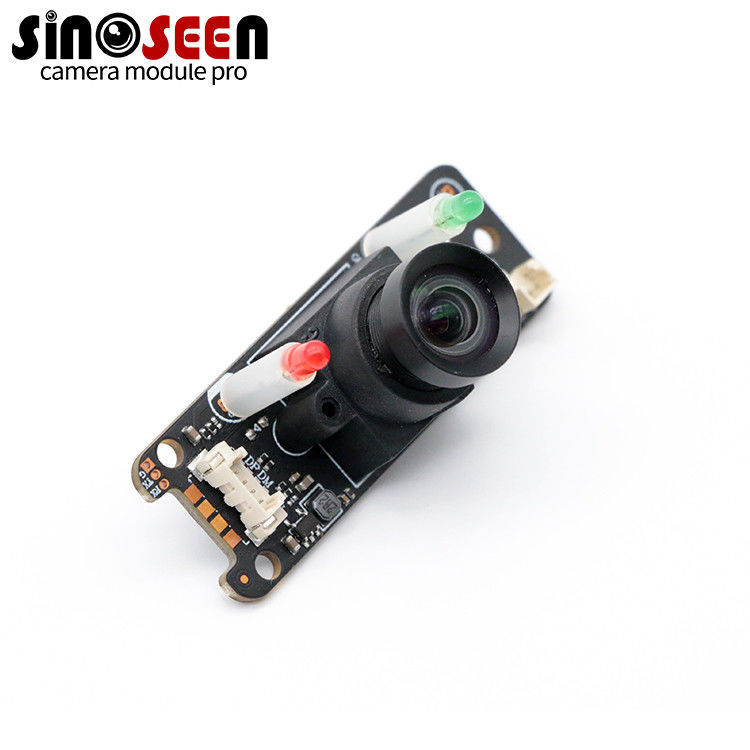

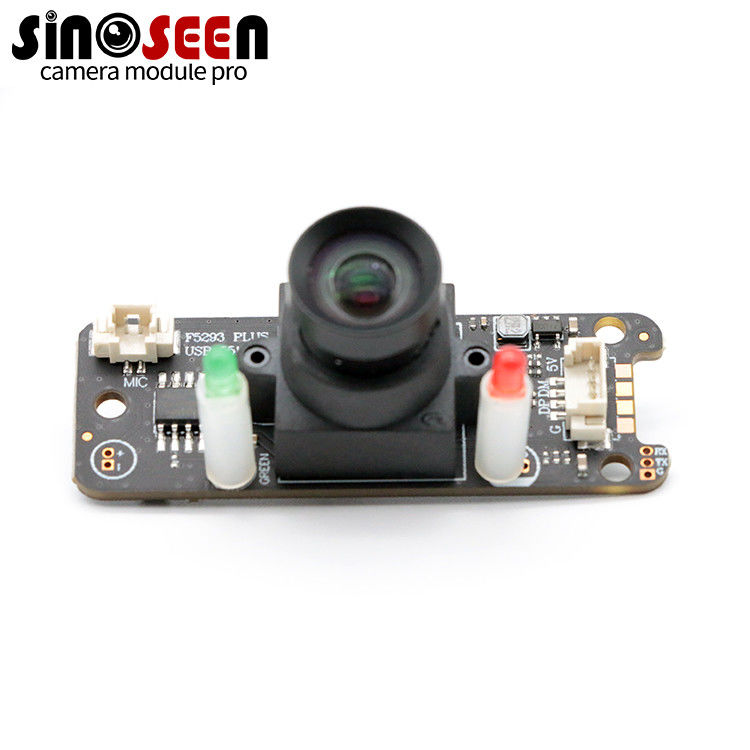

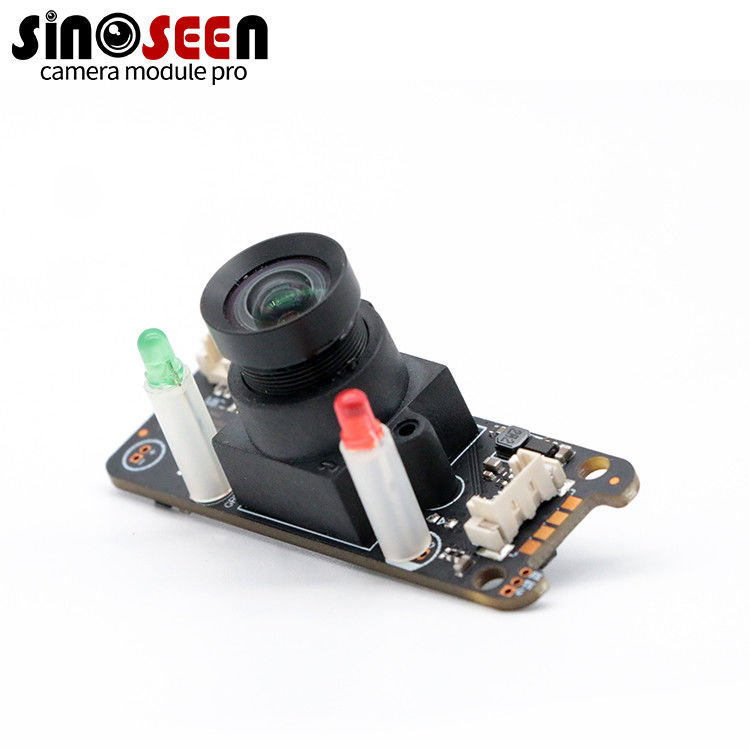

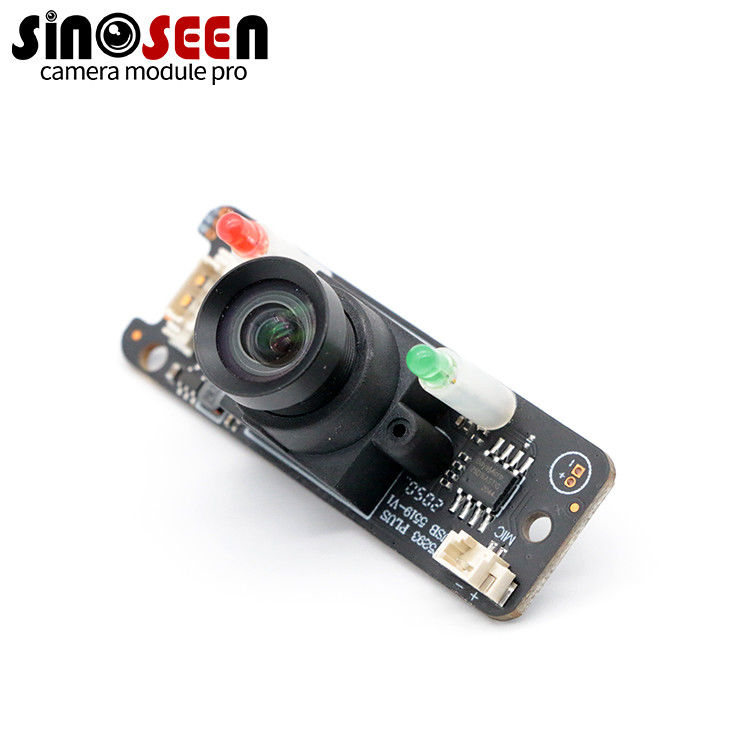

1/4 Inch High Sensitivity HD 5MP OV5640 Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-5MP-OV5640-TTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 5mp Camera Module | Sensor: | 1/4'' Omnivision OV5640 CMOS |
|---|---|---|---|
| Resolution: | 5MP 2592 (H) X 1944 (V) | Dimensions: | (customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | High Sensitivity |
| High Light: | High Sensitivity OV5640 Camera Module,1/4 Inch OV5640 Camera Module,OV5640 5MP Camera Module |
||
Product Description
5MP Usb Camera Module 1/4 Inch High Sensitivity HD With OV5640 Sensor.
Hot Selling 1/4 Inch High Sensitivity HD 5MP Usb Camera Module With OV5640 Sensor.
HD 5MP OV5640 Camera Module
Features:
Features high sensitivity and low power consumption
The maximum resolution is: 2592 (H) x 1944 (V)
Used in high-definition photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields
If you need to customize your own module, we can customize all parameters such as size, lens angle, etc. according to your requirements
| Model No | SNS-5MP-OV5640-TTP |
| Sensor | 1/4’’ Omnivision OV5640 CMOS |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592 (H) x 1944 (V) |
| Pixel Size | 1.4µm x 1.4µm |
| Image area | 3673.6μm x 2738.4μm |
| Compression format | YUYV/MJPEG |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Object distance | 5CM-infinity |
| S/N ratio | 36dB |
| Dynamic range | 68dB |
| Sensitivity | 600mV / lux-sec |
| Interface type | USB2.0 high speed |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue Definition/White balance/Exposure |
| Lens FOV | 80° |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 150mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control | Support |
| Auto White Balance | Support |
| Auto Gain Control | Support |
| Dimension | (customizable) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default 0.5M |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
