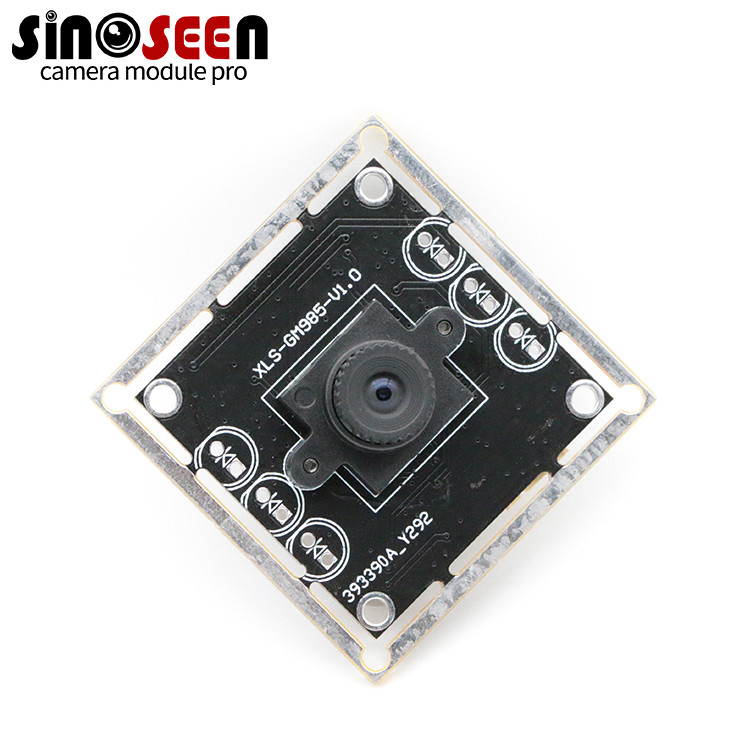

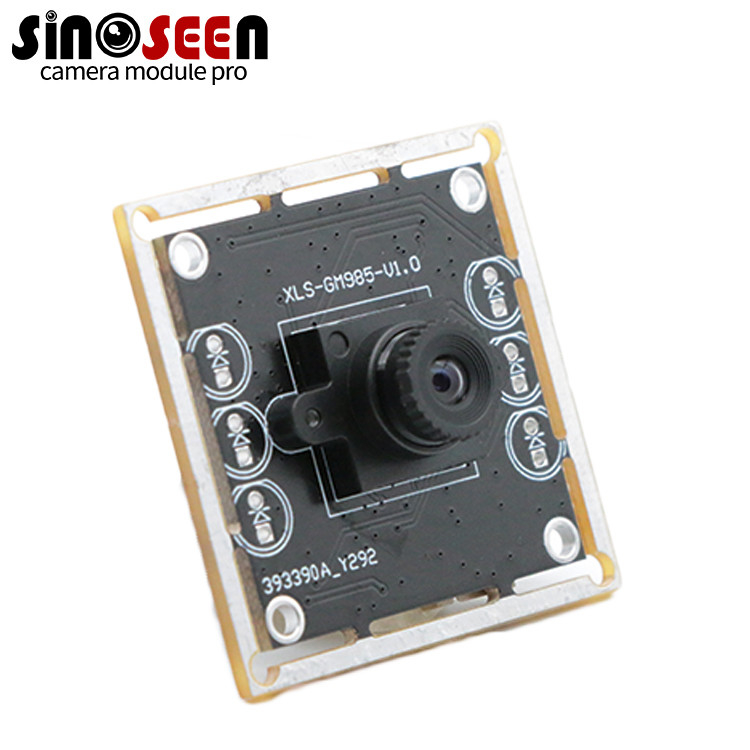

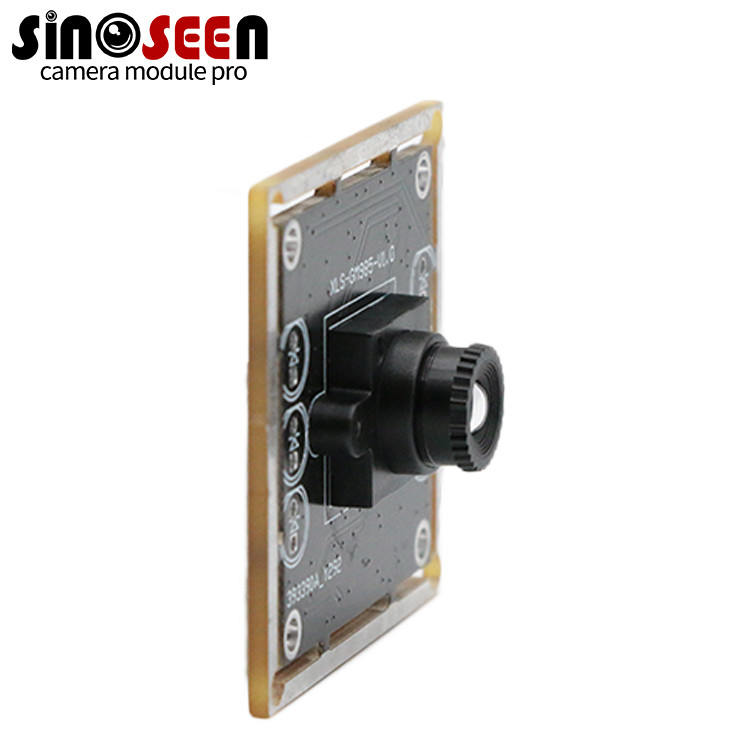

PS5268 HD 1080p USB Camera Module HDR Sensor With Low Power Rolling Shutter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM985-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | PS5268 |
|---|---|---|---|
| Resolution: | 1928(H) X 1088(V) | Dimensions: | (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Full-HD |
| Highlight: | HDR USB Camera Module,PS5268 USB Camera Module,HD 1080p OEM Camera Modules |
||
Product Description
PS5268 Full HD 1080p HDR Sensor Low Power Rolling Shutter USB Camera Module
HDR USB Camera Module
This is our newly developed mainstream specification 1080p wide dynamic range (HDR) camera module. The camera module adopts PS5268 2mp sensor, which has the characteristics of high dynamic and high definition, and can output very good picture quality. Low power design. The camera module can be widely used in IoT cameras, high-definition surveillance cameras (HD-CCTV), IP surveillance cameras, driving recorders, smart doorbells, smart rearview mirrors, etc.
|
Model No |
SNS-GM985-V1 |
|
SENSOR |
PS5268 |
|
Active array size |
1928(H) x 1088(V) |
|
Pixel size |
3.0um (H) x 3.0um (V) |
|
Shutter type |
Electronic rolling shutter (ERS) |
|
Optical format |
1/2.7-inch |
|
Lens chief ray angle |
17 degree |
|
ADC |
10-bit |
|
Sensitivity |
5800 mV/Lux-sec |
|
SNRmax |
41 dB |
|
Dynamic range |
85 dB |
|
Scan mode |
Progressive scan |
|
Input clock |
Max 50MHz |
|
Pixel clock |
Max 148.5MHz |
|
Max. frame rate |
1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps |
|
Supply voltage |
Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V |
|
Power consumption |
75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O) |
|
Operating temperature |
-30°C ~ 85°C |
