Zero Distortion USB Camera Module 1080p AR0234 For Industrial Inspection
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1045-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.6'' |
|---|---|---|---|
| Resolution: | 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Pixel Size: | 3.0μm X 3.0μm | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HD |
| Highlight: | 2 Mega Pixel OEM Camera Module,RoHS Certified USB Camera Module,Industrial Inspection OEM Camera Modules |
||
Product Description

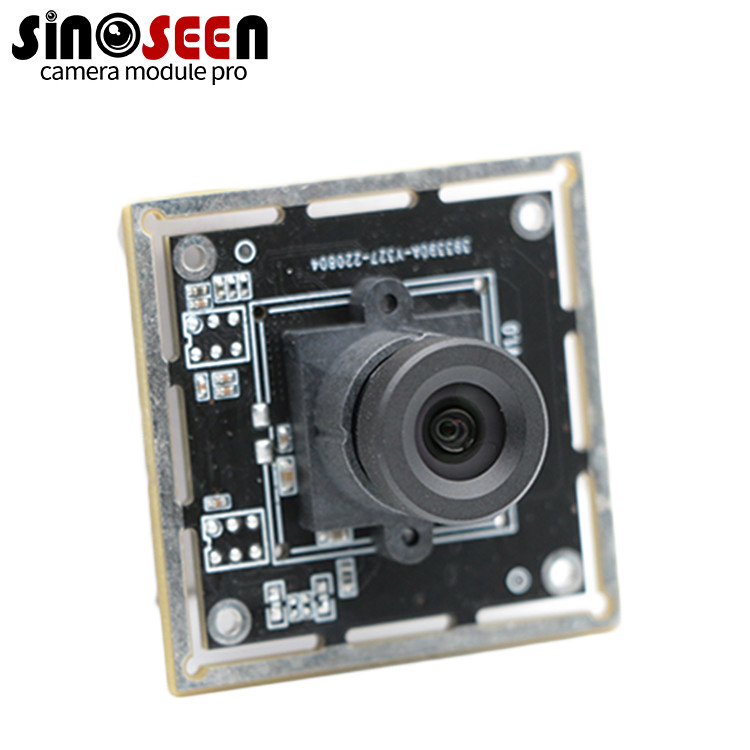

Zero Distortion 1080p AR0234 USB Camera Module for Industrial Inspection
1080p hd usb camera module
We introduce a USB2.0 camera module with AR0234CMOS sensor designed for various applications, including machine vision cameras, augmented reality (AR)/virtual reality (VR)/mixed reality (MR) heads Displays, Autonomous Mobile Robots (AMRs) and barcode readers.
It can run at up to 120 frames per second (fps) while capturing 1080p video and single-frame images. Using this 2-megapixel sensor with its industry-leading shutter efficiency, minimizes frame-to-frame distortion in high-speed scenes, and reduces motion artifacts encountered with other image sensors, resulting in crisp images.
The module's innovative pixel architecture provides the high dynamic range required to support various lighting conditions. Low noise and improved low-light response make it suitable for industrial applications such as autonomous mobile robots and machine vision cameras, and the extended operating temperature range enables deployment in challenging outdoor conditions.
Other advanced features include: programmable ROI with on-chip histogram, automatic exposure control and 5 x 5 statistical engine, fully integrated strobe illumination control, flexible row and column skip modes and horizontal and vertical mirroring, on Windowing and pixel binning.
Specification:AR0234 USB Camera Module
|
Model No |
SNS-GM1045-V1.0 |
|
Sensor |
1/2.6’’ |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
