OV7251 Global Exposure 120FPS USB Camera Module For Machine Vision Inspection
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GB3403-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/7.5" Omnivision OV7251 |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | 38mmx38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | RoHS USB Camera Module,OV7251 USB Camera Module,USB OEM Camera Modules |
||
Product Description

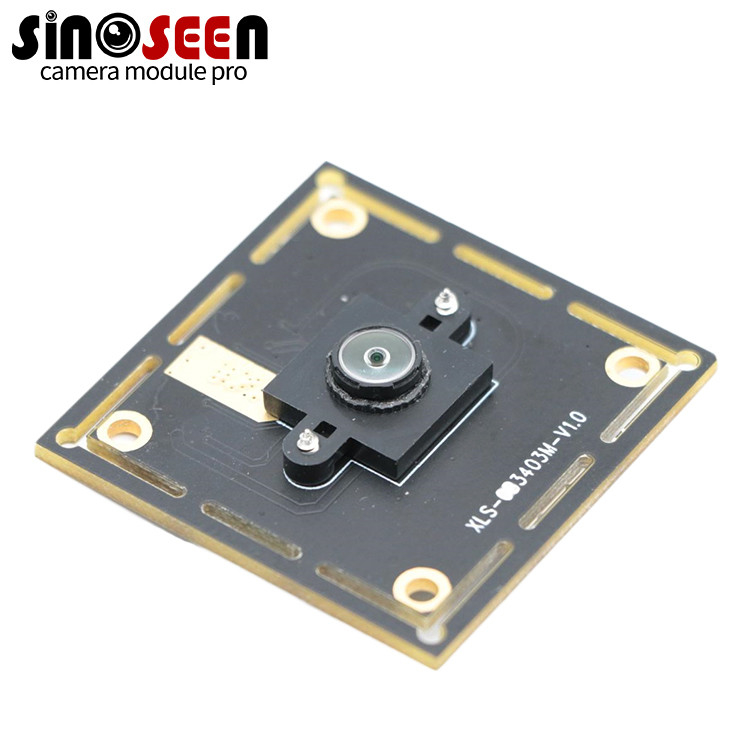

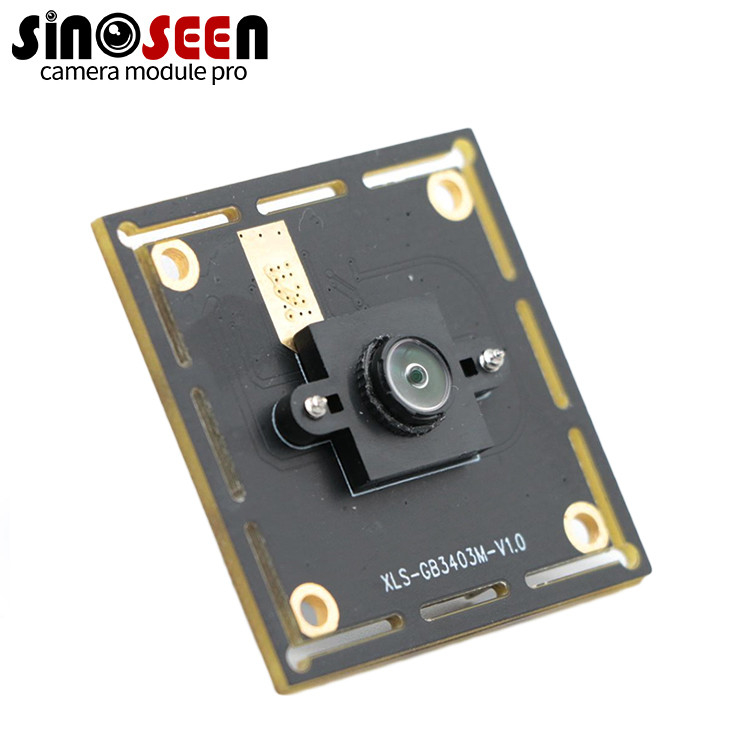

USB OV7251 Global Exposure 120FPS USB Camera Module for Machine Vision Inspection
global shutter usb Camera Module
This is a low power consumption OV7251 camera module. It uses a global shutter to reduce or eliminate unwanted image artifacts that occur with conventional rolling shutter image sensors due to motion during image capture. The module's global shutter and excellent low-light sensitivity make it useful for any application requiring gesture detection, head and eye tracking, and depth and motion detection.
The black and white sensor used in this module utilizes the industry's smallest global shutter pixel and is capable of capturing VGA (640×480) resolution video at 120 frames per second and QVGA at 180 fps with merge and skip (320×240), QQVGA (160×120) captured at 360 fps. Its high frame rate makes it an ideal solution for low-latency machine vision applications.
The compact form factor of this module makes it an attractive camera solution for applications such as iris recognition, machine vision inspection, robot vacuums, and more. Also, the low power consumption of this module makes it an ideal dedicated module for similar applications.
Specification:120FPS USB Camera Module
|
Model No |
SNS-GB3403-V1.0 |
|
Sensor |
1/7.5’’ Omnivision OV7251 |
|
Pixel |
0.3 Mega Pixel |
|
Most effective pixels |
640(H) x 480(V), 320(H) x 240(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
1968um(H) x 1488um (V) |
|
Compression format |
MJPG |
|
Resolution & Frame rate |
640x480 @ 120 fps 320x240@ 120fps 320x120 @ 120fps |
|
Shutter Type |
Global Shutter |
|
CFA (Chroma) |
Mono, Black/White |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
69.6dB |
|
Sensitivity |
10800mV / lux-sec |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition//White balance |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (customizable) |
|
Storage temperature |
-30°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
