Imx335 Sensor Camera Module 5MP 1080P 60FPS USB3.0 For Security Monitoring
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM335-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 5mp Camera Module | Sensor: | 1/2.8" IMX335 |
|---|---|---|---|
| Resolution: | 1920(H)X1080(V) | Dimensions: | (customizable) |
| Lens FOV: | 150°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB3.0 | Feature: | WDR |
| High Light: | Security Monitoring Camera Module 5MP,USB3.0 Camera Module 5MP,60FPS 5MP Camera Module |
||
Product Description

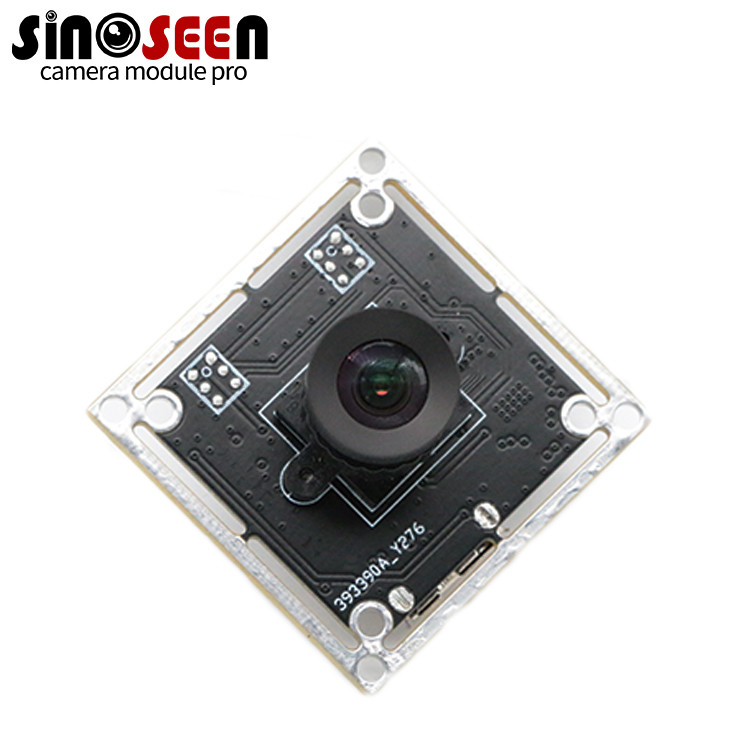

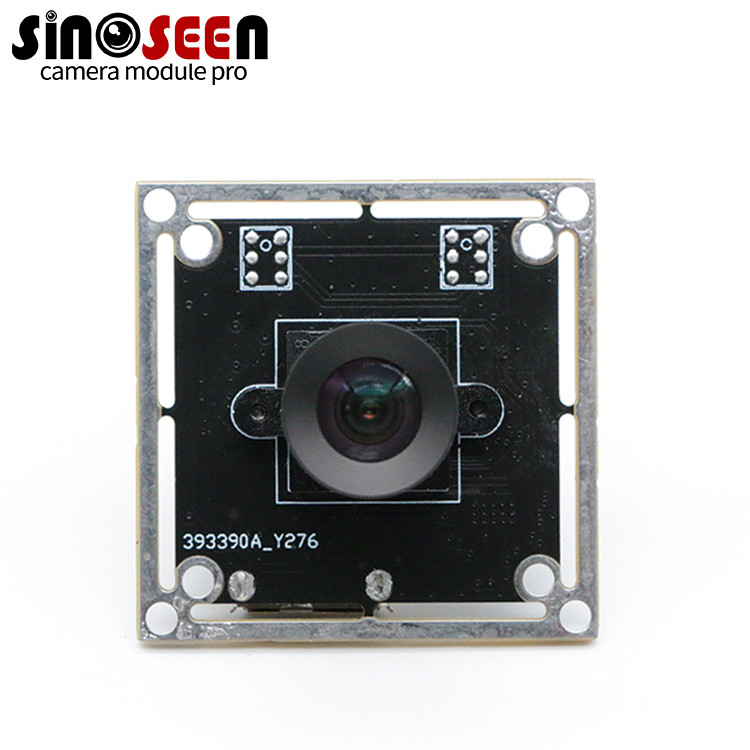

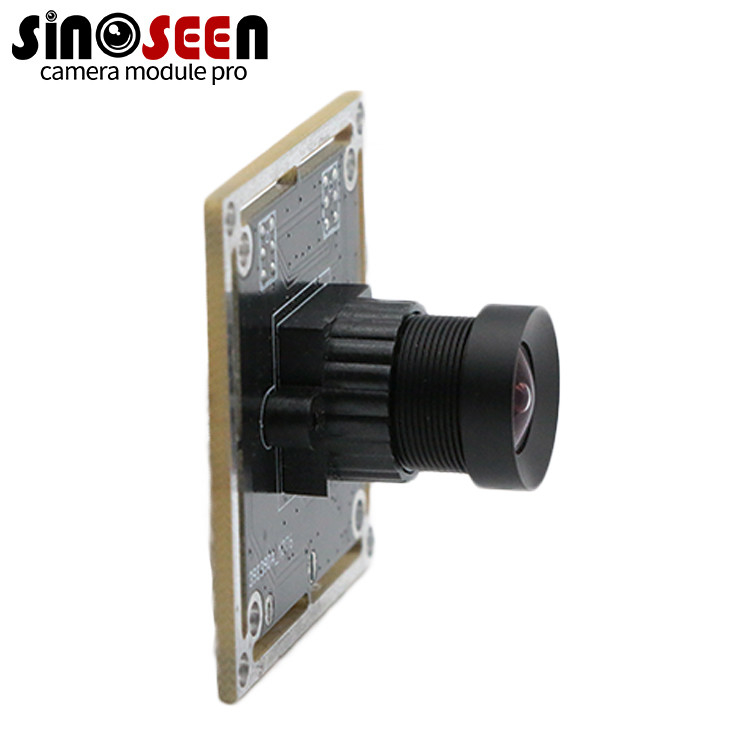

Imx335 Sensor 5MP 1080P 60FPS USB3.0 Camera Module For Security Monitoring
5MP 1080P Camera Module
This is a 5mp sensor camera module. It's a 1/2.8-inch back-illuminated CMOS sensor that can capture images with a resolution of up to 5 megapixels. This module is widely used in security cameras, surveillance systems, and other applications that require high-quality images.
And USB3.0 is a high-speed interface that provides fast data transfer rates and is often used in camera modules for industrial and scientific applications. Both are ideal for security surveillance applications requiring high quality images and fast frame rates.
|
Sensor
|
1/2.8" IMX335
|
|
Pixel
|
5 Mega Pixel
|
|
Most effective pixels
|
1920(H)X1080(V)
|
|
Pixel Size
|
2.0μm x2.0μm
|
|
Compression format
|
MJPG / YUY2
|
|
Resolution
|
see above
|
|
Frame rate
|
see above
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
S/N ratio
|
TdB
|
|
Dynamic range
|
TdB
|
|
Interface type
|
USB3.0
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens
|
Focal length: 3.6mm
|
|
|
FOV:D180° H180°V180°F/N(2.0)
|
|
|
Thread Size: M12*P0.5
|
|
Audio frequency
|
Support
|
|
microphone
|
Built-in
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 200mA
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Not Supported
|
|
Storage temperature
|
-20～80℃
|
|
Operating temperature
|
0～60℃
|
|
USB cable length
|
Default
|
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
