OV7251 USB Camera Module Global Exposure 120FPS For Machine Vision Inspection
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GB3403-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/7.5" Omnivision OV7251 |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | 38mmx38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 120FPS USB Camera Module,OV7251 OEM Camera Modules,Vision Inspection OEM Camera Modules |
||
Product Description

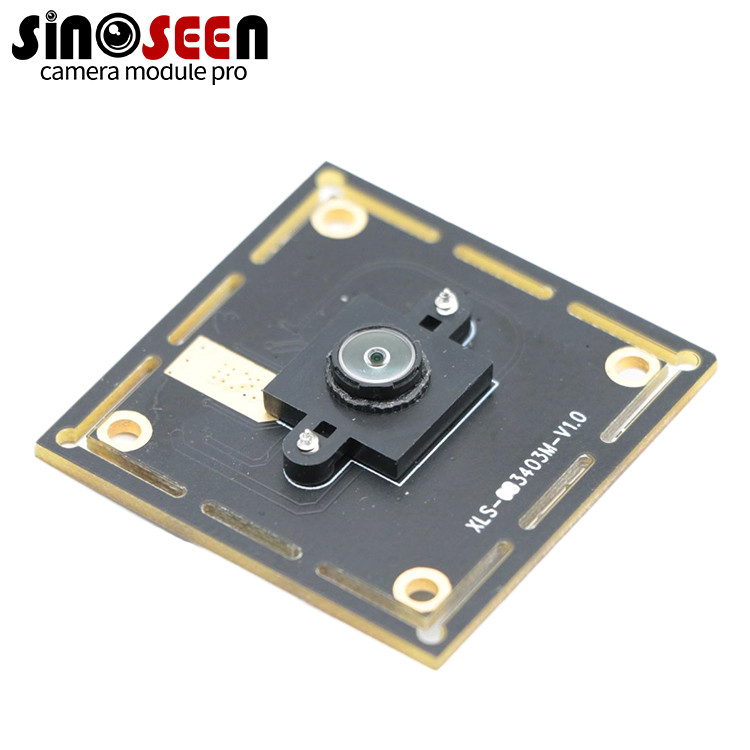

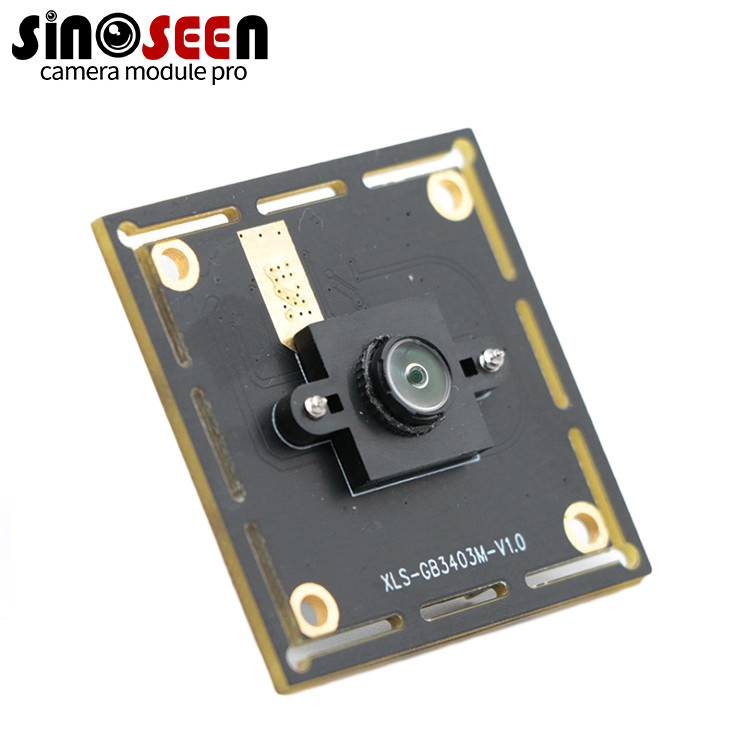

USB OV7251 Global Exposure 120FPS USB Camera Module for Machine Vision Inspection
global shutter usb Camera Module
This is a USB camera module designed for machine vision inspection applications. It features a global shutter sensor for high-speed imaging without motion artifacts, ideal for capturing fast-moving subjects.
With a maximum frame rate of 120 frames per second (FPS), the mod can capture fast-moving objects with high precision. It also has a resolution of 640 x 480 pixels to provide high quality images for inspection applications.
The USB interface can be easily integrated with various systems, and the camera module is compatible with Windows and Linux operating systems. It also supports various image processing functions such as automatic exposure, white balance and color correction, enabling users to capture high-quality images under different lighting conditions.
Specification:120FPS USB Camera Module
Model No | SNS-GB3403-V1.0 |
Sensor | 1/7.5’’ Omnivision OV7251 |
Pixel | 0.3 Mega Pixel |
Most effective pixels | 640(H) x 480(V), 320(H) x 240(V) |
Pixel Size | 3.0µm x 3.0µm |
Image area | 1968um(H) x 1488um (V) |
Compression format | MJPG |
Resolution & Frame rate | 640x480 @ 120 fps |
Shutter Type | Global Shutter |
CFA (Chroma) | Mono, Black/White |
Focus type | Fixed focus |
S/N ratio | 38dB |
Dynamic range | 69.6dB |
Sensitivity | 10800mV / lux-sec |
Interface type | USB2.0 high speed |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition//White balance |
Lens | Focal length: 3.6mm |
| Lens Size: 1/4 inch |
| FOV: 90° |
| Thread Size: M12*P0.5 |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 120mW |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | 38mm*38mm (customizable) |
Storage temperature | -30°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
