Super Tiny 120FPS 0.3MP Monochrome Camera Module with GC0308 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-0.3MP-GC0308-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/6.5’’ Galaxycore GC0308 CMOS |
|---|---|---|---|
| Resolution: | 0.3mp 640(H) X 480(V) | Dimensions: | 25MM X 12MM |
| Lens FOV: | 50°（Optional） | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Small |
| High Light: | Monochrome OEM Camera Modules,Super Tiny Monochrome Camera Module,GC0308 Sensor OEM Camera Modules |
||
Product Description
Super Tiny OEM Camera Modules Monochrome 120FPS 0.3MP With GC0308 Sensor

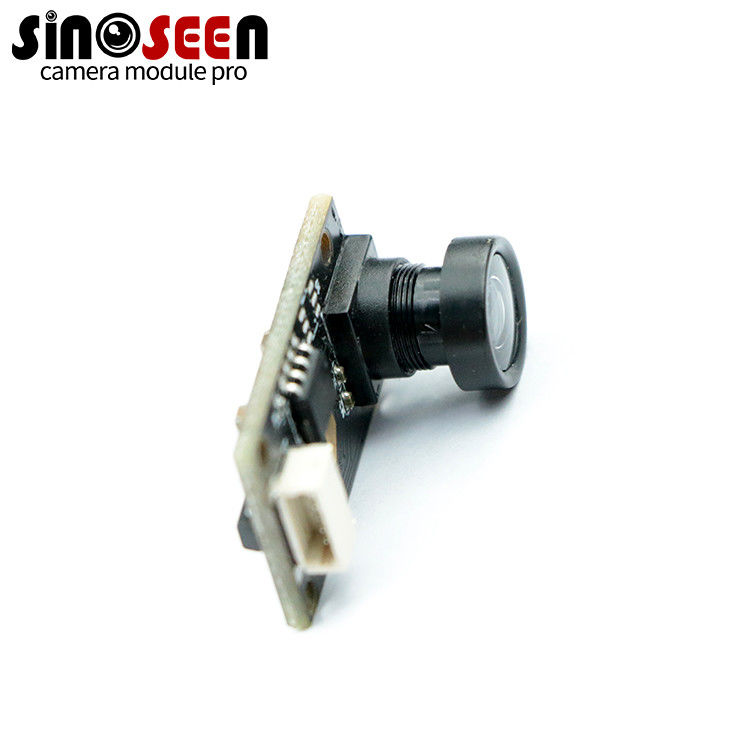

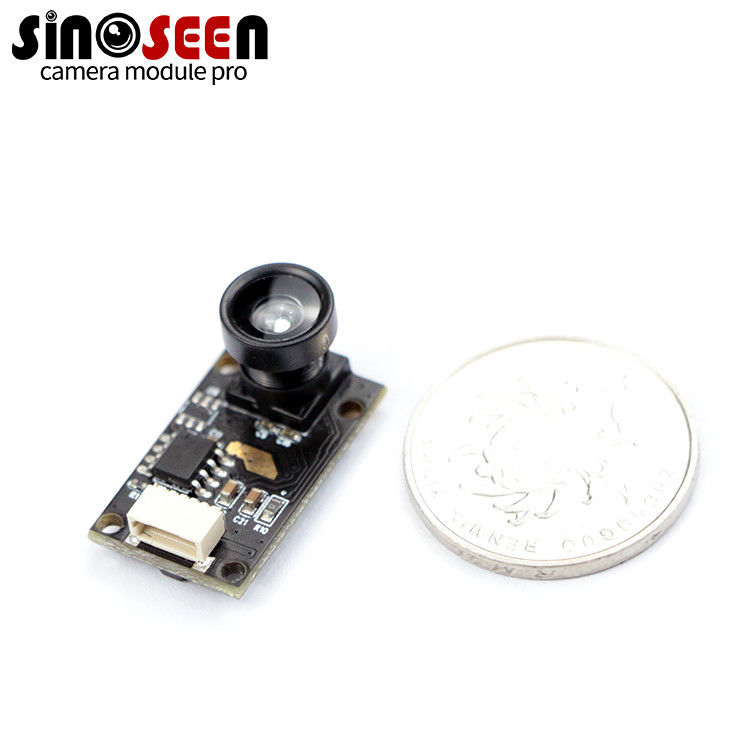

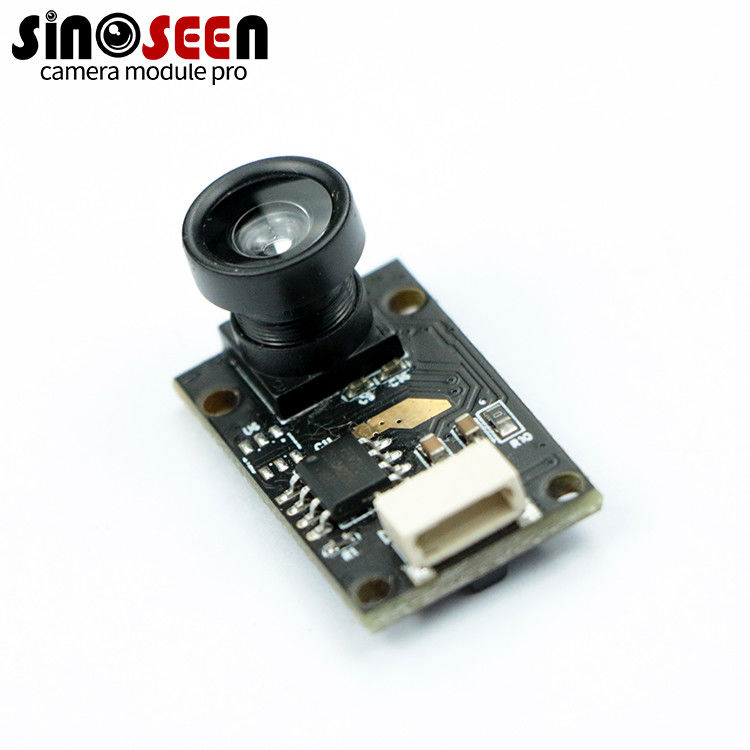

Super tiny 25MMx12MM Monochrome 120FPS high frame rate 0.3MP USB camera module with GC0308 sensor
OEM Camera Module
This is a camera module that uses the Galax GC0308 image sensor to capture monochrome images at 0.3 megapixel (VGA) resolution. Its small and compact design makes it suitable for use in applications where space is limited.
The camera module is capable of capturing images at a frame rate of 120 frames per second (FPS), which is a high frame rate for a camera of this size. This makes it suitable for applications that need to capture fast motion, such as robotics or industrial monitoring systems.
The monochrome imaging capability of the camera module can be used in applications such as machine vision or barcode scanning that do not require color information. The compact size of the camera module also makes it suitable for devices with limited space.
Specification
|
Model No
|
SNS-0.3MP-GC0308-V1.0
|
|
Sensor
|
1/6.5’’ Galaxycore GC0308 CMOS
|
|
Pixel
|
0.3 Mega Pixel
|
|
Most effective pixels
|
640(H) x 480(V)
|
|
Pixel Size
|
3.4µm x 3.4µm
|
|
Chroma
|
Monochrome, Black/white image
|
|
Compression format
|
MJPEG / YUV2 (YUYV)
|
|
Resolution & Frame rate
|
See above
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
S/N ratio
|
49dB
|
|
Dynamic range
|
55dB
|
|
Sensitivity
|
3300mV / lux-sec
|
|
Interface type
|
USB2.0
|
|
Lens FOV
|
50°
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Microphone
|
Not supported
|
|
Audio frequency
|
Optional
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 70mW
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Support
|
|
Dimension
|
25MM x 12MM
|
|
Storage temperature
|
-20°C to 70°C
|
|
Operating temperature
|
0°C to 60°C
|
|
USB cable length
|
Default
|
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
