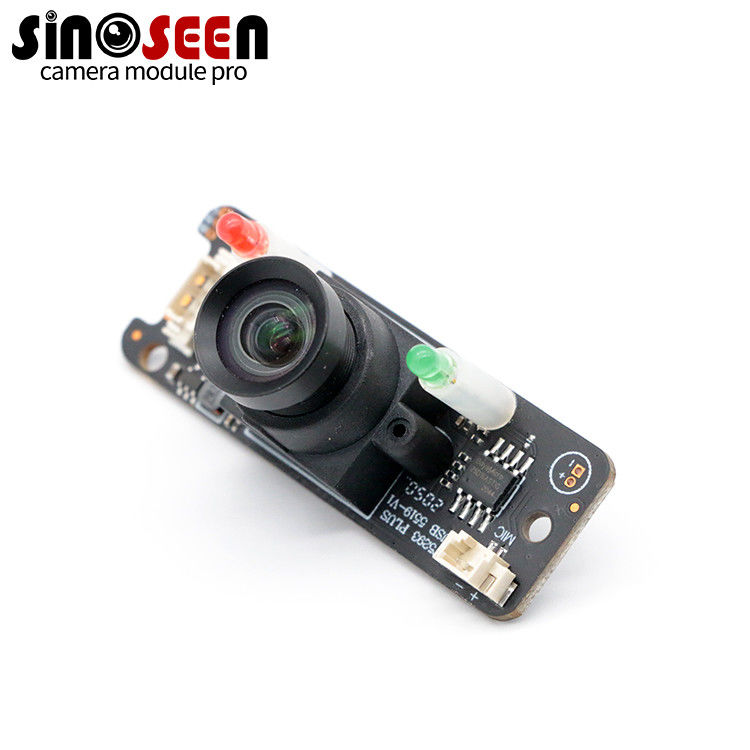

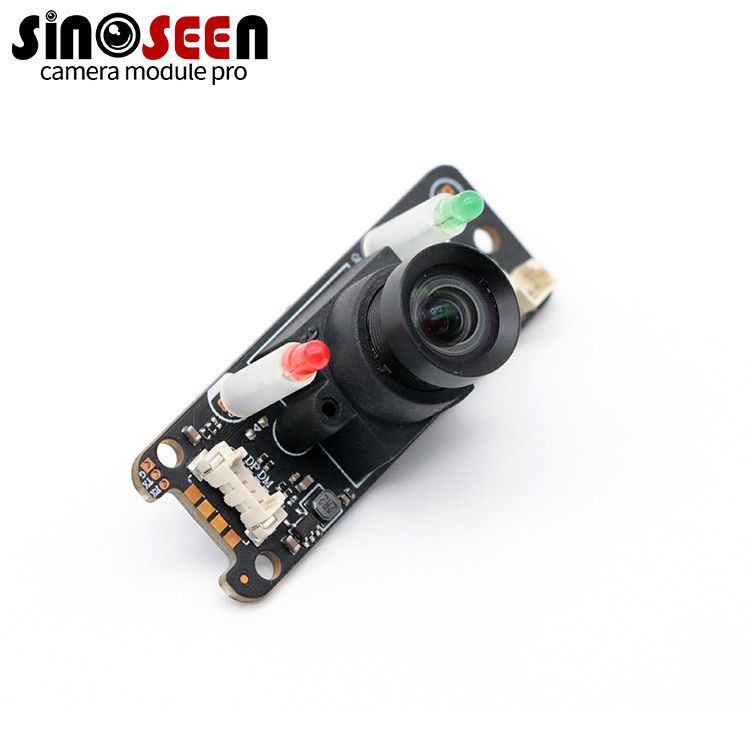

5MP Camera Module with OV5640 for Video Surveillance Video Conference

5MP Camera Module with OV5640 for Video Surveillance Video Conference

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-5MP-OV5640-TTP

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 5mp Camera Module Sensor: 1/4'' Omnivision OV5640 CMOS
Resolution: 5MP 2592 (H) X 1944 (V) Dimensions: (customizable)
Lens FOV: 80°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: High Sensitivity
High Light:

Video Surveillance 5MP Camera Module

,

OV5640 CMOS Camera Module

,

Video Conference OV5640 Camera Module

Product Description

5MP Usb Camera Module 1/4 Inch High Sensitivity HD With OV5640 Sensor.

Hot Selling 1/4 Inch High Sensitivity HD 5MP Usb Camera Module With OV5640 Sensor.



HD 5MP OV5640 Camera Module

Features:

Features high sensitivity and low power consumption

The maximum resolution is: 2592 (H) x 1944 (V)

Used in high-definition photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields

If you need to customize your own module, we can customize all parameters such as size, lens angle, etc. according to your requirements


Specification
Model No SNS-5MP-OV5640-TTP
Sensor 1/4’’ Omnivision OV5640 CMOS
Pixel 5 Mega Pixel
Most effective pixels 2592 (H) x 1944 (V)
Pixel Size 1.4µm x 1.4µm
Image area 3673.6μm x 2738.4μm
Compression format YUYV/MJPEG
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Object distance 5CM-infinity
S/N ratio 36dB
Dynamic range 68dB
Sensitivity 600mV / lux-sec
Interface type USB2.0 high speed
Adjustable parameter Brightness/Contrast/Color saturation/Hue
Definition/White balance/Exposure
Lens FOV 80°
Power supply USB BUS POWER
Power consumption DC 5V, 150mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control Support
Auto White Balance Support
Auto Gain Control Support
Dimension (customizable)
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
USB cable length Default 0.5M
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
