GC5035 5MP Autofocus MIPI Camera Module For Mobile With Adjustable Parameters
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS51622-V1.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 5mp Camera Module | Sensor: | 1/5 Inch |
|---|---|---|---|
| Resolution: | 5MP 2592(H) X 1944(V) | Dimensions: | (customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Auto Focus |
| Interface: | Mipi Camera Module | Feature: | High-definition |
| High Light: | GC5035 MIPI Camera Module,Adjustable Parameters MIPI Camera Module,Mobile 5MP Camera Module |
||
Product Description

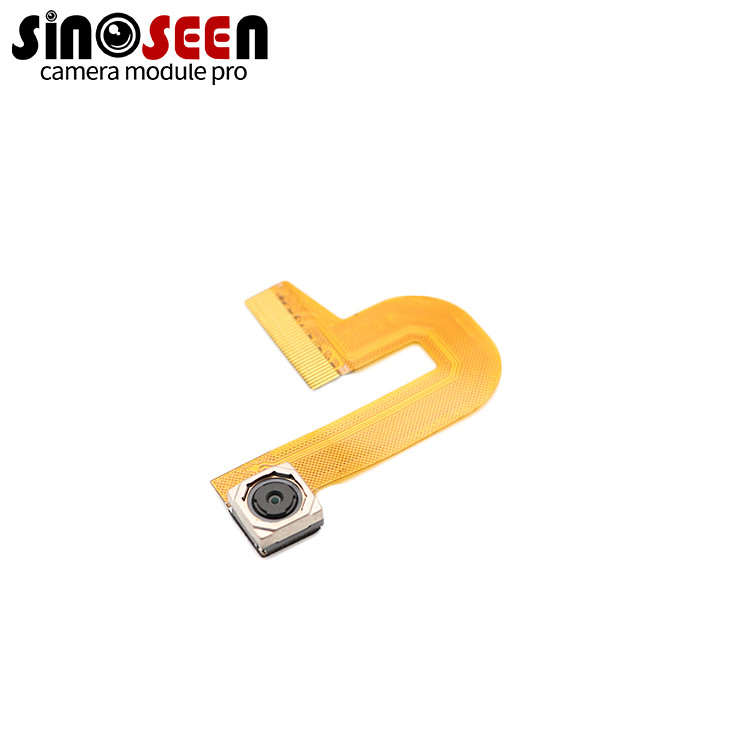

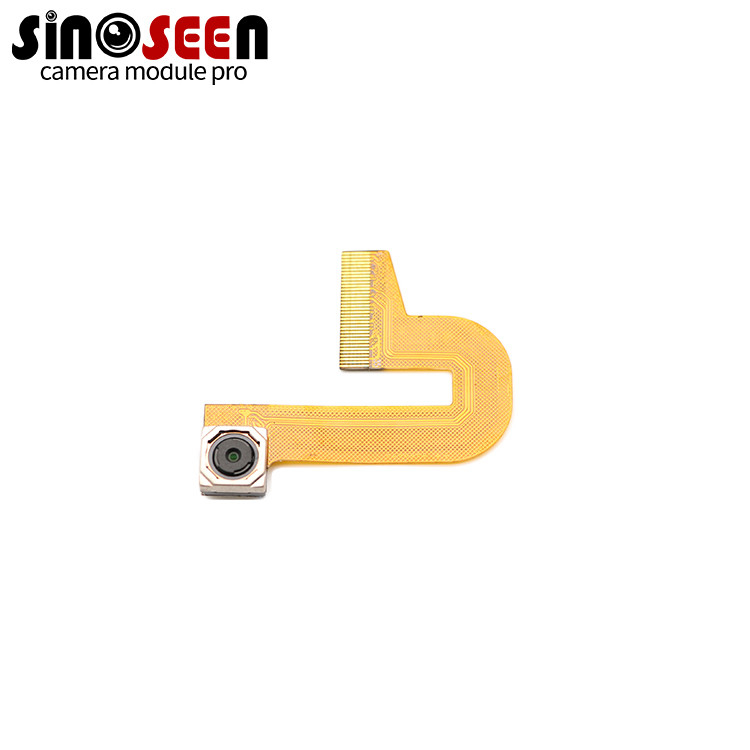

GC5035 5MP autofocus MIPI camera module for mobile applications with adjustable parameters
GC5035 5MP mipi camera module
This is a 5MP autofocus MIPI camera module designed for mobile applications. Unlike the previous 0.3MP fixed-focus camera module, this one offers higher resolution and autofocus. This solution provides more detailed and higher quality images than a 0.3MP camera module. The camera module offers adjustable parameters that allow users to customize various settings to optimize image quality. These parameters may include exposure, white balance, saturation, contrast, and other image processing settings. Adjusting these parameters can help improve overall image quality and achieve the desired visual effect. This camera module is designed for mobile applications, making it suitable for integration into smartphones and other portable devices. With its higher resolution and autofocus capabilities, it enables users to capture detailed photos and videos with mobile devices.
| Model No |
SNS51622-V1.1 |
| Sensor | 1/5’’ inch |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.2µm x 1.2µm |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 72 dB @ 8x gain |
| Sensitivity | 690mV / lux-sec |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
| Lens | TTL: 23.89MM |
| Lens Size: 1/3 inch | |
| DFOV: 80° | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
