IMX335 Sensor 30FPS 5MP USB Camera Module For Live Video
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1001-V1.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.8" SONY IMX335 CMOS |
|---|---|---|---|
| Resolution: | 5MP 2592(H)X1944(V) | Dimensions: | (customizable) |
| Lens FOV: | (optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Starvis |
| High Light: | IMX335 Sensor USB Camera Module,Live Video IMX335 Camera Module,30FPS 5MP Camera Module |
||
Product Description

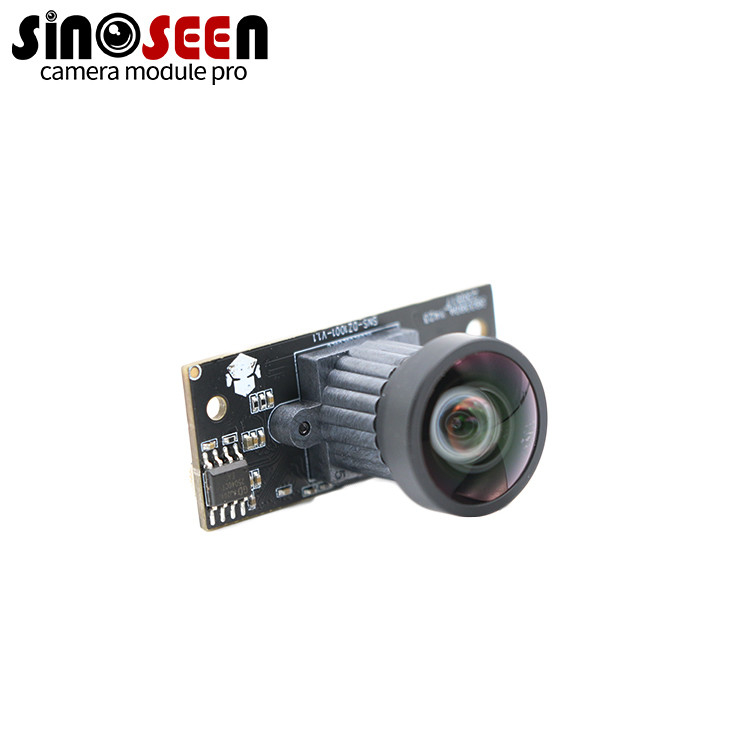

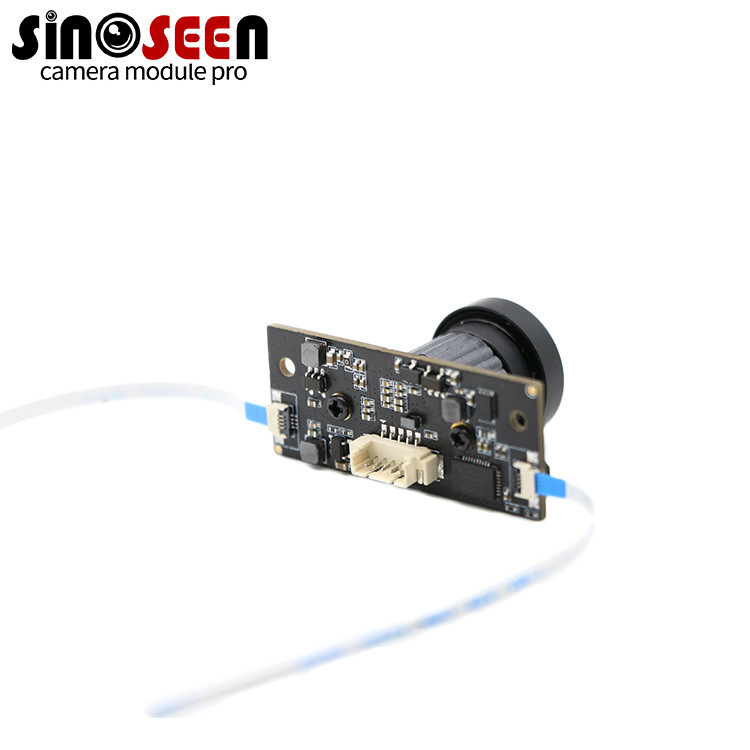

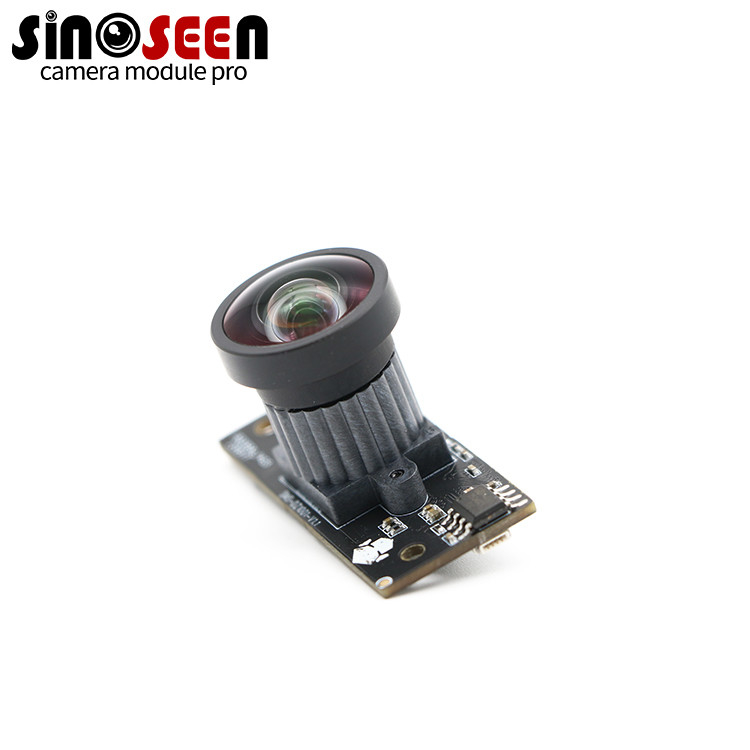

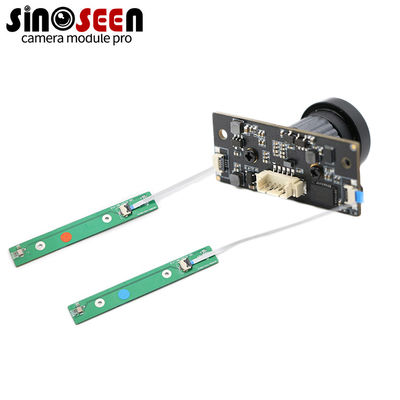

IMX335 sensor 30FPS 5MP USB camera module for live video
IMX335 USB Camera module
The IMX335 in this camera module is a popular image sensor developed by Sony. It is commonly used in various applications including USB camera modules for live video. The module offers a resolution of 5 megapixels (2592 x 1944) and supports frame rates of up to 30 frames per second (FPS) at 1080p resolution. The USB camera module with integrated IMX335 sensor is easily connected to a computer or other devices with a USB port. Featuring a compact form factor and plug-and-play functionality, they can be conveniently used for live video streaming, video conferencing, surveillance, and other applications. It can also provide the best image performance in ordinary scenes, and can also improve the image quality in low-light scenes. It can be widely used in live video and conference video all-in-one machines, monitoring, education booths, industrial inspections, various identification comparisons, ATMs Image machine vision fields such as machines and access control gates.
Specification:Face Recognition USB Camera Module
|
Model No |
SNS-DZ1001-V1.1 |
|
Sensor |
1/2.8’’ SONY IMX335 CMOS |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
1920(H)X1080(V) |
|
Pixel Size |
2.0µm x 2.0µm |
|
Chroma |
Color |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Microphone |
Built-in |
|
Dynamic range |
72dB |
|
Sensitivity |
>= 2000mV |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6MM |
|
|
Lens Size: 1/2.8 inch |
|
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 150mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (compatible with 32mm*32mm) |
|
Storage temperature |
-20~80℃ |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
