Global Exposure 120FPS OV7251 USB Camera Module For Machine Vision Inspection
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GB3403-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/7.5" Omnivision OV7251 |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | 38mmx38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 120FPS USB Camera Module,OV7251 USB Camera Module |
||
Product Description
Global Exposure 120FPS OV7251 USB Camera Module For Machine Vision Inspection
global shutter usb Camera Module

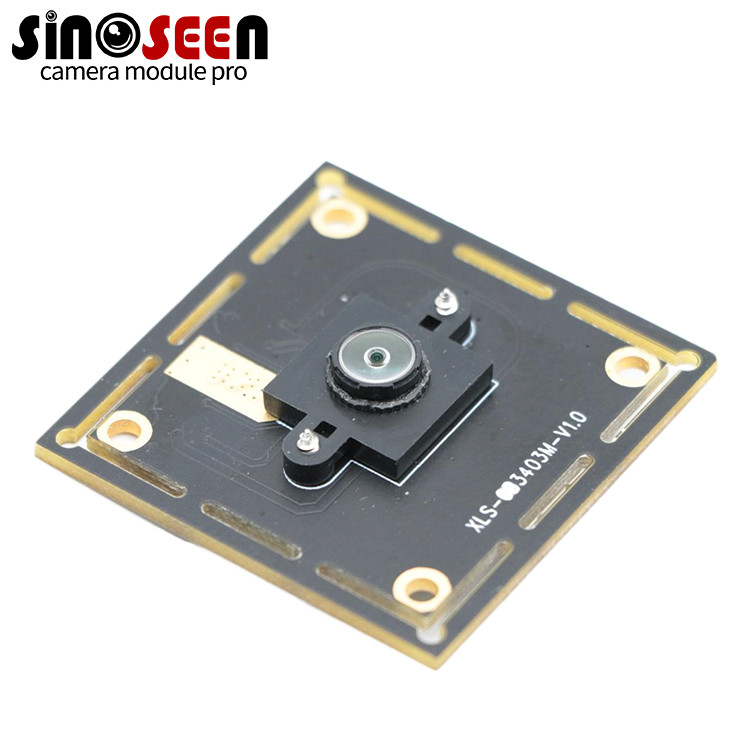

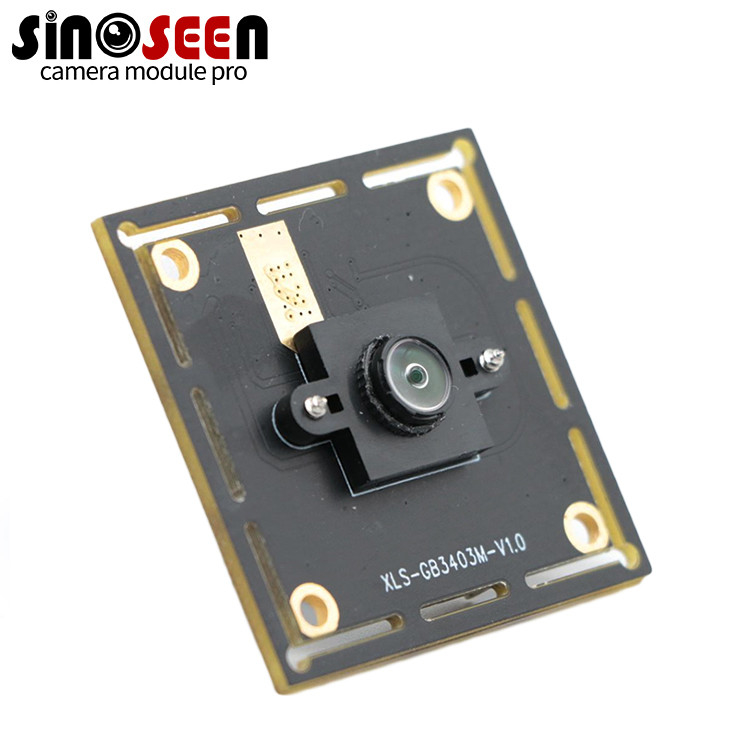

This camera module is equipped with OV7251 sensor. The sensor offers high sensitivity and excellent image quality for precise inspection and detection of fine details in machine vision applications. The camera module uses global exposure technology that allows all pixels in the image sensor to be exposed simultaneously. This eliminates the rolling shutter effect and ensures accurate capture of fast-moving objects without distortion, making it suitable for machine vision applications where precise timing is critical.
Specification
Model No | SNS-GB3403-V1.0 |
Sensor | 1/7.5’’ Omnivision OV7251 |
Pixel | 0.3 Mega Pixel |
Most effective pixels | 640(H) x 480(V), 320(H) x 240(V) |
Pixel Size | 3.0µm x 3.0µm |
Image area | 1968um(H) x 1488um (V) |
Compression format | MJPG |
Resolution & Frame rate | 640x480 @ 120 fps |
Shutter Type | Global Shutter |
CFA (Chroma) | Mono, Black/White |
Focus type | Fixed focus |
S/N ratio | 38dB |
Dynamic range | 69.6dB |
Sensitivity | 10800mV / lux-sec |
Interface type | USB2.0 high speed |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition//White balance |
Lens | Focal length: 3.6mm |
| Lens Size: 1/4 inch |
| FOV: 90° |
| Thread Size: M12*P0.5 |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 120mW |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | 38mm*38mm (customizable) |
Storage temperature | -30°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
