Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-SEE8820-V1.0
| Attribute | Value |
|---|---|
| Model No | SNS-SEE8820-V1.0 |
| Sensor target surface | 1/5' inch |
| Most effective pixels | 800H*600V |
| Pixel Size | 1.75 um * 1.75 um |
| Image bit depth | 10 bit |
| Maximum FrameRates | 30FPS |
| Module resolution | 176 LW/PH |
| Effective focal length (fixed focus lens) | 1.928 mm |
| Imaging distance | 423 ~ Inf mm |
| Wavelength range | 380~980 nm |
| Spectral resolution | 50nm |
| Operating temperature | -10°C to 25°C |
The SEE8820 adopts innovative technology to obtain multispectral image information through a single exposure, achieving multispectral image acquisition capability of up to 30fps.

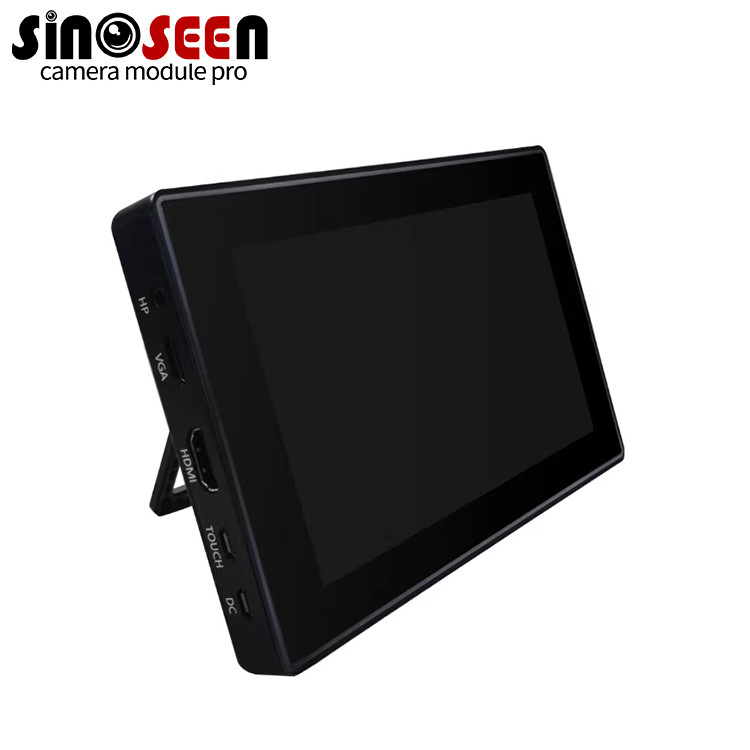

The device features a built-in NVIDIA JETSON platform with high-speed processing capabilities for real-time recovery. It comes equipped with multiple external data interfaces (USB3.0, HDMI, WLAN) for seamless communication with PCs and other host computers.
Includes data acquisition, spectral reconstruction software, and multispectral application analysis software to meet one-click application requirements.
Unlike multi-camera or narrow-band filter spectral imaging mechanisms, this module supports continuous spectral detection output to maximize retention of detailed information within the spectral response range.
The self-developed spectral sensor is based on mature CMOS technology, using mainstream brand mass production products to ensure excellent product consistency. The minimalist design implements spectral domain modulation and electrical signal conversion in a single chip.
