Snapshot Visible-Near Infrared Multispectral Imaging Camera with 30fps USB3.0
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SEE8820-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 3-4weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Model No: | SNS-SEE8820-V1.0 | Sensor Target Surface: | 1/5' Inch |
|---|---|---|---|
| Most Effective Pixels: | 800H*600V | Pixel Size: | 1.75 Um * 1.75 Um |
| Image Bit Depth: | 10 Bit | Maximum FrameRates: | 30FPS |
| Module Resolution: | 176 LW/PH | Effective Focal Length (fixed Focus Lens): | 1.928 Mm |
| Imaging Distance: | 423 ~ Inf Mm | Wavelength Range: | 380~980 Nm |
| Spectral Resolution: | 50nm | Operating Temperature: | -10°C To 25°C |
Product Description
Snapshot Visible-Near Infrared Multispectral Imaging Camera with 30fps USB3.0

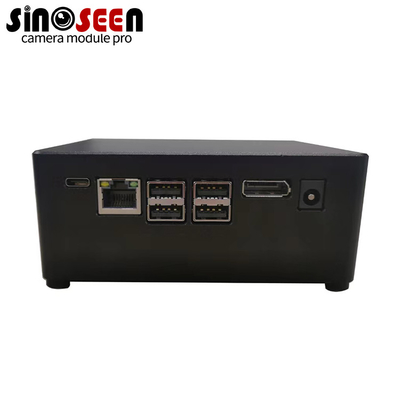

SEE8820 adopts innovative technology to obtain multispectral image information through a single exposure, thus achieving multispectral image acquisition capability of up to 30fps. The device has a built-in NVIDIA JETSON platform, has high-speed processing capabilities, can perform high-speed real-time recovery, and is equipped with a variety of external data interfaces (USB3.0, HDMI, WLAN, etc.), which can easily communicate with PC and other host computers.
The device is equipped with data acquisition, spectral reconstruction software and multispectral application analysis software to meet one-click application requirements. Unlike multi-camera or narrow-band filter spectral imaging mechanisms, this module supports continuous spectral detection output to maximize the retention of detailed information within the spectral response range.
The self-developed spectral sensor is based on mature CMOS technology, and the device selection adopts mainstream brand mass production products to ensure good product consistency. The minimalist product design, a single chip realizes the modulation of the incident spectral domain and the conversion of the projection signal from the spectral domain to the electrical domain. Compared with the spectral scheme based on the principle of spatial light dispersion, which requires a combination of multiple precision optical devices, it greatly reduces the complexity and improves the reliability. Application scenarios: agriculture, forestry, environmental testing, detection and other industry applications; industrial online detection; computer vision applications.
